SMTW MGBA 1420 Plain Cylindrical Grinder, 10" Swing, 19" Between Centers, Variable Speed Workhead, Tailstock Dresser, Table Dresser, ID Attachment On Back Side
| Swing | 10" | 254 mm |
| Centers | 19" | 482.6 mm |
| Plain or Angle Head | Plain | Plain |
| Grinding Wheel Dia. | 14" | 355.6 mm |
| Wheel Power | 5 hp | 3.7 kW |
| Wheel Speed | 2,650 RPM | 2,650 RPM |

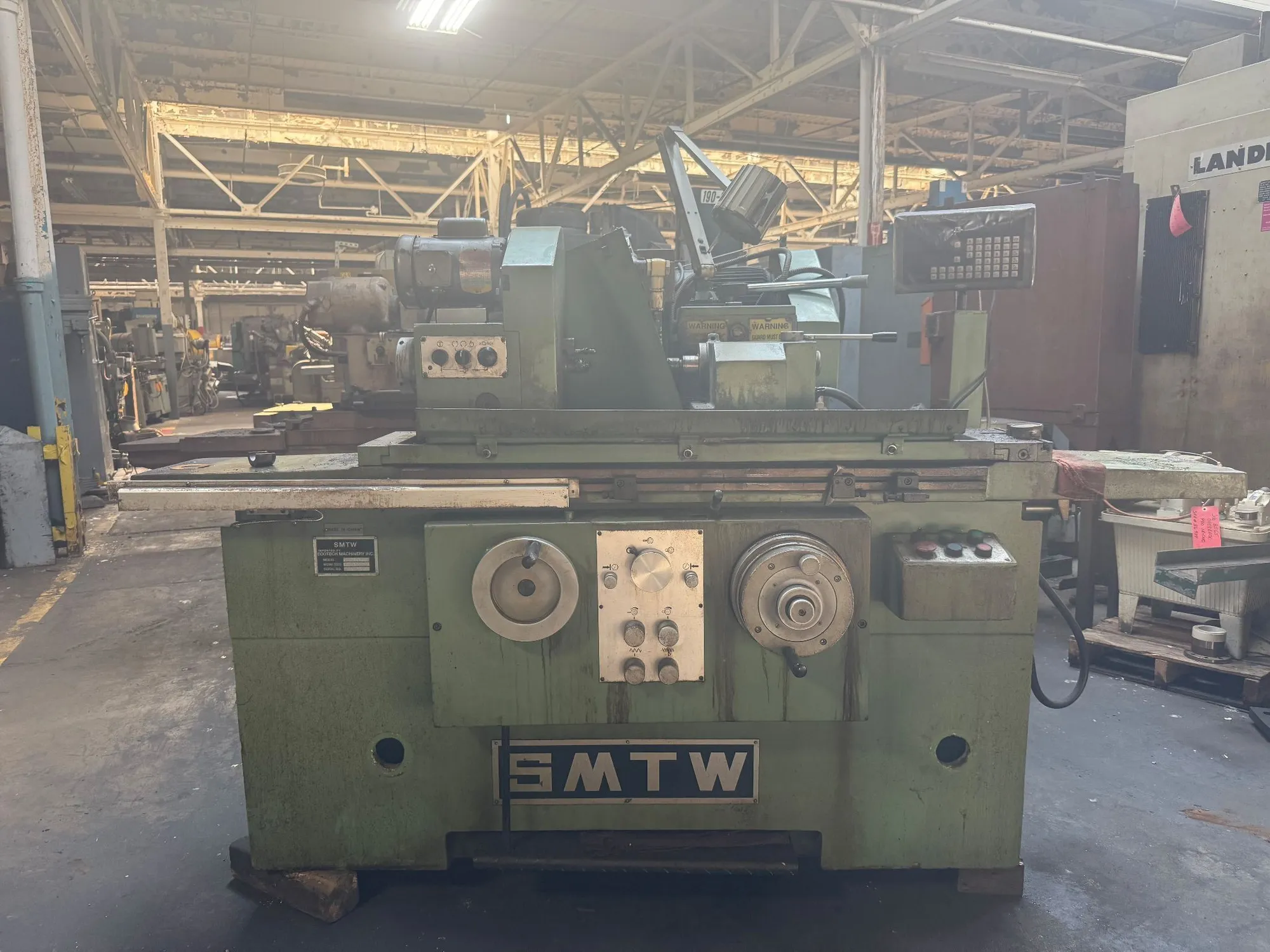

SMTW MGBA 1420 PLAIN CYLINDRICAL GRINDER
S/N 0853
Specifications
Distance Between Centers......................19”
Swing.........................................10”
Grinding Wheel Diameter.......................14”
Wheelhead Power...............................5 HP
Wheelhead Swivel Range........................345 Degrees
Max Wheelhead Speed...........................2650 RPM
Table Swivel Range............................15-16 Degrees
Table Rapid Traverse Rate.....................180 IPM
Automatic Infeed On Table Reversal............0-1”
Equipped With
Internal spindle.
Specifications are deemed accurate, however, subject to verification or prior sale.
