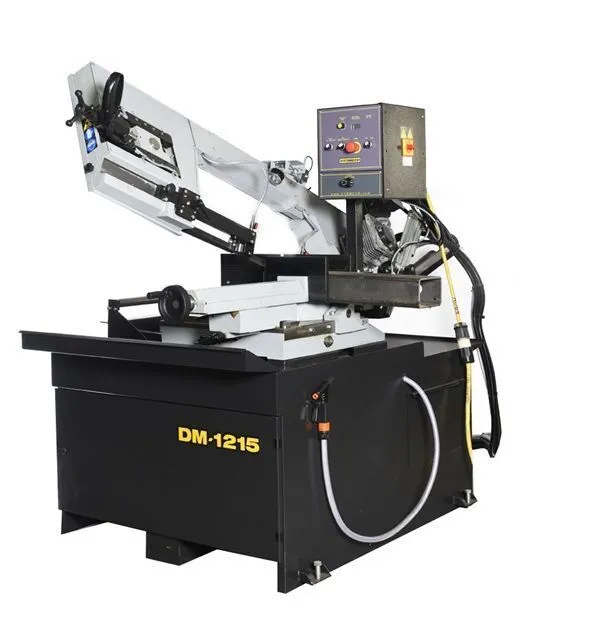

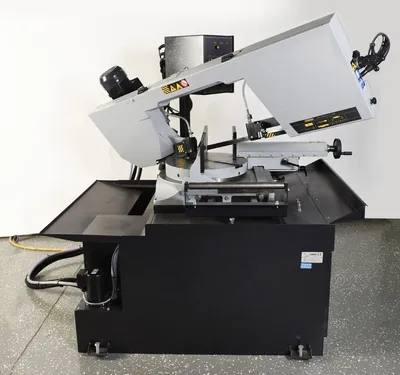

NEW HYD-MECH DM-1215

This versatile saw saves operator set-up time and its compact design makes it ideal for use in tight working spaces. A rotating table with single cut line allows head and blade groove to move together for smooth, accurate mitering. From user-friendly operator controls, to easily accessible electrical panels and cabinets, the DM-1215 double miter band saw is solidly built to provide maximum productivity.

Specifications (subject to buyer verification):
Capacity 90°: Rectangular: 10 1/4” x 15”, Round: 12”, Square: 10 1/4”
Capacity 45° Left: Rectangular: 7 3/4” x 10 1/4”, Round: 10 1/2", Square: 9 1/4"
Capacity 30° Right: Rectangular: 7 3/4” X 11 1/4”, Round:11 1/4", Square: 10 1/4"
Capacity 45° Right: Rectangular: 7 3/4” X 6 1/2”, Round: 7 3/4", Square: 6 1/2"
Blade Size: 1” x 12’ 4”
Blade Drive: 3 HP VFD
Blade Speed: 49-377 SFM
Table Height: 34 1/8"
Coolant Tank Capacity: 16 Gallons
Machine Voltage: 208*, 240*, 480, 575* v *Transformer supplied at no charge
Machine Weight: 1,740 lbs.
Dimensions (W x L x H): 48” x 88” x 83”

Equipped With (subject to buyer verification):
Standard Machine Features:
• Manually operated, double miter easy swing, cast saw head

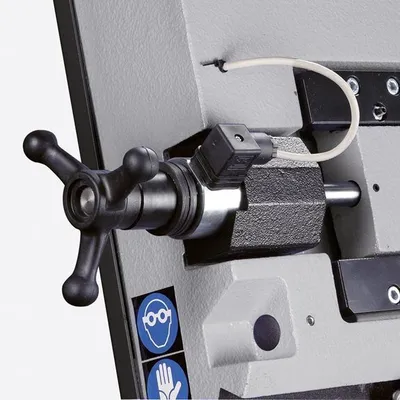

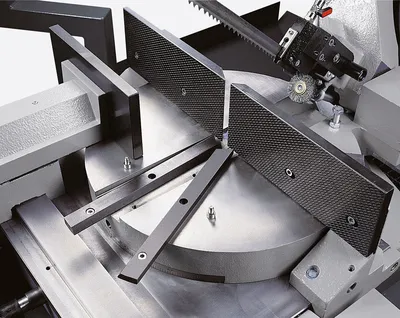

• Quick release cast-iron, material vise with dovetail ways

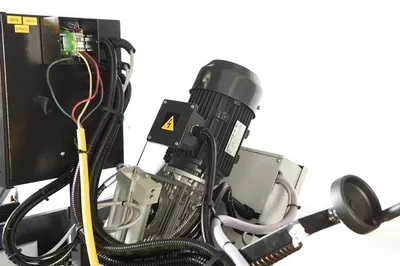

• Direct, Variable Frequency Blade Drive using no belts or pulleys.
• Adjustable speed range from 49 to 377 FPM

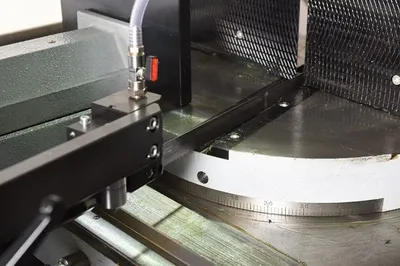

• Rotating table with replaceable wear strips. Cut slot moves in tandem with sawing head.
• Band tension indicator
• Infinitely adjustable gravity feeding head feed

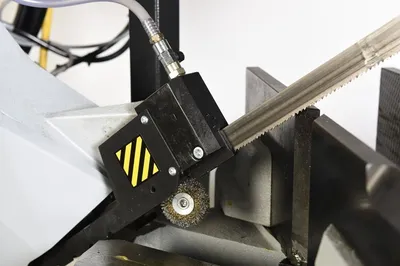

• Replaceable blade brush
• Small footprint
• Robust steel base
• Easy to read angle scale

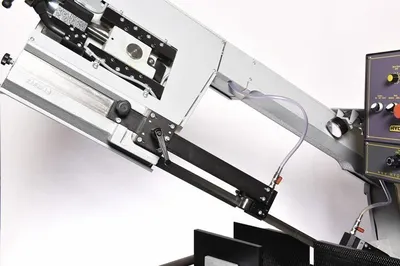

• Adjustable guide arm
• Pre-set, replaceable carbide guide inserts
• Mechanical blade tensioning
• Safety door interlocks
• Flood coolant

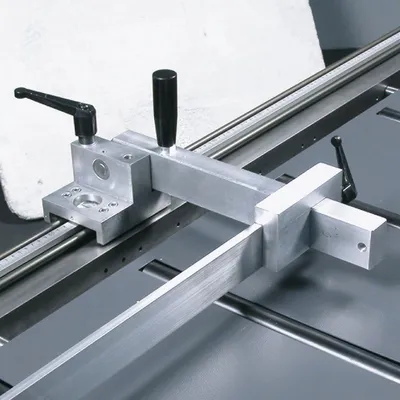

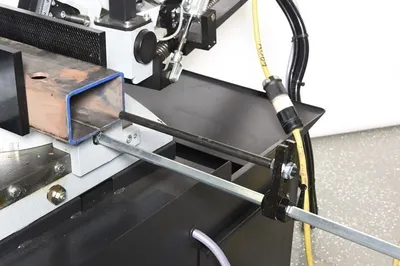

• Work stop
• Storage in saw base
• Work light
• Laser light

Optional Machine Features:

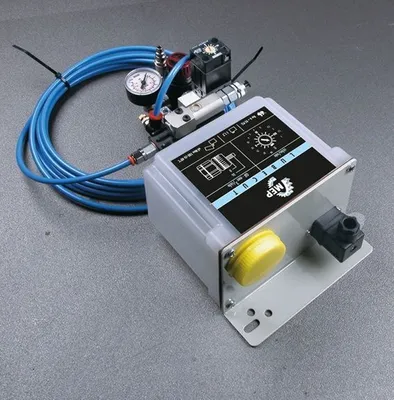

• Mist lubrication
• Adapter Plate for K210 table
• K210 5’ infeed/out feed roller
• R2 Work stop for K210 table
