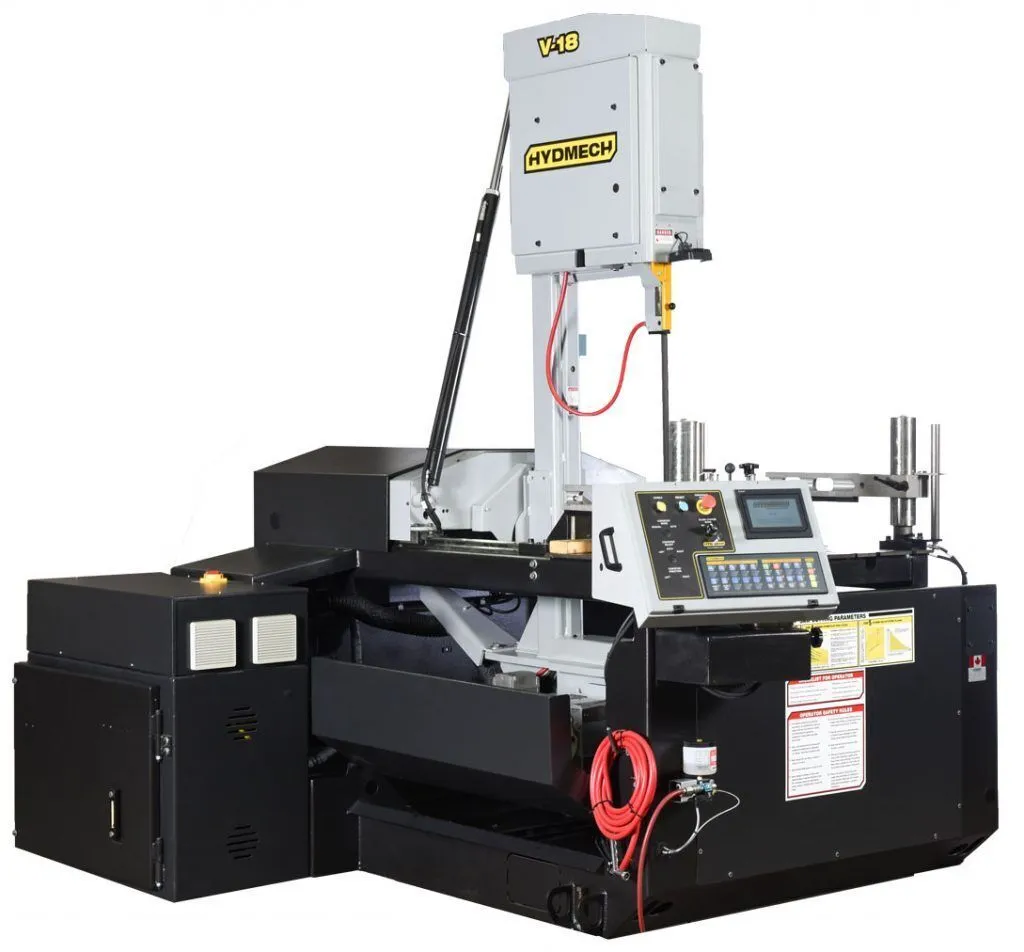

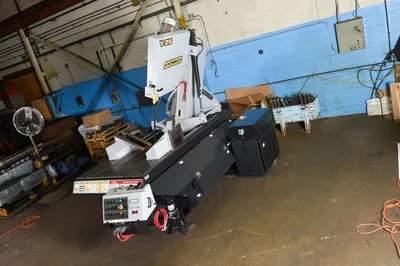

NEW HYD-MECH V-18-60

A semi-automatic vertical band saw with the ability to miter from 60° left to 60° right.

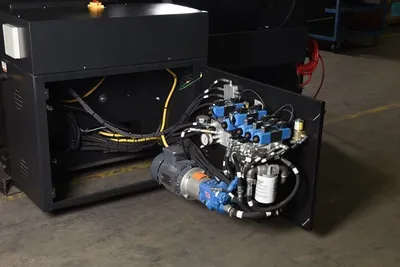

A 2 HP driven hydraulic pump supplies system pressure through three position directional valves controlling all vising, head advance/retract, blade tension, and guide arm movement.
Its optional 3° degree fixed canted head, recommended when cutting larger beams, structural steel, and bundles of square tubing allows for more efficient cutting and improved blade life.

Specifications (subject to buyer verification):
Capacity 90°: Rectangular 3 Deg Canted: 18" x 22", Straight: 18” x 23”; Round 3 Deg Canted: 18” (with tall vise), Straight: 18" (with tall vise)
Capacity 45°: Rectangular 3 Deg Canted: 18" x 14.75", Straight: 18” x 16”; Round 3 Deg Canted: 13” Straight: 13"
Capacity 30°: Rectangular 3 Deg Canted: 18" x 9", Straight: 18” x 10”; Round 3 Deg Canted: 9”, Straight: 10"
Capacity 90° with OH Bundling: Rectangular: 18" x 12; Round: 12"
Capacity 45° with OH Bundling: Rectangular: 18" x 12; Round: 12"
Capacity 30° with OH Bundling: Rectangular: 18" x 6; Round: 6"
Blade Size: 1 1/4” x 16’ 11”
Blade Drive: 7.5 HP VFD
Hydraulic Pump Drive: 2 HP
Blade Speed: 65 - 385 SFM
Wheel Diameter: 19"
Table Height: 44”
Hydraulic Tank Capacity: 8 Gallons
Machine Voltage: 208*, 240*, 480, 575* v *Transformer supplied at no charge
Machine Weight: 4,800 lbs
Dimensions (W x L x H): 98” x 120” x 112”

Equipped With (subject to buyer verification):
Standard Machine Features:

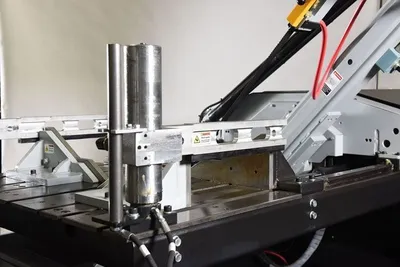

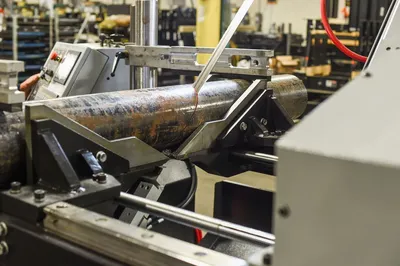

• Two full stroking hydraulic vises

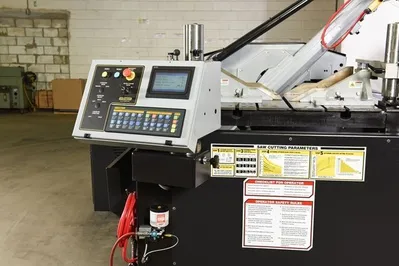

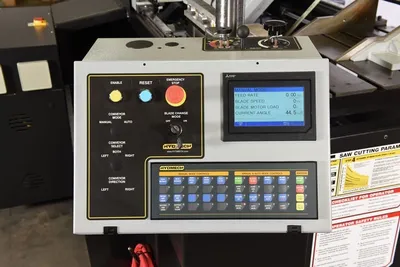

• Select left or right side control panel

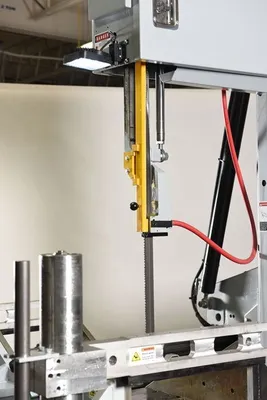

• Powered movable guide arm
• 7.5 HP VFD. True direct blade drive – no belts/pulleys
• Hydraulic positive down feed

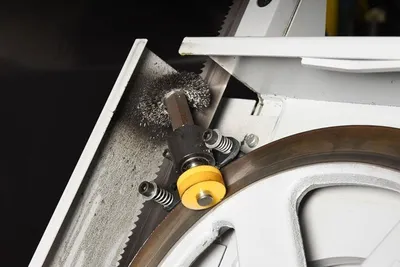

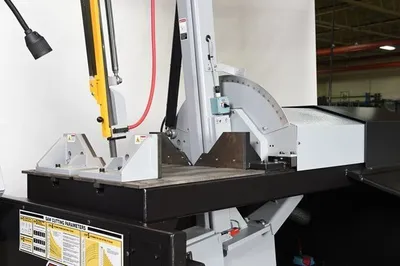

• Automatic programmable mitering with “go to” angle functionality from 60° left to 60° right • Replaceable blade brush
• Robust steel base
• Easy access electrical panel and hydraulics
• Blade breakage switch
• Hydraulic band tensioning with digital readout
• Replaceable carbide guide inserts
• Cast iron band wheels
• 2 HP hydraulic pump provides system pressure
• Safety door interlocks
• Flood coolant with wash down hose
• Laser light
• Work light
• Variable vise pressure

Optional Machine Features:
• Fixed 3° canted head
• Chip bucket
• Hydraulic overhead bundling

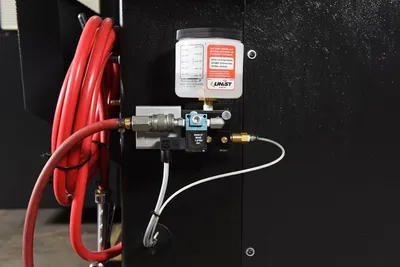

• Mist lubrication
• Pop-up lift rollers
• Drag chain chip conveyor
• Tall square vise inserts
• Hydraulic chip conveyor
• Idler conveyors
• Powered conveyors
