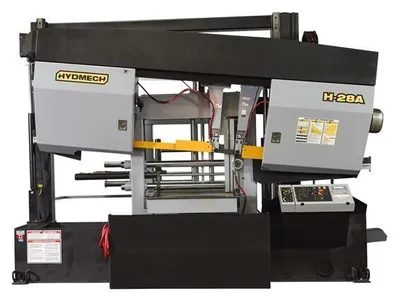

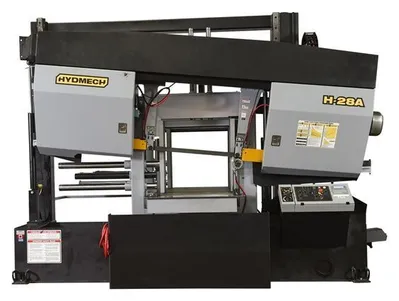

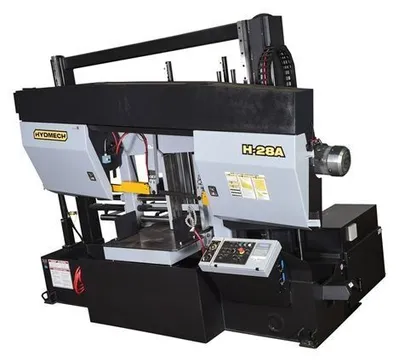

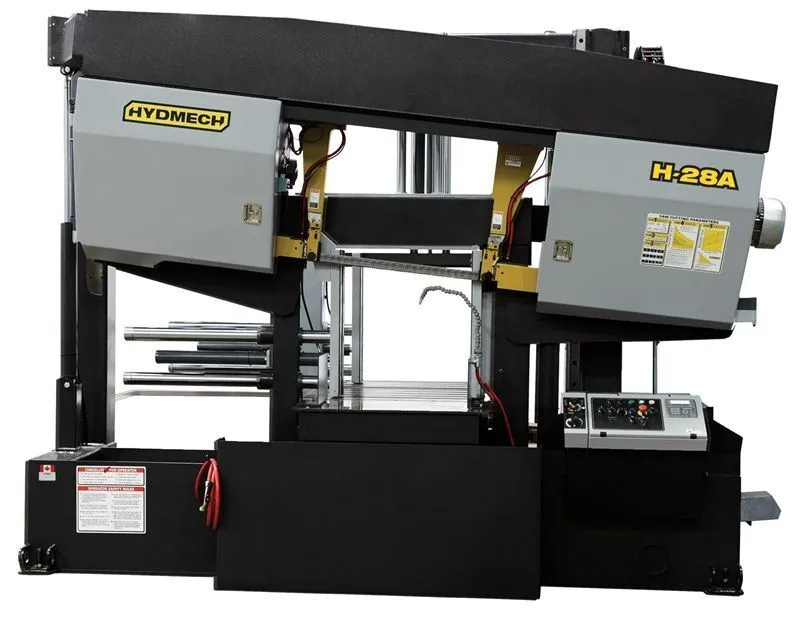

NEW HYD-MECH H-28A

The H-28A is an automatic horizontal band saw providing accurate 90° metal cutting for heavy-duty applications.
A 5 HP driven hydraulic pump supplies system pressure through three position directional valves controlling all vising, head up/down, blade tension, guide arm, and shuttle movement.
The direct down feed system provides easy adjustment of both head feed rate and cutting pressure.
Featuring a 28″ x 28″ capacity, 10 HP motor, and 2″ blade, the H-28A is a reliable choice for all your heavy-duty horizontal metal cutting applications.

Specifications (subject to buyer verification):
Capacity: 90°
Rectangular (h x w): 28” x 28”
Round: 28"
Square: 28"
Capacity: 6° Canted Head
Rectangular (h x w): 24” x 28”
Round: 24"
Square: 24"
Blade Size: 2” x 25’
Blade Drive: 10 HP
Machine Voltage: 208*, 240*, 480, 575* v *External transformer supplied at no charge
Blade Speed: 40-300 SFM
Automatic Multi-indexing: 0 - 34”
Hydraulic Tank Capacity: 9.5 Gallons
Coolant Tank Capacity: 40 Gallons
Table Height: 31" (37" w/canted head)
Dimensions (W x L x H): 161” x 92” x 120”
Machine Weight: 18,000 lbs

Equipped With (subject to buyer verification):
Standard Machine Features:
• One piece design – no alignment necessary
• Split front vise. Can be replaced by request with retractable datum vise at no charge.

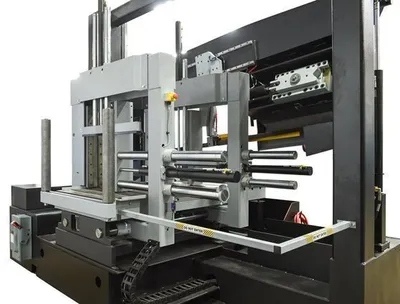

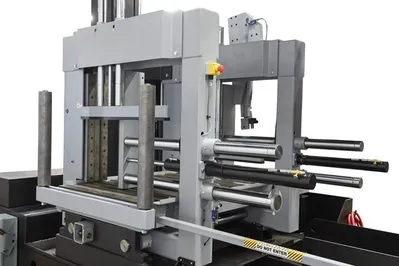

• Shuttle features automatic multi-indexing up to 34” in a single stroke with automatic kerf compensation.

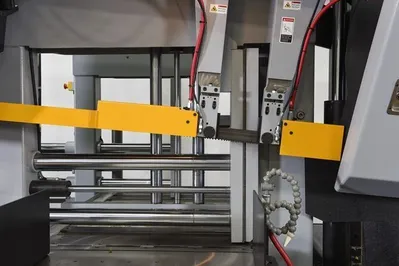

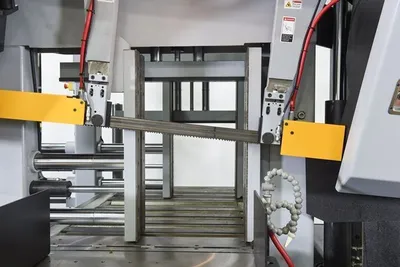

• Steel guide arms. The idler side guide arm is mechanically connected to the front vise moveable jaw for proper guide arm spacing at all times.

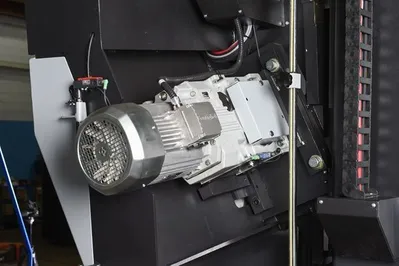

• 10 HP VFD. True direct blade drive – no belts/pulleys Full capacity, full stroking hydraulic vises
• Robust steel base
• Blade chamber separates material from cut part
• Hydraulic positive down feed
• High resolution feed rate valve allows for constant feed rate when cutting special alloys
• Cast iron band wheels
• 7” Mitsubishi FX5U PLC color touch screen controller. No flipping from screen-to-screen, the control is interactive with messages for the operator that reduces the learning curve. Programmable head up position, Built in machine diagnostics on the display screen, Simple Software updates, 999 jobs, 10 jobs in queue.

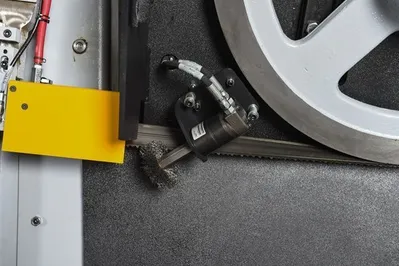

• Replaceable blade brush
• Automatic chip removal auger
• Easy access electrical panel and hydraulics Blade breakage switch
• Hydraulic band tensioning with digital readout

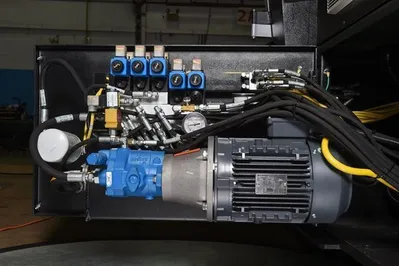

• 5 HP hydraulic pump provides system pressure

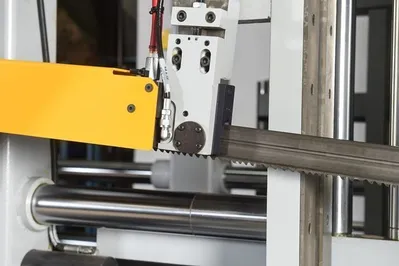

• Hydraulic carbide guide tensioning
• Hardened, replaceable wear plates
• Safety door interlocks
• Flood coolant with wash down hose
• Work light
• Out of stock switch
• Variable vise pressure

Optional Machine Features:
• Full capacity hydraulic overhead bundling
• 6 degree canted head
• Mist lubrication
• Remote console – 15’ cord
• Blade deviation
• Outboard vise clamping options available upon request
• Roller discharge table
• Vertical alignment rollers
• Laser light
• Idler conveyors
• Powered conveyors
