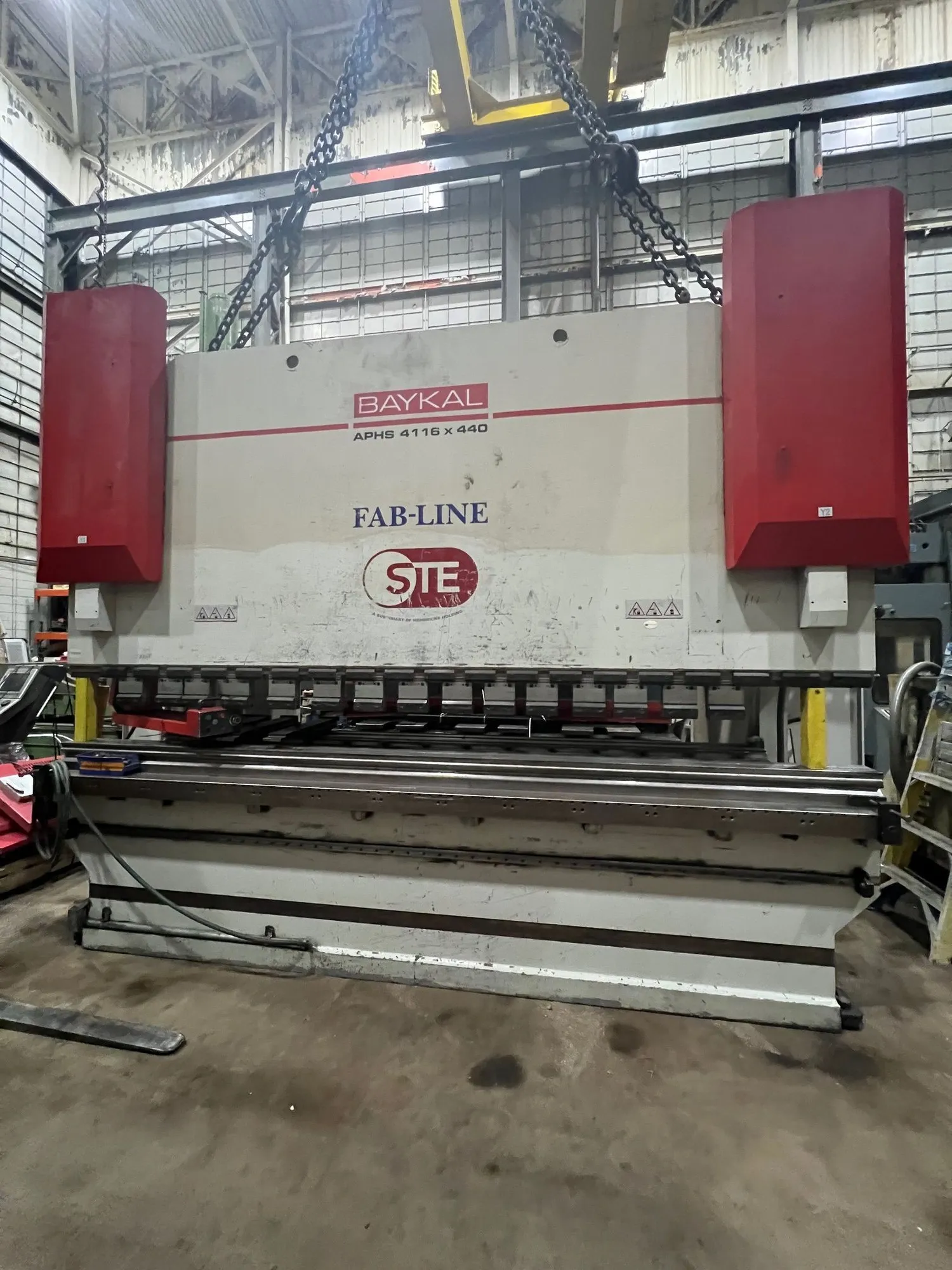

USED 2011 BAYKAL APHS 4116 x 440
Overview
Description
2011 Baykal APHS 4116 x 440 Hydraulic Press Brake, 480 Ton, 13'5" Bed Length. Features 140" between housings, 12.6" stroke, and 23.2" daylight opening. Equipped with a 40 HP motor, overall dimensions 200"x90"x138". Weight approx. 60,000 lbs.
Specifications
| Ton | 480 T | |
|---|---|---|
| Bed Length | 160 in | |
| Distance Btwn Housings | 140 in | |
| Stroke | 12.6 in | |
| Daylight Opening | 23.2 in |
MODEL: APHS 4116×440
CAPACITY: 13′ 5” X 480 TON
SERIAL NO.: 17729
OVERALL BENDING LENGTH: 13’ 4”
DISTANCE BETWEEN HOUSINGS: 11’ 7”
STROKE OF RAM: 12.6”
OPEN DAYLIGHT: 23.2”
SPEED: ADVANCE: 189 IPM
SPEED: PRESSING: 23 IPM
SPEED: RETURN: 165 IPM
MAXIMUM TRAVEL OF BACK GAUGE: 29.5” + 9.8” (second stop)
TABLE WIDTH: 15”
DISTANCE FLOOR TO TOP OF BED: 43.5”
THROAT DEPTH: 19.7”
YEAR: 2011
CROWNING
DELEM DA-69W CONTROL
5 AXIS: Y1, Y2, X, R, CROWING
85 GALLON OIL TANK
FLOOR STANDING
MOTOR: 40 HP
WEIGHT: 60,000 LBS (approx)
DIMENSIONS (LxWxH): 200″ x 90″ x 138″
