75 TON HILL-ACME "MODEL 5" HYDRAULIC METALWORKER IRONWORKER - Punch - Shear - Coper/Notcher - 20” Throat - 10 HP - Some Tooling
| Tonnage | 75 T | 68.039 t |
| Throat | 20" | 508 mm |
| Stroke | 1.5" | 38.1 mm |
| Power | 10 hp | 7.5 kW |
| Angle (L1) | 5" | 127 mm |
| Angle (L2) | 5" | 127 mm |
| Angle (T) | 12" | 304.8 mm |
| Weight | 7600 | 7600 |

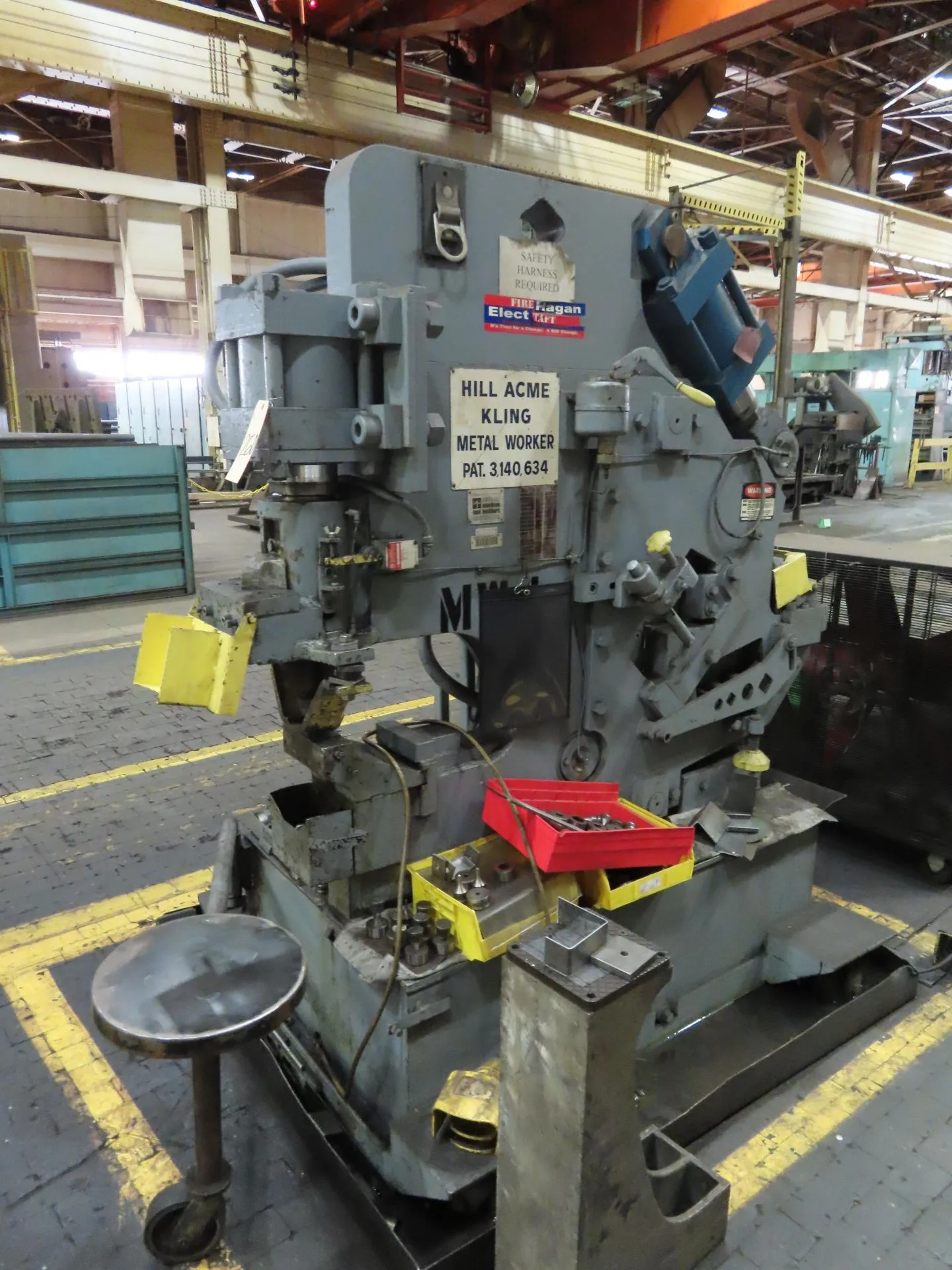

75 TON HILL-ACME "MODEL 5" HYDRAULIC METALWORKER IRONWORKER
Serial No 510255-S, Model 5, Series Metalworker
EQUIPPED WITH:
Punch - Shear - Coper/Notcher
Foot Tredle Control
Some Tooling
CATALOG SPECIFICATIONS:
Tonnage Capacity, Punch End 75 TON
Stroke, Punch End 1-1/2"
Throat Depth 20"
Shear Blade Length 12"
Punching Capacity thru 11/16" Plate 1-1/4"
Punching Capacity thru 7/8" Plate 1"
Shearing Capacity, Flat Bars 4" x 1"
Shearing Capacity, Flat Bars 6" x 3/4"
Shearing Capacity, Flat Bars 10" x 5/8"
Shearing Capacity, Round Bars 1-7/8"
Shearing Capacity, Square Bars 2"
Shearing Capacity, 90-Degree Angles 5" x 5" x 1/2""
Shearing Capacity, 45-Degree Angles 4" x 3" x 3/8"
Shearing Capacity, Tees 4" x 4" x 3/8"
Coping Capacity, 90-Degree "V" 3" x 4-1/4" x 3/8"
Notching Capacity, Square 3" x 3" x 1/2"
Strokes Per Minute, 1/2" Length 40 SPM
Strokes Per Minute, 1-1/2" Length 43 SPM
Main Motor, Horsepower 10 HP
Weight, Approximately 7600 LBS
F.O.B. OUR WAREHOUSE
