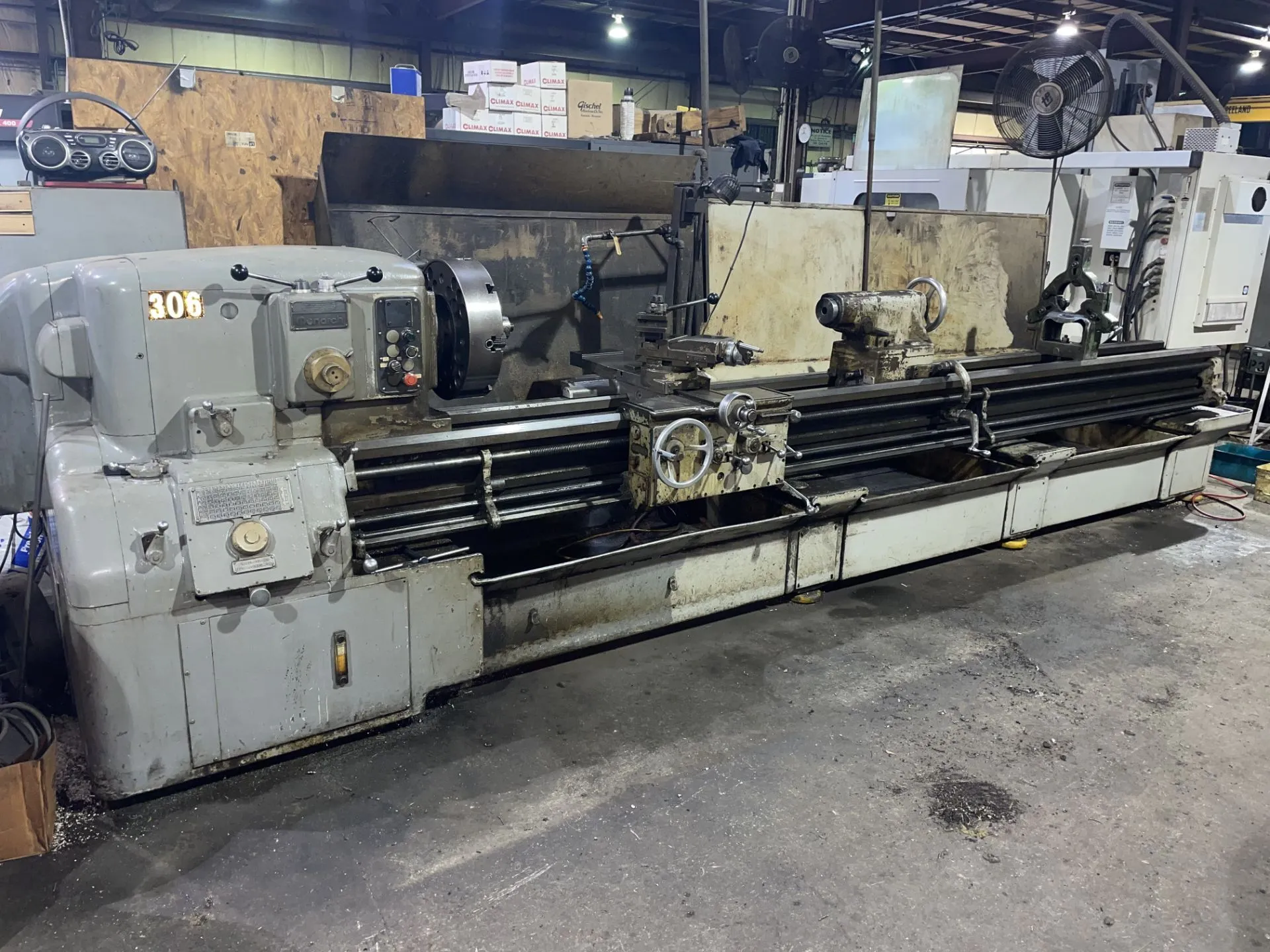

24" x 150" MONARCH "2516X150" SERIES 610 ENGINE LATHE
Serial No.48097, Model 2516x150, Series 610
| Swing | 24" | 609.6 mm |
| Centers | 150" | 3,810 mm |
| Spindle Bore | 2.0625" | 52.388 mm |
| RPM | 1,500 RPM | 1,500 RPM |
| Swing Over Cross Slide | 16" | 406.4 mm |
| Dimensions | 235 x 57 | 235 x 57 |
| Weight | 13500 | 13500 |
24" x 150" MONARCH "2516X150" SERIES 610 ENGINE LATHE
Serial No.48097, Model 2516x150, Series 610
EQUIPPED WITH:
18" 4-Jaw Chuck
6" D-1 ASA Cam Lock Spindle Nose
Hard Ways - Steady Rest
Full Length Coolant-Chip Pan
CATALOG SPECIFICATIONS:
Hole Thru Spindle 2-1/16"
Swing Over Bed Ways, Rated 24"
Swing Over Carriage Wings 24"
Swing Over Cross-Slide 16"
Distance Between Centers 150"
(36) Spindle Speeds, Range 12 to 1500 RPM
(66) Longitudinal Carriage Feeds .001 to .068 IPR
(66) Thread Changes, Range 1 to 120 TPI
Cross-Slide Cross Feed Travel 5"
Width Of Bed 17"
Tailstock, Spindle Taper #4 MT
Tailstock, Spindle Diameter 4-1/2"
Tailstock, Spindle Travel 7"
Overall Dimensions, L x D 235" x 57"
Weight, Approximately 13,500 LBS
F.O.B OUR WAREHOUSE
