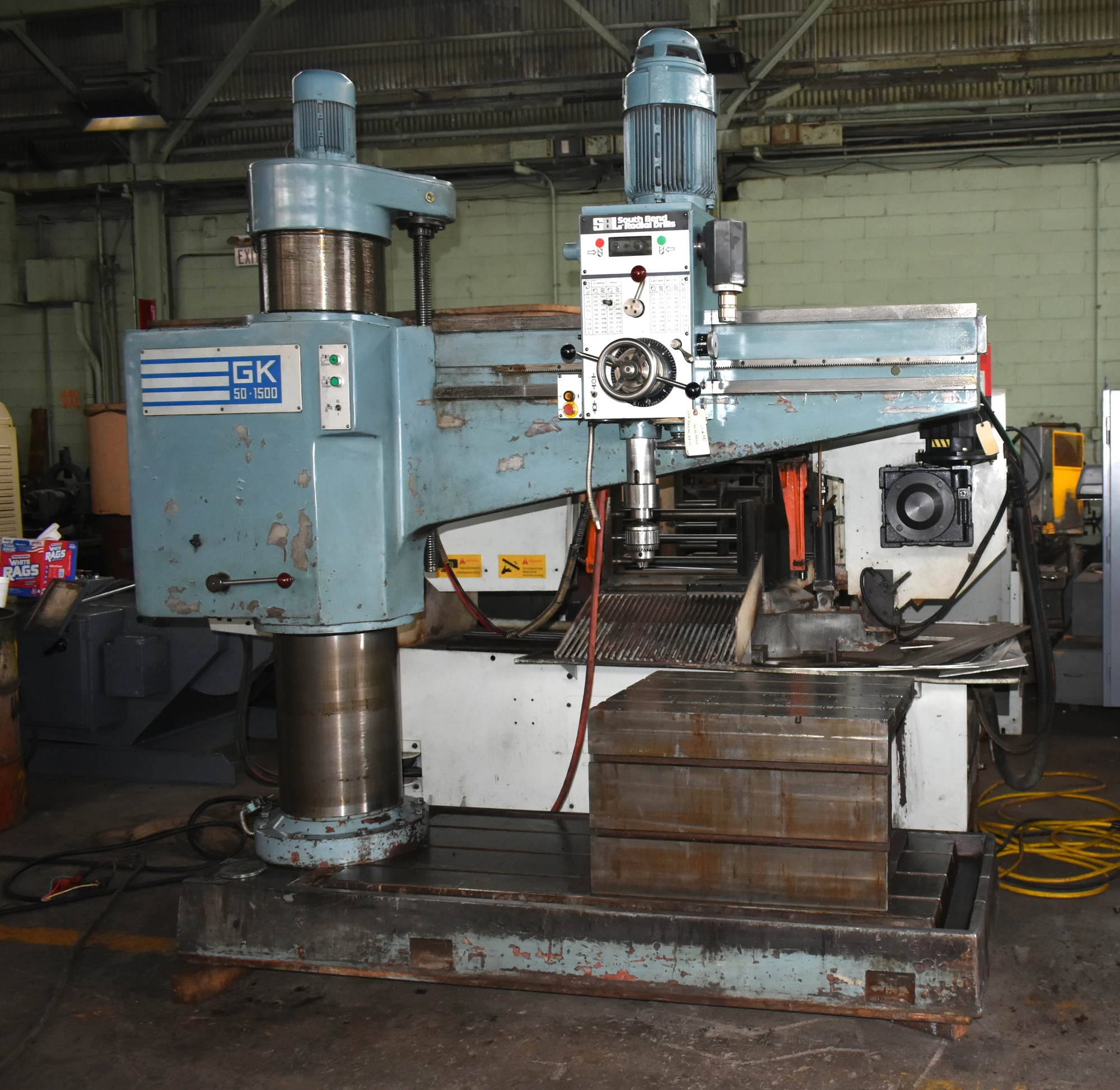

USED SOUTH BEND GK50-1500

5'14" SOUTH-BEND "GK50/1500" RADIAL DRILL
Serial No 540412, Model GK50/1500, Series "G"

EQUIPPED WITH:
Tapping Capabilities
Plain Type Base - Power Arm Elevation
Hydraulic Clamping
23.5" x 30.5" x 19.5" T-Slotted Plain Box Table

CATALOG SPECIFICATIONS:
Arm Length 59.06"
Column Diameter 14"
Drilling Capacity, Mild Steel 2"
Drilling Capacity, Cast Iron 2.375"
Tapping Capacity, Mild Steel 2"
Tapping Capacity, Cast Iron 2.375"
Horizontal Head Travel on Arm 48.5"
Vertical Arm Travel on Column 32"
Vertical Spindle Travel in Head 9.5"
Spindle-Radius, Minimum 17.5"
Spindle-Radius, Maximum 66"
Spindle-Nose to Base, Minimum 8.5"
Spindle-Nose to Base, Maximum 51.25"
Base Working Surface, W x L 32.25" x 66.375"
Spindle Nose Diameter 2.375"
Spindle Taper #4 MT
(12) Spindle Speeds, Range 40 to 1750 RPM
(6) Spindle Feeds, Range .0020 to .0138 IPR
Spindle Motor, Horsepower 4-1/3/3 HP
Elevation Motor, Horsepower 1-1/2 HP
Extreme Height, Column Above Floor 101"
Extreme Height, Head & Arm Extended 114"
Weight, Approximately 6900 LBS
