14/21" x 40" U.S. INDUSTRIAL MACHINERY “C6236” GEARED-HEAD GAP-TYPE ENGINE LATHE - inch/metric threading - tool post - steady rest - follow rest
| Swing | 14" | 355.6 mm |
| Centers | 40" | 1,016 mm |
| Spindle Bore | 2" | 50.8 mm |
| RPM | 2,000 RPM | 2,000 RPM |
| Swing Over Cross Slide | 7.5" | 190.5 mm |
| Dimensions | 92.5 x 38 x 49 | 92.5 x 38 x 49 |
| Weight | 2900 | 2900 |

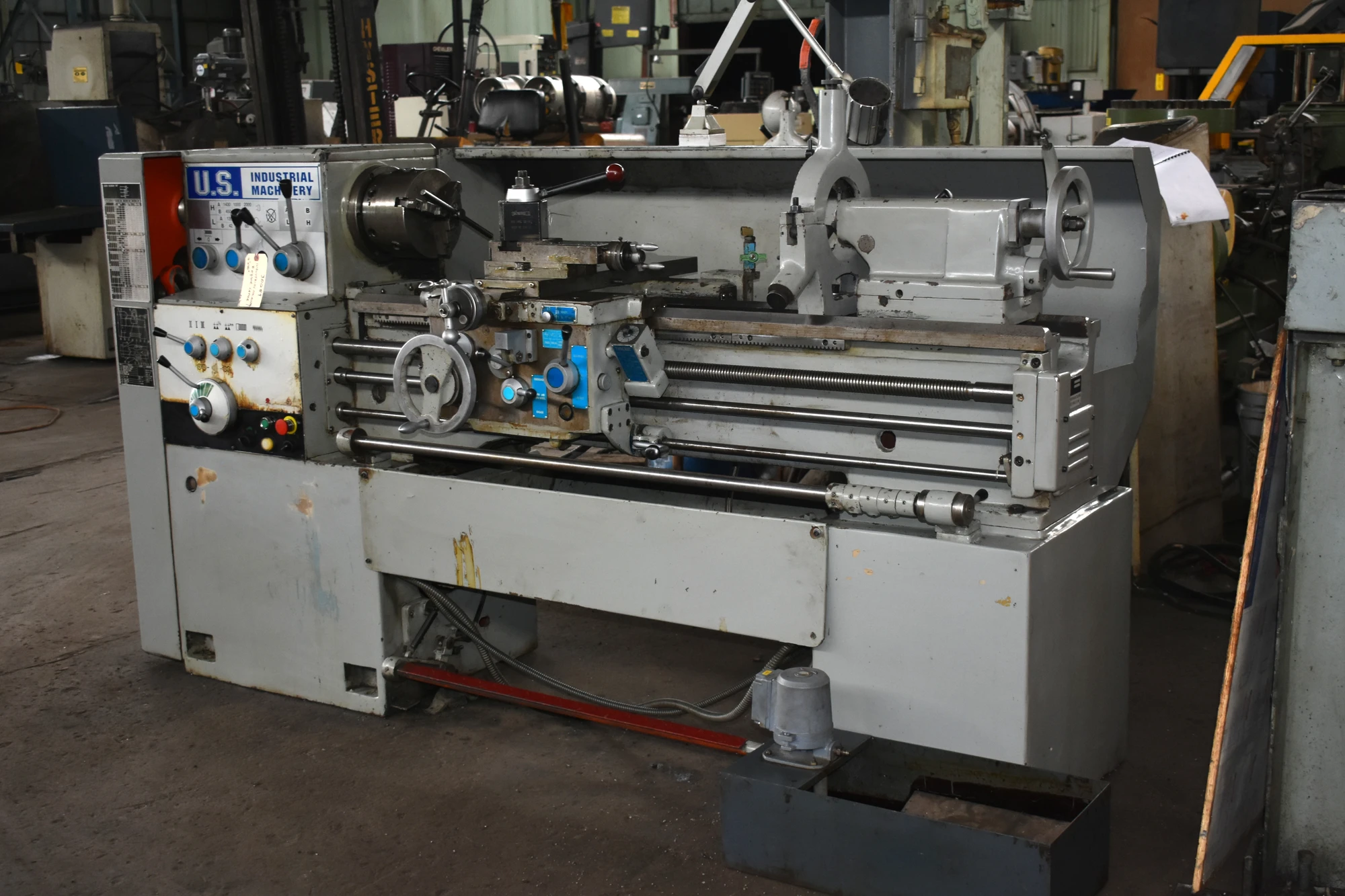

14/21" x 40" U.S. INDUSTRIAL MACHINERY GAP-TYPE ENGINE LATHE
Serial No 19026066, Model C6236,
EQUIPPED WITH:
Inch/Metric Threading
Geared Headstock - Steady Rest - Follow Rest
8" 3-Jaw Chuck - Turret Depth Stop
Quick Change Tool Post w/Extra Tool Holders
CATALOG SPECIFICATIONS:
Hole Thru Spindle 2" 52MM
Swing Over Bed Ways 14" 360MM
Swing Thru Gap 21" 540MM
Swing Over Cross-Slide 7.5" 190MM
Distance Between Centers 40" 1000MM
(12) Spindle Speeds, Range 28 to 2000 RPM
Longitudinal Feeds, Range .0015 to .0267 MMPR
Longitudinal Feeds, Range .0038 to .499 IPR
Cross Feeds, Range .006 to .0155 MMPR
Cross Feeds, Range .017 to .225 IPR
Metric Threads, Range .5 to 6.5 MMPR
(27) Thread Changes, Range 4 to 48 TPI
(11) Module Threads, Range .5 to 3.25 MP
(18) Pitch, Range 8 to 52 DP
Tailstock Quill Diameter 2.5" 65MM
Tailstock Quill Travel 5.1" 130MM
Tailstock Quill Taper #4 MT
Overall Dimensions, L x W 92.5" x 38"
Overall Height 49"
Weight Approximately 2900 LBS
F.O.B. OUR WAREHOUSE
