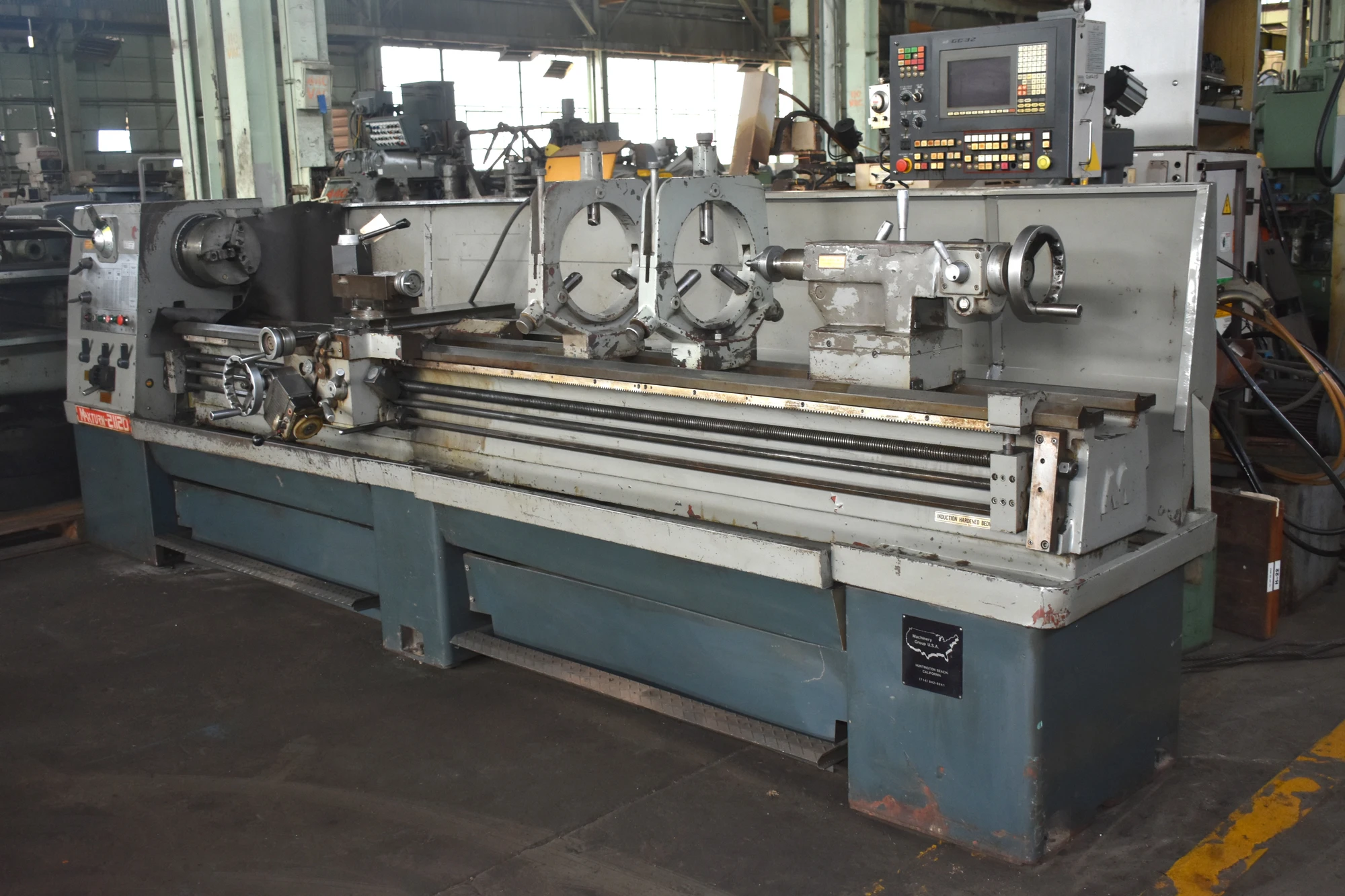

21/30" x 120" MAXTURN "PHL21120" PRECISION GAP-TYPE
ENGINE LATHE
Serial No 21129103022, Model PHL21120,
| Swing | 21" | 533.4 mm |
| Centers | 120" | 3,048 mm |
| Spindle Bore | 3.125" | 79.375 mm |
| Power | 12.5 hp | 9.3 kW |
| RPM | 1,600 RPM | 1,600 RPM |
| Swing Over Cross Slide | 14" | 355.6 mm |
| Dimensions | 142 x 60 | 142 x 60 |
| Weight | 5200 | 5200 |
21/30" x 120" MAXTURN "PHL21120" PRECISION GAP-TYPE
ENGINE LATHE
Serial No 21129103022, Model PHL21120,
EQUIPPED WITH:
Taper Attachment
Threading (Inch-Metric Full-Length Lead Screw)
10" 3-Jaw Chuck w/Jaws
(2) Steady Rests - Quick Change Tool Post
Hard Ways - Threading Dial
Full Length Coolant-Chip Pan and Coolant System
CATALOG SPECIFICATIONS:
Hole Thru Spindle 3.125"
Swing Over Bed Ways, Rated 21"
Swing Thru Gap 30"
Swing Over Cross-Slide 14"
Distance Between Centers 120"
Cross-Slide Cross-Feed Travel 11"
Tailstock, Spindle Taper #5 MT
(16) Spindle Speeds, Range 20 to 1600 RPM
Carriage Longitudinal Feeds .002 to .032 IPR
Cross-Slide Cross Feeds .001 to .016 IPR
Thread Changes, Range 2 to 72 TPI
Metric Pitches, Range .4 to 14 MM
Metric Modules .3 to 3.5 MOD
Diametral Pitches 8 to 44 DP
Spindle Drive Motor 12.5 HP
Overall Dimensions, L x D 11'10" x 5'
Overall Height 4'6"
Weight, Approximately 5200 LBS
F.O.B. OUR WAREHOUSE
