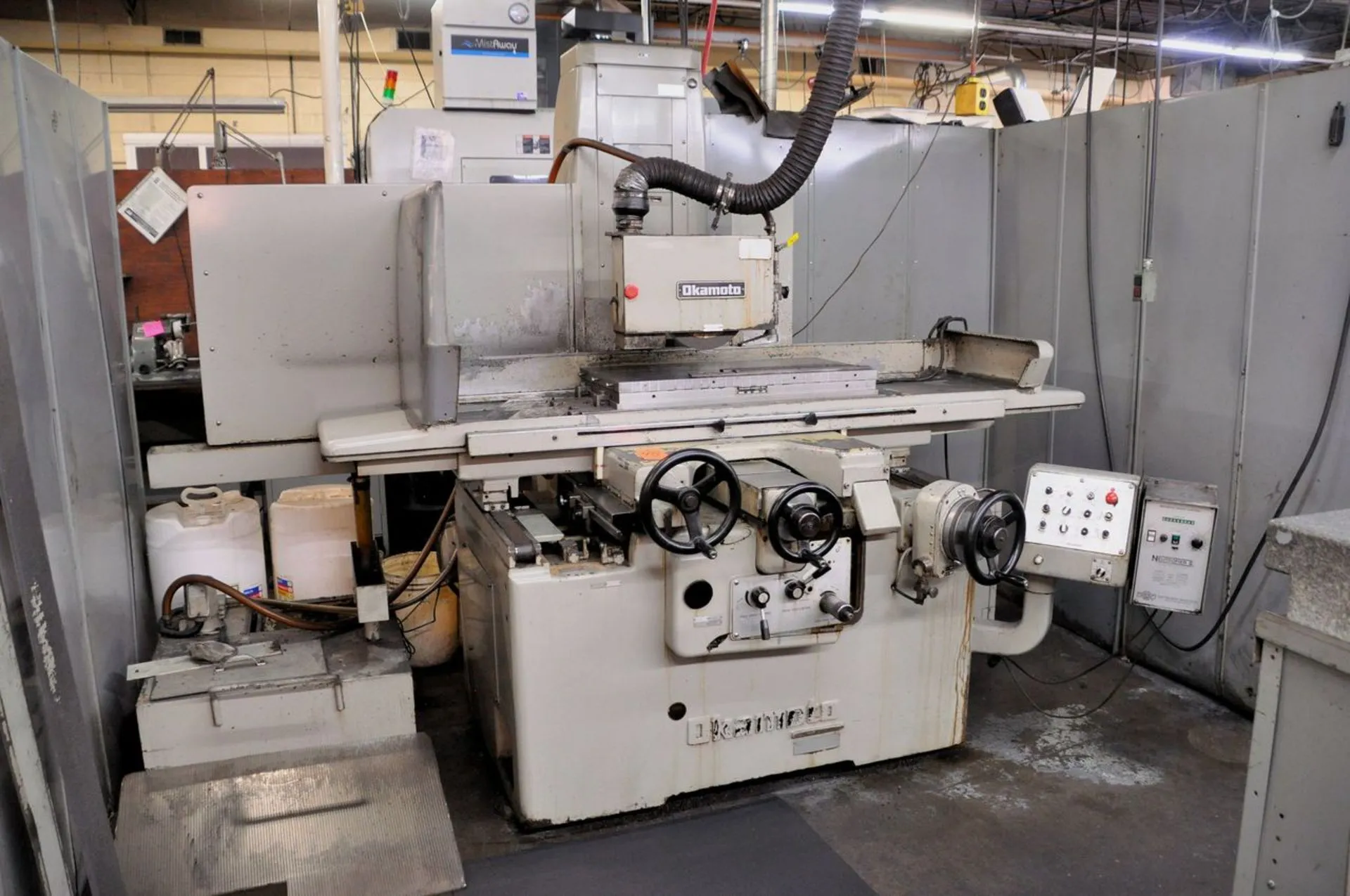

16" X 32" OKAMOTO FULLY AUTOMATIC SADDLE-TYPE HYDRAULIC
HORIZONTAL-SPINDLE SURFACE GRINDER
Serial No 8537, Model 1632N,
| Table-W | 16" | 406.4 mm |
| Table-L | 32" | 812.8 mm |
| Horz/Vert | Horz | Horz |
| Power | 5 hp | 3.7 kW |
| Grinding Wheel Width | 1.5" | 38.1 mm |
| Grinding Wheel Dia. | 12" | 304.8 mm |
| Dimensions | 16 x 32 | 16 x 32 |
| Weight | 7900 | 7900 |
16" X 32" OKAMOTO FULLY AUTOMATIC SADDLE-TYPE HYDRAULIC
HORIZONTAL-SPINDLE SURFACE GRINDER
Serial No 8537, Model 1632N,
EQUIPPED WITH:
16" x 32" Walker Electro-Magnetic Chuck
w/Variable Automatic Neutrofier (Model 46)
Automatic Incremental Power Down Feed
Automatic Grinding Cycle --- Power Head Elevation
Automatic Cross Feed Reversal --- Coolant System
Plunge Grinding Capabilities
CATALOG SPECIFICATIONS:
Table Working Surface, W x L 16" x 32"
Grinding Width Capacity, Maximum 16"
Grinding Length Capacity, Maximum 32"
Height Under 12" Grinding Wheel 21.6"
Table Load Capacity 1550 LBS
Grinding Wheel Diameter, Standard 12"
Grinding Wheel Width, Standard 1.5"
Grinding Wheel Hole Diameter 1.25"
Table Longitudinal Feeds, Range 1 to 83 FPM
Table Cross In-Feeds, Range .02 to .8 IPR
Spindle Vertical Feeds, Range .0001 to .0015 IPR
Grinding Wheel Spindle Motor 5 HP/1800 RPM
Weight, Approximately 7900 LBS
F.O.B. OUR WAREHOUSE
