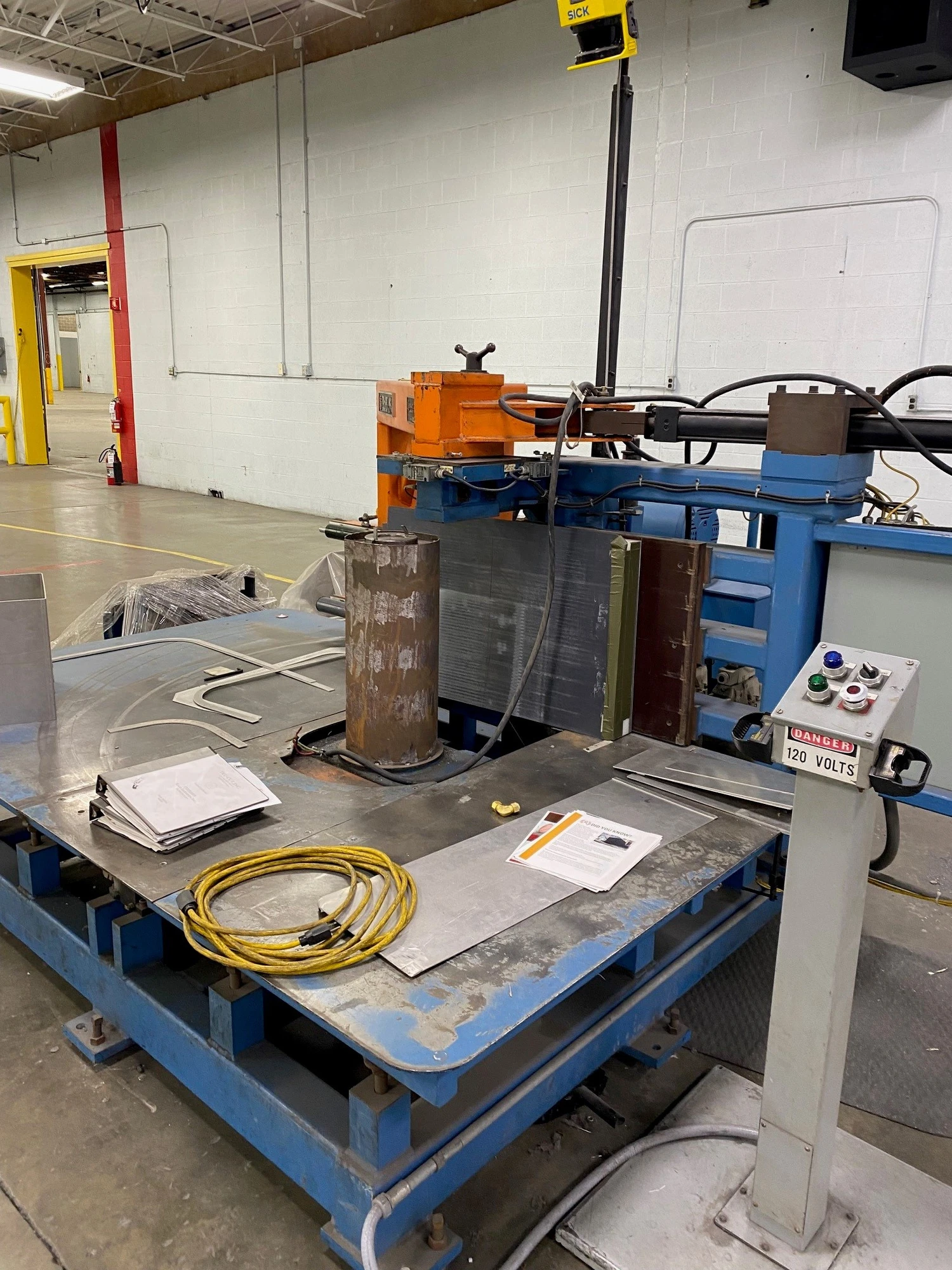

24" TRU-CUT INC VERTICAL HYDRAULIC SINGLE/DOUBLE BEND REFRIGERATOR & AIR CONDITIONER RADIUS ARM-TYPE COIL BENDER w/DIES - 15 HP HYDRAULIC UNIT
Overview
24" TRU-CUT INC VERTICAL HYDRAULIC SINGLE/DOUBLE BEND RADIUS ARM-TYPE COIL BENDER - Dies - Previously Used In Refrigreration & Air Conditioner Industriy
Specs
24" TRU-CUT INC VERTICAL HYDRAULIC SINGLE/DOUBLE BEND RADIUS
ARM-TYPE COIL BENDER
Serial No M4740,
EQUIPPED WITH:
Single And Double Bend Capabilities
Bend Arm With Parker Series 3L Hydraulic Cylinder (34" Stroke, 3.25" Bore)
Clamping Anvil w/Parker Series 3L Hydraulic Cylinder (14" Stroke, 3.25" Bore)
15 HP Bosch Hydraulic Unit w/Gauging & 80 Gallon Reservoir
Vickers Hydraulic Valves w/Gauging
Control Stand w/Auto-Hand & Reset Capabilities
Anvil Extend & Retract - Bend Extend & Retract
Parts Counter - Some Extra Dies
CATALOG SPECIFICATIONS:
Coil Height Capacity, Maximum 24"
Single Bend Coil Stroke Length 33.736"
Double Bend Coil Stroke Length 28.337"
Clamping Anvil Stroke Length, Maximum 14"
Floor Space Required Machine, L x W 142" x 78"
Floor Space Required Hydraulic Unit, L x W 66" x 34"
Hydraulic Motor Horsepower 15 HP/1755 RPM
Electrical System 230-460/3/60
NOTE: This Machine Was Being Used In The Refrigeration And Air Conditioner
Industry To Do Both Single And Double Bend Coils. Machine Has Many Different
Applications Depending On Specific Dies Used.
F.O.B. OUR WAREHOUSE
