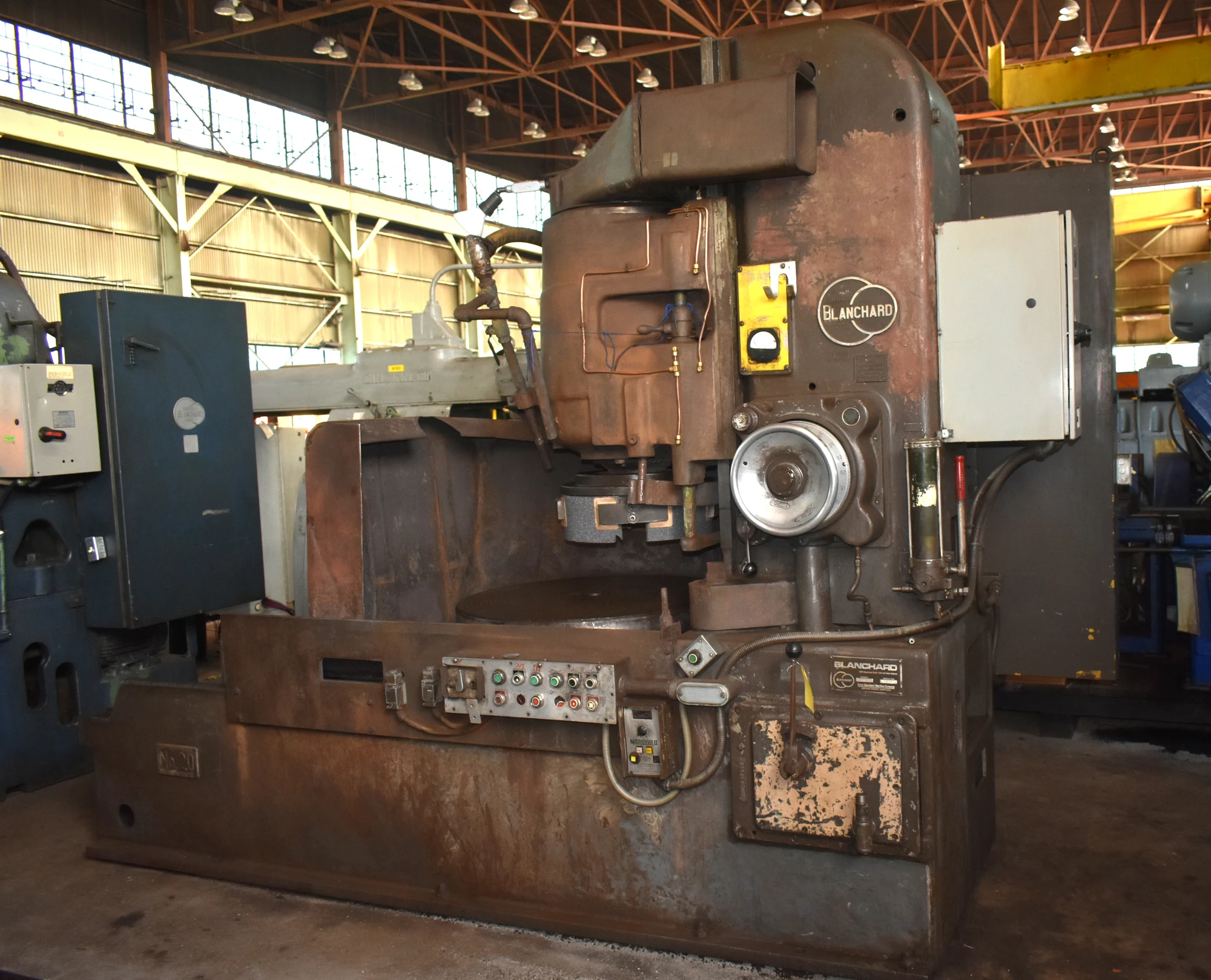

36" BLANCHARD EXTRA-HIGH EXTENDED BED
VERTICAL-SPINDLE ROTARY SURFACE GRINDER
Serial No 14122, Model 20-36
| Chuck Size | 36" | 914.4 mm |
| Horz/Vert | Vert | Vert |
| Power | 30 hp | 22.4 kW |
| Swing | 38" | 965.2 mm |
| Under Wheel | 24" | 609.6 mm |
| Grinding Wheel Width | 5" | 127 mm |
| Grinding Wheel Dia. | 20" | 508 mm |
| Dimensions | 11'8" x 8'4" | 11'8" x 8'4" |
| Weight | 15,000 LBS | 15,000 LBS |
36" BLANCHARD EXTRA-HIGH EXTENDED BED
VERTICAL-SPINDLE ROTARY SURFACE GRINDER
Serial No 14122, Model 20-36
EQUIPPED WITH:
24" Extended Height Under Grinding Wheel
Extended Bed Allowing For Easier Loading & Unloading
Vertical Spindle Machine Design
Segmented Grinding Wheel
Electro-Matic Neutrifier II Chuck Controls
Hand Operated Trabon Lubrication System
CATALOG SPECIFICATIONS:
Chuck, Diameter . . . . . . . . . 36"
Swing Between Coolant-Guards . . . . . . . . . 38"
Chuck Work Load Capacity 3000 LBS
Height Under Grinding Wheel, Maximum . . . . . . . . . 24"
Grinding Wheel Diameter, Maximum . . . . . . . . . 20"
Grinding Wheel Width, Maximum . . . . . . . . . 5"
Grinding Wheel Hole Diameter . . . . . . . . . 16.5"
(6) Chuck Speeds, Range . . . . . . . . . 6 to 33 RPM
Power Down Feeds, Range . . . . . . . . . .004 to .080 IPM
Spindle Motor Horsepower . . . . . . . . . 30 HP
Chuck Motor, Horsepower . . . . . . . . . 2 HP
Electrical System . . . . . . . . . 220-440/3/60
Floor Space Required, W x D . . . . . . . . . 11'8" x 8'4"
Overall Height . . . . . . . . . 10'10"
Weight, Approximately . . . . . . . . . 15000 LBS
F.O.B. OUR WAREHOUSE
