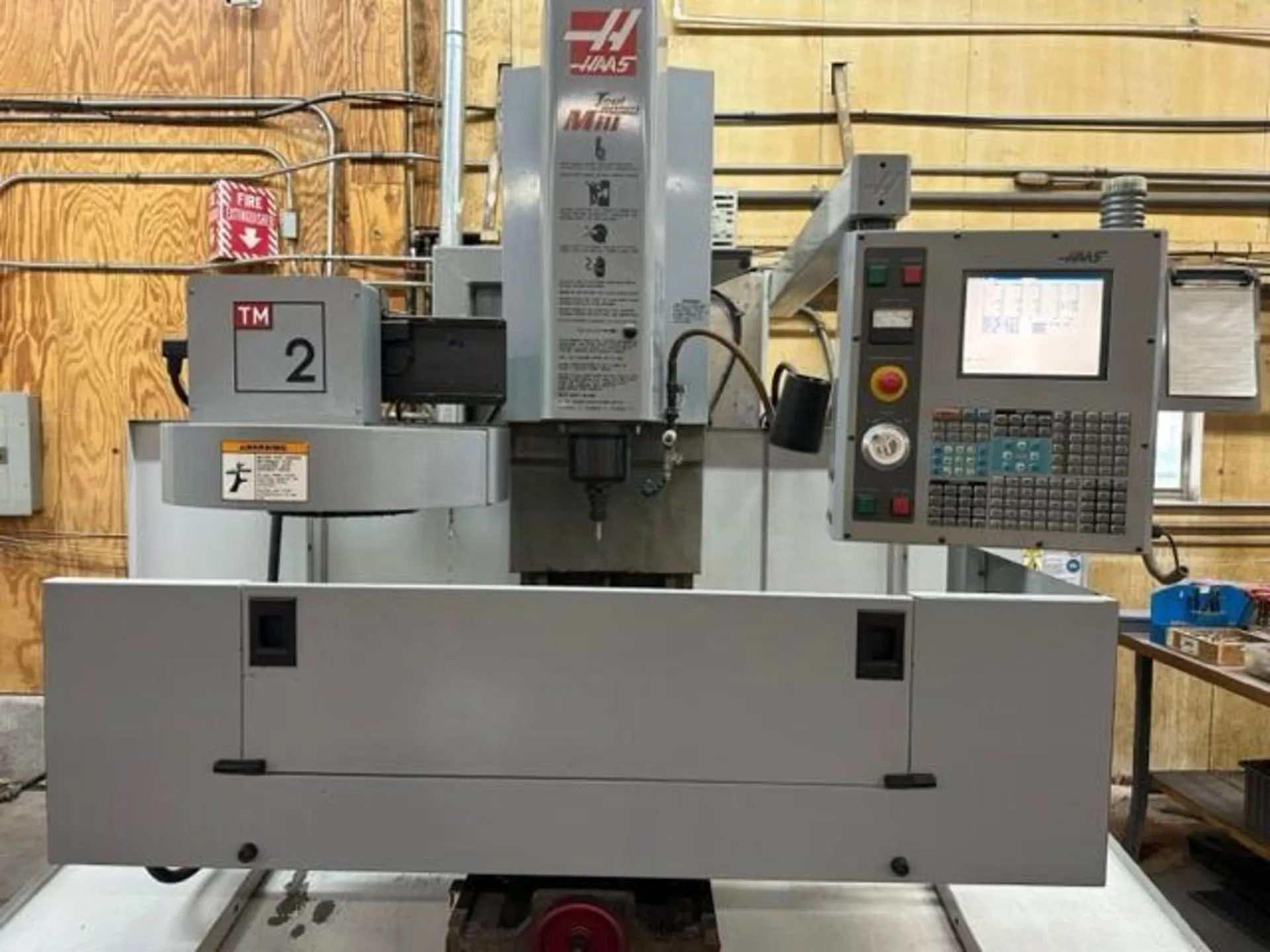

TM-2 HAAS CNC "TOOLROOM" VERTICAL MILL MACHINING CENTER
New 2004, Serial No 38664, Model TM-2, Series Toolroom
| X | 40" | 1,016 mm |
| Y | 16" | 406.4 mm |
| Z | 16" | 406.4 mm |
| Power | 7.5 hp | 5.6 kW |
| RPM | 4,000 RPM | 4,000 RPM |
| # ATC | 20 | 20 |
| Taper | #40 | #40 |
| Table-W | 10.5" | 266.7 mm |
| Table-L | 57.75" | 1,466.8 mm |
| # Axis | 3 | 3 |
| Dimensions | 100 x 68 x 118 | 100 x 68 x 118 |
| Weight | 3600 | 3600 |
TM-2 HAAS CNC "TOOLROOM" VERTICAL MILL MACHINING CENTER
New 2004, Serial No 38664, Model TM-2, Series Toolroom
EQUIPPED WITH:
Haas 3-Axis CNC Control
20-Position Automatic Tool Changer
Rigid Tapping
Single Or 3-Phase Power
Coolant System
CATALOG SPECIFICATIONS:
Table Dimensions (Overall), W x L 10.5" x 57.75"
Table Longitudinal Travel (X-Axis) 40"
Saddle Cross Travel (Y-Axis) 16"
Quill Vertical Travel (Z-Axis) 16"
Spindle Nose to Table, Maximum 20"
Spindle Nose to Table, Minimum 4"
Spindle Taper #40
Spindle Speeds, Range 0 to 4000 RPM
Cutting Feedrate, Maximum 200 IPM
Rapid Traverse Rates, X, Y, & Z-Axis' 200 IPM
Spindle Motor, Horsepower Rating 7.5 HP
Overall Dimenstion, W x D 100" x 68"
Overall Height 118"
Weight, Approximately 3600 LBS
NOTE: Machine Appears To Be In Very Good Condition With Less Than 5000 Hours
Of Usage.
F.O.B. OUR WAREHOUSE
