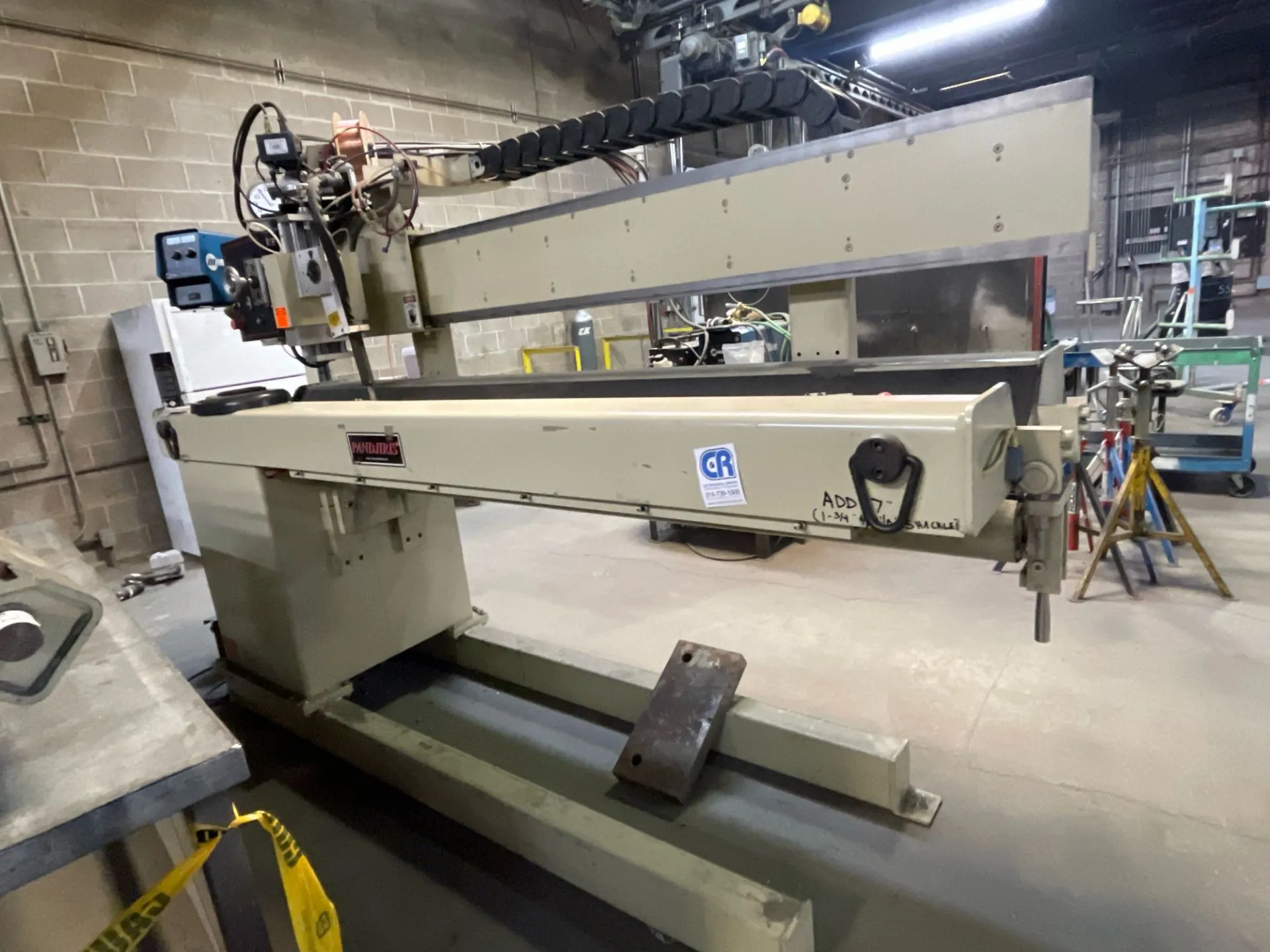

USED 2016 PANDJIRIS 60E5.2-30

60" PANDJIRIS “60E5.2-30” EXTERNAL/INTERNAL LONGITUDINAL SEAM WELDER - 2016 - Miller Welding Equiptment

60" PANDJIRIS EXTERNAL/INTERNAL LONGITUDINAL SEAM WELDER
New 2016, Serial No 2169E00, Model 60E5.2-30

EQUIPPED WITH:
Pandjiris EZ-Link Series Microprocessor Controller w/Speed Control -
Travel Start & Stop Controlling Both The Travel Carriage & Initiation
Of Weld Sequence
Internal Weld Seam Table w/Bar
Pandjiris Quick Change Rocking Back Up Bar
425 Amp MIller Invisision Auto-Line 352 MPa Pulsed Mig Welder
Miller S74 MPa Plus Single Wire Feeder
Binzel Abicor CR1250 MIG Weld Cooler & Cart

CATALOG SPECIFICATIONS:
Welding Length, Rated 60"
Clamping Length, 66"
Cylinder Diameter, Range 5.2" ID to 30" OD
Mandrel Diameter 5"
Material Thickness, Clamping .020" to .375"
Mandrel Height 57"
Weld Centerline 11.19"
Overall Dimensions, L x W 110" x 35"
Overall Height 5'6"
Weight Approximtely 5000 LBS

CONDITION: Appears to be in MINT Condition.
F.O.B. OUR WAREHOUSE
