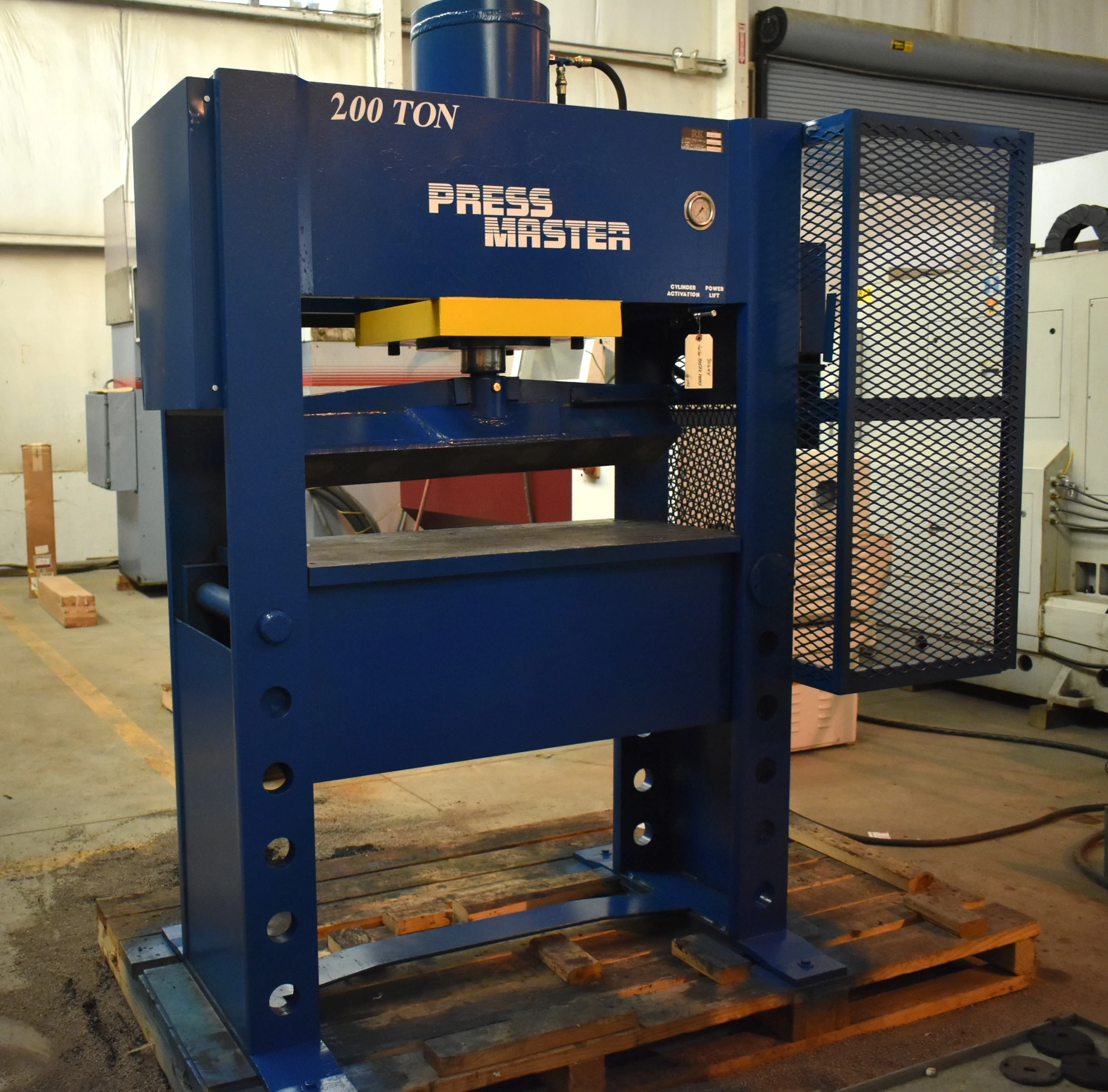

200 TON PRESS MASTER "H"-FRAME ELECTRIC-HYDRAULIC
SHOP PRESS
Serial No 0406104603, Model HFT-200T, Type 11BX16SX4ROD
| Dimensions | 52 x 28 | 52 x 28 |
| Weight | 4000 | 4000 |
200 TON PRESS MASTER "H"-FRAME ELECTRIC-HYDRAULIC
SHOP PRESS
Serial No 0406104603, Model HFT-200T, Type 11BX16SX4ROD
EQUIPPED WITH:
Manually Adjustable Table
Some Tooling
CATALOG SPECIFICATIONS:
Tonnage Capacity 200 TON
Ram Stroke Travel 16"
Bore Diameter 11"
Distance Ram to Table, Maximum 30.5"
Distance Between Uprights, Length 42"
Width Between Uprights 17.5"
Motor Horsepower 10 HP
Base Dimensions, W x D 52" x 28"
Overall Height 75"
Weight, Approximately 4000 LBS
F.O.B. OUR WAREHOUSE
