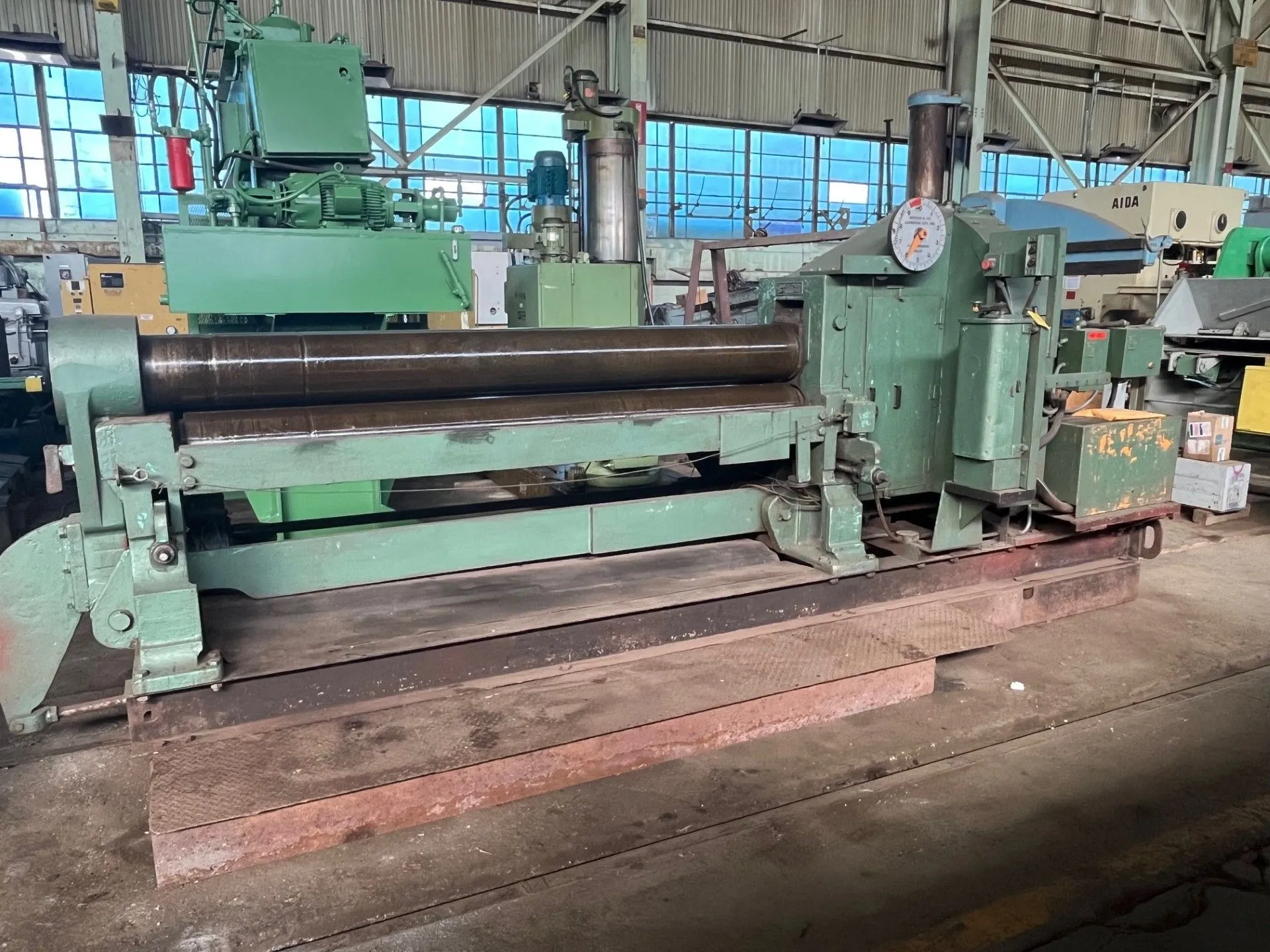

8' x 1/2" BERTSCH INITIAL-TYPE PLATE BENDING ROLL
Serial No 9980, Model 9
| Length of Rolls | 8.25' | 2.5 m |
| Max Thickness | 0.5" | 12.7 mm |
| # Rolls | 3 | 3 |
| Hyd/Mech | 'Mech' | 'Mech' |
| Power Rear Roll (Yes/No) | Yes | Yes |
| Power | 15 hp | 11.2 kW |
| Roll Diameter | 10" | 254 mm |
| Weight | 20100 | 20100 |
8' x 1/2" BERTSCH INITIAL-TYPE PLATE BENDING ROLL
Serial No 9980, Model 9
EQUIPPED WITH:
Air Drop End
Dial Indicator for Bending Roll Position
Forward & Reverse Switch
Automatic Lubrication System
Beam Mounted (No Pit Required)
CATALOG SPECIFICATIONS:
Plate Bending Capacity, Boiler Duty @60000 PSI 8' x 1/2"
Plate Bending Capacity, Boiler Duty @60000 PSI 64" x 9/16"
Plate Bending Capacity, Pipe Duty @60000 PSI 8' x 13/32"
Plate Bending Capacity, Pipe Duty @60000 PSI 52" x 7/16"
Length of Rolls, Overall 8'3"
Top-Roll Diameter 10"
Bottom-Roll Diameter 10"
Rear-Roll Diameter 10"
Drive Motor, HP/RPM 15 HP/1150 RPM
Electrical System 230-460/3/60
Weight, Approximately 20,100 LBS
F.O.B. OUR WAREHOUSE
