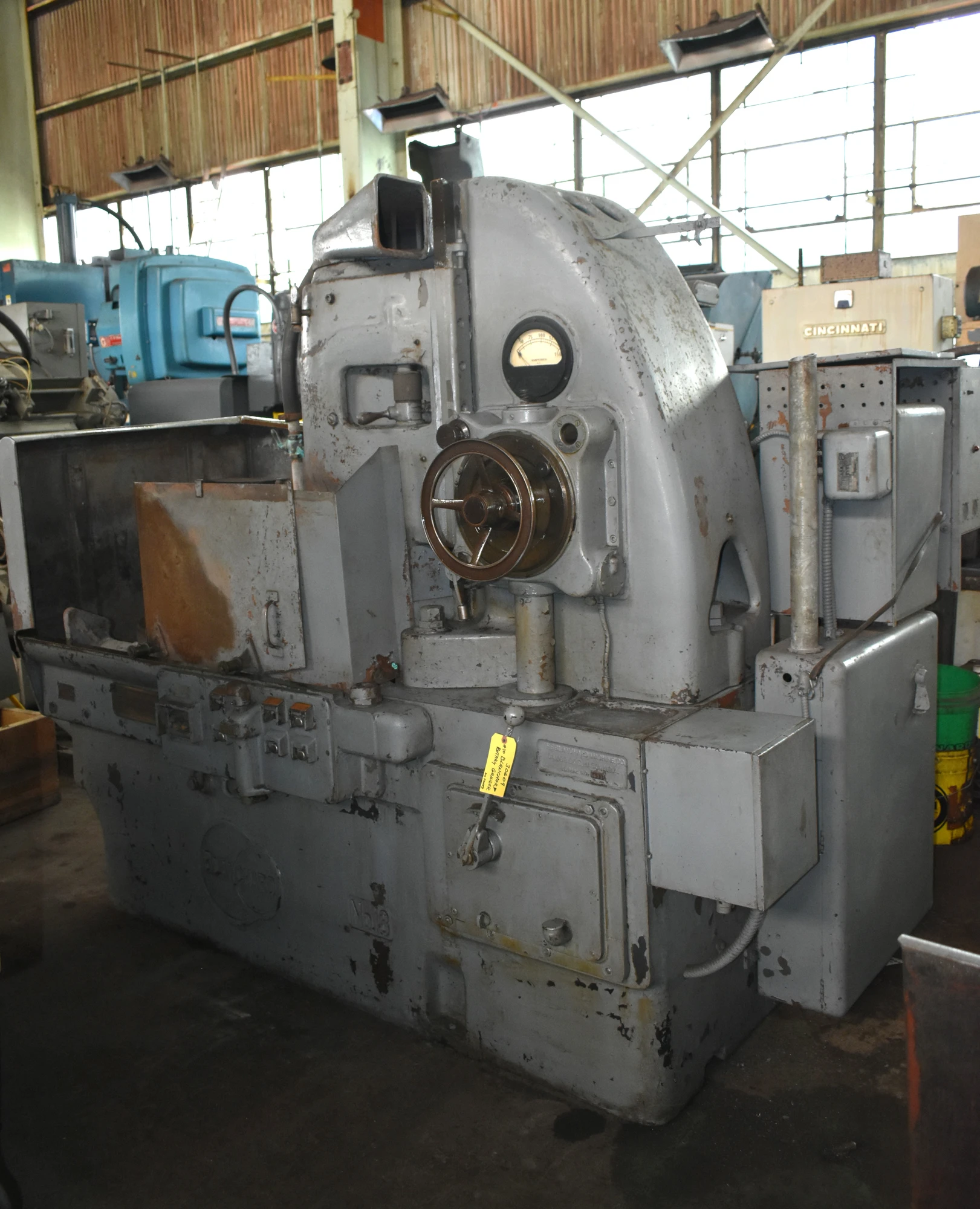

30" BLANCHARD VERTICAL-SPINDLE ROTARY SURFACE GRINDER
Serial No 4461, Model 18-30
| Chuck Size | 30" | 762 mm |
| Horz/Vert | '' | '' |
| Power | 25 hp | 18.6 kW |
| Under Wheel | 11" | 279.4 mm |
| Grinding Wheel Dia. | 18" | 457.2 mm |
| Weight | 10000 | 10000 |
30" BLANCHARD VERTICAL-SPINDLE ROTARY SURFACE GRINDER
Serial No 4461, Model 18-30
EQUIPPED WITH:
Vertical-Spindle Machine Design
30" Diameter Magnetic Chuck
Cylindrical Grinding Wheel
Power Raising & Lowering to Wheelhead
Coolant System (Built-In)
CATALOG SPECIFICATIONS:
Magnetic Chuck, Diameter 30"
Magnetic Chuck Work Load Capacity 3000 LBS
Height Under Grinding Wheel, Maximum 11"
Grinding Wheel Diameter, Maximum 18"
Grinding Wheel Speed 720 RPM
(6) Chuck Speeds, Range 6 to 33 RPM
Power Down Feeds, Range .004 to .080 IPM
Spindle Motor, Horsepower 25 HP
Electrical System 220-440/3/60
Weight, Approximately 10000 LBS
F.O.B. OUR WAREHOUSE
