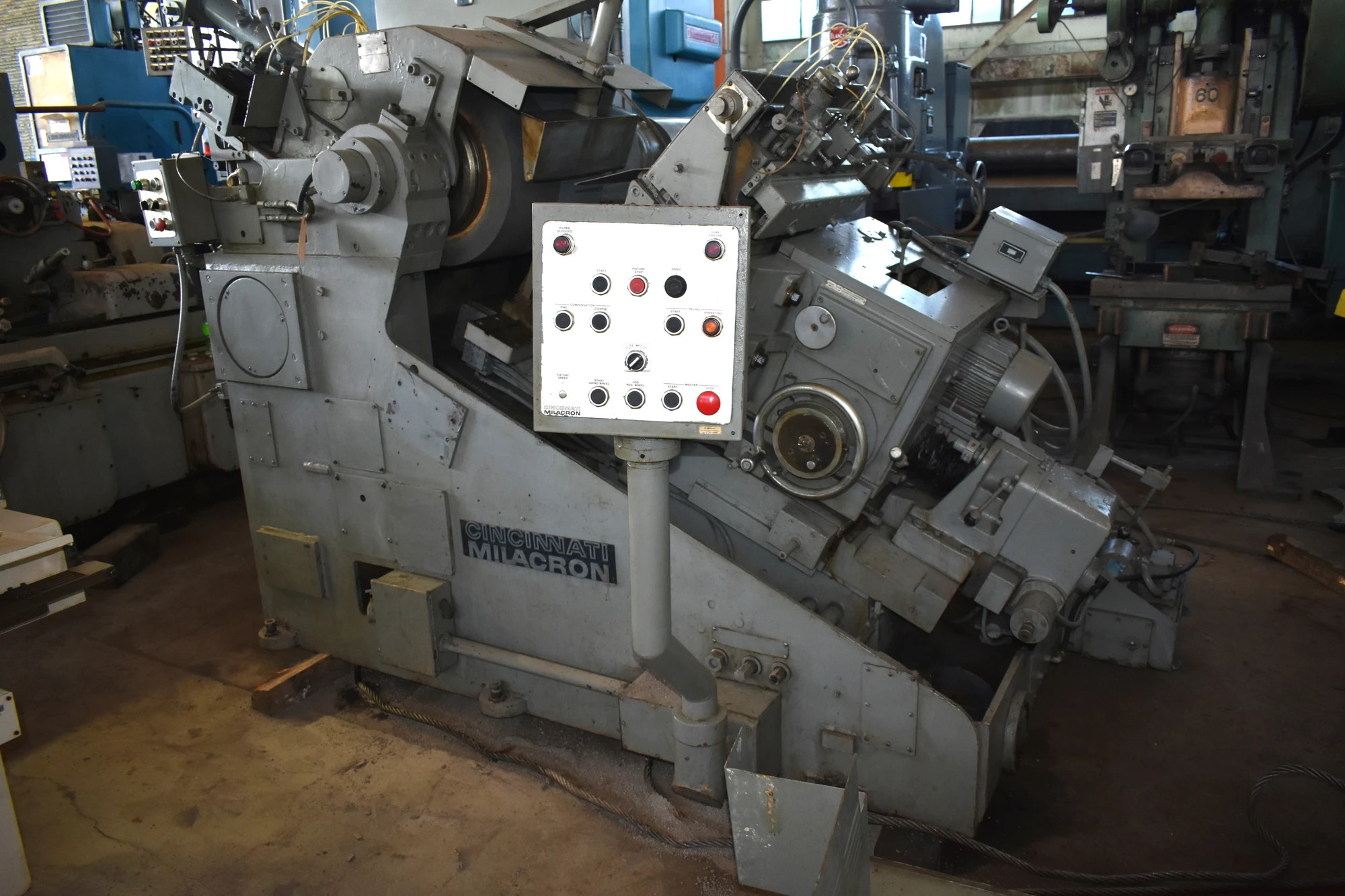

440-20 CINCINNATI-MILACRON "TWIN GRIP"
CENTERLESS GRINDER
New 1980, Serial No 350720H79-003, Model DE
| Capacity | 10" | 254 mm |
| Grinding Wheel Dia. | 24" | 609.6 mm |
| GW Power | 40 hp | 29.8 kW |
| Regulating Wheel Dia | 14" | 355.6 mm |
| RW Power | 2 hp | 1.5 kW |
| RW RPM | 300 RPM | 300 RPM |
| Dimensions | 9'11" x 6'5" | 9'11" x 6'5" |
| Weight | 24000 | 24000 |
440-20 CINCINNATI-MILACRON "TWIN GRIP"
CENTERLESS GRINDER
New 1980, Serial No 350720H79-003, Model DE
EQUIPPED WITH:
20" Thrufeed Workrest
Automatic Power Roller Loader w/6" to 12" Diameter
Capacity (Spinner Type)
Hydraulic Profile Grinding Wheel Truing w/Automatic
Diamond Advance
Hydraulic Profile Regulating Wheel Truing
Cartridge-Type Grinding Spindle w/5-Shoe Filmatic
Bearings
Gibbed Lower Slide And Gibbed Upper Slide
Front Handwheel Slide Adjustment
Push Button Hydraulic One-Way Slide Compensator
CATALOG SPECIFICATIONS:
Diameter Capacity, Minimum 1"
Diameter Capacity, Maximum 10"
Grinding Wheel Diameter, Minimum 17"
Grinding Wheel Diameter, Maximum 24"
Grinding Wheel Width, Maximum 20"
Grinding Wheel Hole Diameter 12"
Regulating Wheel Diameter, Minimum 10-1/4"
Regulating Wheel Diameter, Maximum 14"
Regulating Wheel Width, Maximum 20"
Regulating Wheel Hole Diameter 6"
Regulating Wheel Speeds, Range 10 to 300 RPM
Grinding Wheel Motor, Horsepower 40 HP
Regulating Wheel Motor, Horsepower 2 HP
Overall Dimensions, L x D 9'11" x 6'5"
Overall Height 7'3"
Weight, Approximately 24,000 LBS
F.O.B. OUR WAREHOUSE
