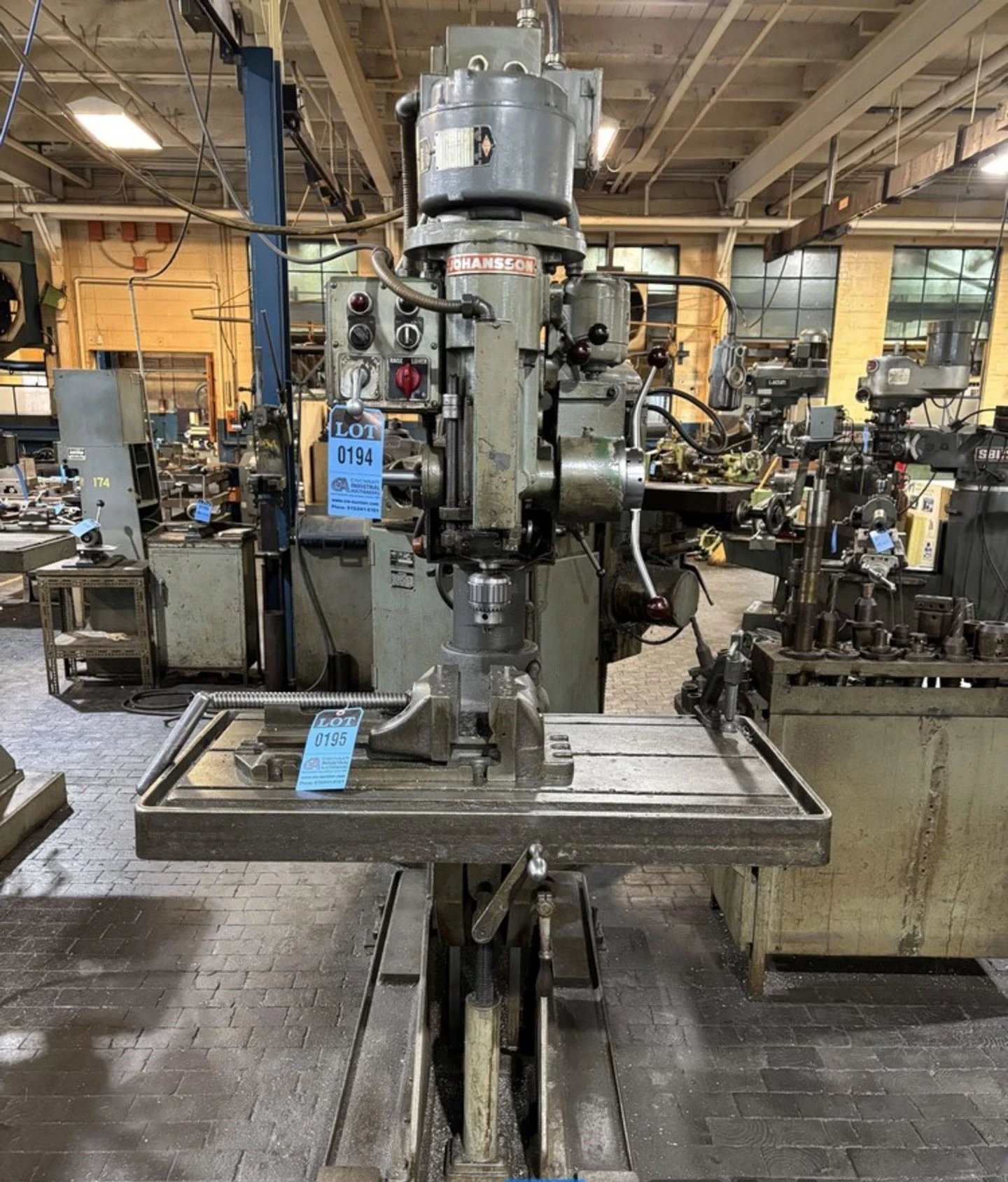

2'6" JOHANSSON SLIDING RAM-TYPE RADIAL DRILL
Serial No 21665, Series Standard Duty
| Arm Length | 2.5' | 0.8 m |
| Column Dia. | 6" | 152.4 mm |
| Power | 2 hp | 1.5 kW |
| RPM | 0 RPM | 0 RPM |
| Dimensions | 20.5 x 24 | 20.5 x 24 |
| Weight | 2400 | 2400 |
2'6" JOHANSSON SLIDING RAM-TYPE RADIAL DRILL
Serial No 21665, Series Standard Duty
EQUIPPED WITH:
Manual Table Adjustment
Power Arm Elevation
Power Down Feed
Heavy-Duty Vise
CATALOG SPECIFICATIONS:
Arm Length 2'6"
Column Diameter 6"
Drilling Capacity, Cast Iron 1.75"
Drilling Capacity, Mild Steel 1.5"
Vertical Arm Travel on Column 12"
Vertical Table Travel on Column 14.5"
Vertical Spindle Travel in Head 6"
Spindle-Radius, Minimum 11"
Spindle-Radius, Maximum 35"
Spindle-Nose to Table, Minimum 4"
Spindle-Nose to Table, Maximum 31"
Spindle-Nose to Base, Minimum 35"
Spindle-Nose to Base, Maximum 53"
Spindle-Center to Column, Minimum 2.5"
Spindle-Center to Column, Maximum 30"
Table Overall Dimensions, W x L 20" x 40"
Base Working Surface, W x L 20.5" x 24"
Quill Diameter 2.75"
(8) Spindle Speeds, Range 120 to 1800 RPM
(8) Spindle Feeds, Range .006 to .048 IPR
Main Motor, Horsepower 2 HP
Weight, Approximately 2400 LBS
F.O.B. OUR WAREHOUSE
