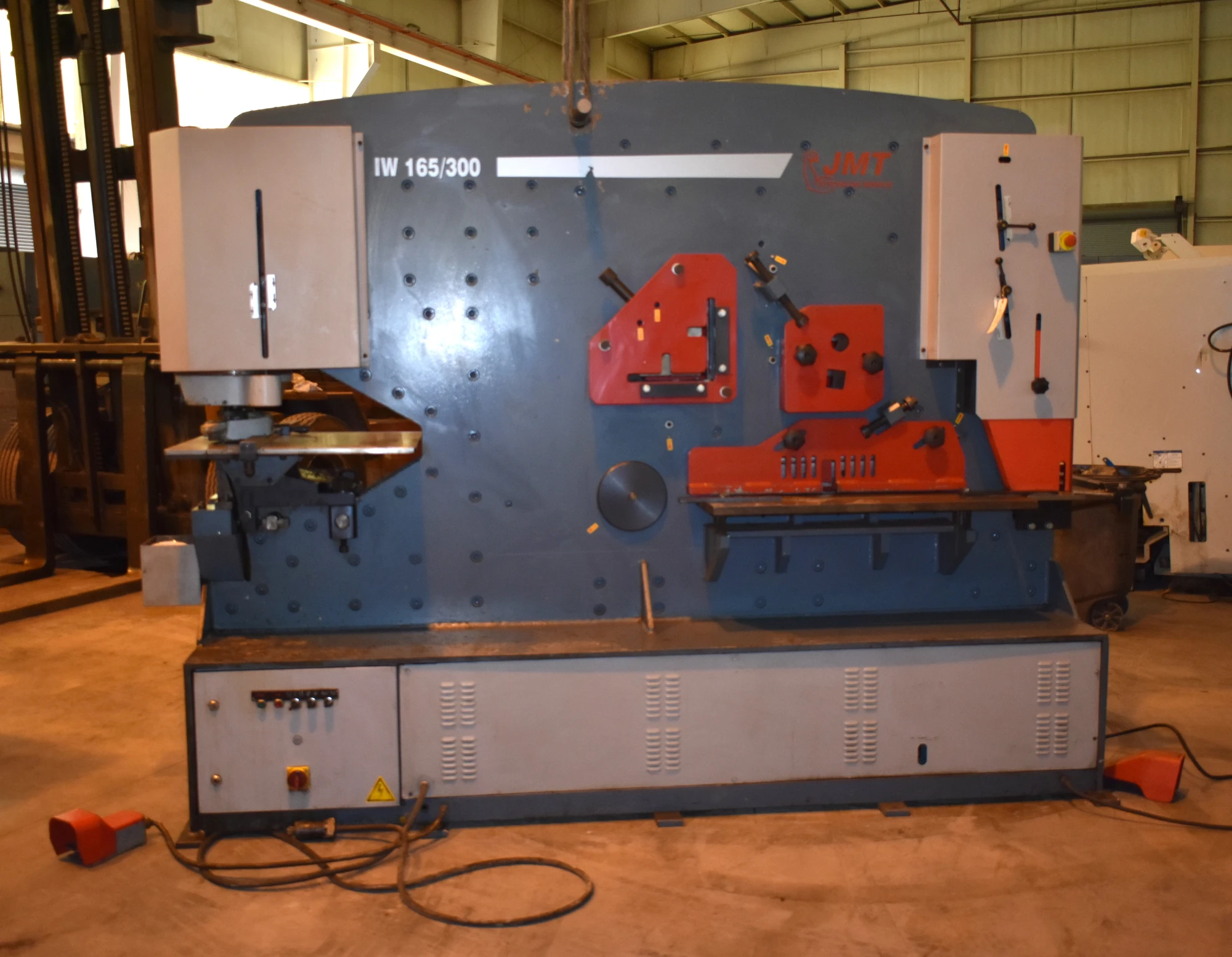

181.5 TON DURMA/JMT DUAL CYLINDER
HYDRAULIC IRONWORKER
New 2008, Serial No 665008002, Model IW165/300
| Tonnage | 181.5 T | 164.654 t |
| Throat | 24" | 609.6 mm |
| Stroke | 5.1" | 129.54 mm |
| Power | 29 hp | 21.6 kW |
| Angle (L1) | 8" | 203.2 mm |
| Angle (L2) | 3" | 76.2 mm |
| Angle (T) | 0.75" | 19.05 mm |
| Dimensions | 130 x 46 x 96 | 130 x 46 x 96 |
| Weight | 17600 | 17600 |
181.5 TON DURMA/JMT DUAL CYLINDER
HYDRAULIC IRONWORKER
New 2008, Serial No 665008002, Model IW165/300
EQUIPPED WITH:
Plate Shear - Section & Bar Shear - Punch
Angle Shear - Notcher
2 Foot Pedals
CATALOGUE SPECIFICATIONS:
Tonnage Capacity, Punch End 181.5 TON
Throat Depth 24"
Table Dimensions 30" x 20"
Punching Capacity thru 1-1/4" Plate 1-1/2"
Punch Stroke Adjustable 3.54" TO 5.1"
Shearing Capacity, Flat Stock 30" x 3/4"
Shearing Capacity, 90-Degree Angle 8" x 8" x 3/4"
Shearing Capacity, 45-Degree Angle 3" x 3" x 5/16"
Shearing Capacity, Round Bars 2.36"
Shearing Capacity, Square Bars 2.36"
Notching Capacity, Width 2.28"
Notching Capacity, Depth 4.33"
Notching Capacity, Plates 2.28"
Strokes Per Minute, 25 SPM
Motor Horsepower 29 HP
Approximate Dimensions ............. 130" x 46" x 96" High
Weight, Approximately.................. 17,600 LBS
PRICE: F.O.B. OUR WAREHOUSE
Tonnage Capacity, Punch End: 181.5 TON
Throat Depth: 24"
Table: 30" x 20"
Shearing Capacity, Flat Stock: 30" x 3/4"
Shearing Capacity, Round Bars: 2.36"
