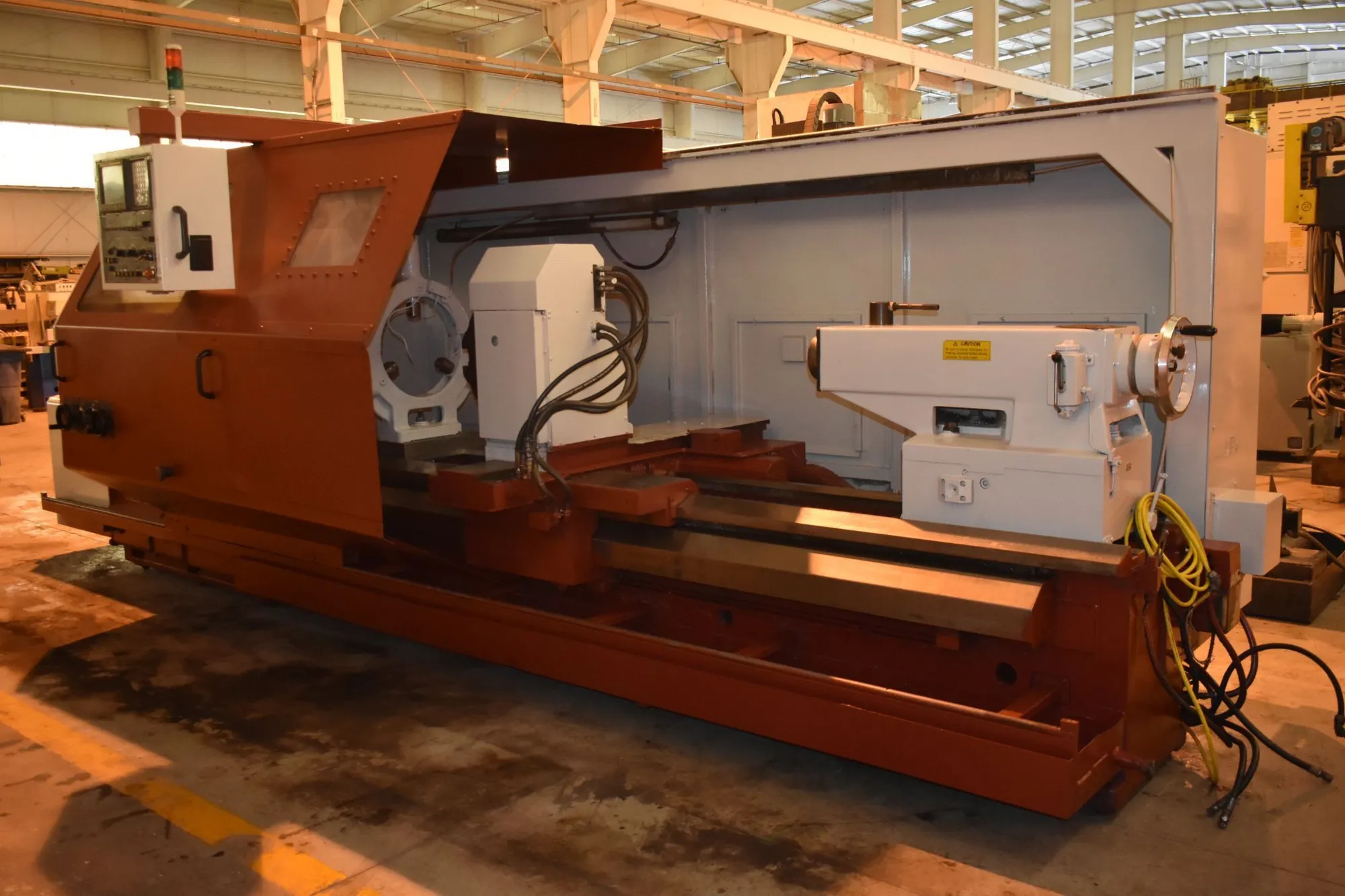

38.5/48.4" x 118" HWACHEON "MEGA-95/3000 HEAVY-DUTY GAP-TYPE
FLATBED CNC LATHE
Serial No 300061, Model MEGA-95/3000
| Swing | 38.5" | 977.9 mm |
| Machining Length | 118" | 2,997.2 mm |
| # Axis | 2 | 2 |
| Chuck Size | 24" | 609.6 mm |
| Bar Capacity | 6" | 152.4 mm |
| Power | 30 hp | 22.4 kW |
| Max RPM | 1,000 RPM | 1,000 RPM |
| Turning Dia | 48.4" | 1,229.4 mm |
| Tailstock | Yes | Yes |
| Live Tooling | No | No |
| Sub Spindle | No | No |
| Dimensions | 236 x 99 | 236 x 99 |
| Weight | 22000 | 22000 |
38.5/48.4" x 118" HWACHEON "MEGA-95/3000 HEAVY-DUTY GAP-TYPE
FLATBED CNC LATHE
Serial No 300061, Model MEGA-95/3000
EQUIPPED WITH:
Fanuc 21-T CNC Control w/CRT (Pendant Mounted)
24" 3-Jaw Chuck - A2-15 Spindle Nose
12-Position Hydraulic Tool Holding Turret On Cross-Slide
A2-15 Spindle Nose
Full Lenth Coolant System (Tank & Pump)
Turbo Systems Chip Conveyor (Full Length)
Heavy-Duty Tailstock w/One Shot Lubrication
CATALOG SPECIFICATIONS:
Hole thru Spindle 6"
Swing Over Bed, Maximum 38.5"
Swing Thru Gap 48.4"
Swing Over Cross Slide 26.2"
Distance Between Centers 118"
Cross Travel (X-Axis) 19.09"
Longitudinal Travel (Z-Axis) 118"
Spindle Speeds, Range 40 to 1000 RPM
Rapid Traverse Rate 236 IPM
Tailstock Quill Travel 10.2"
Motor Horsepower 30 HP
Overall Dimensions, L x W 236" x 99"
Overall Height 85"
Weight Approximately 22000 LBS
F.O.B. OUR WAREHOUSE
