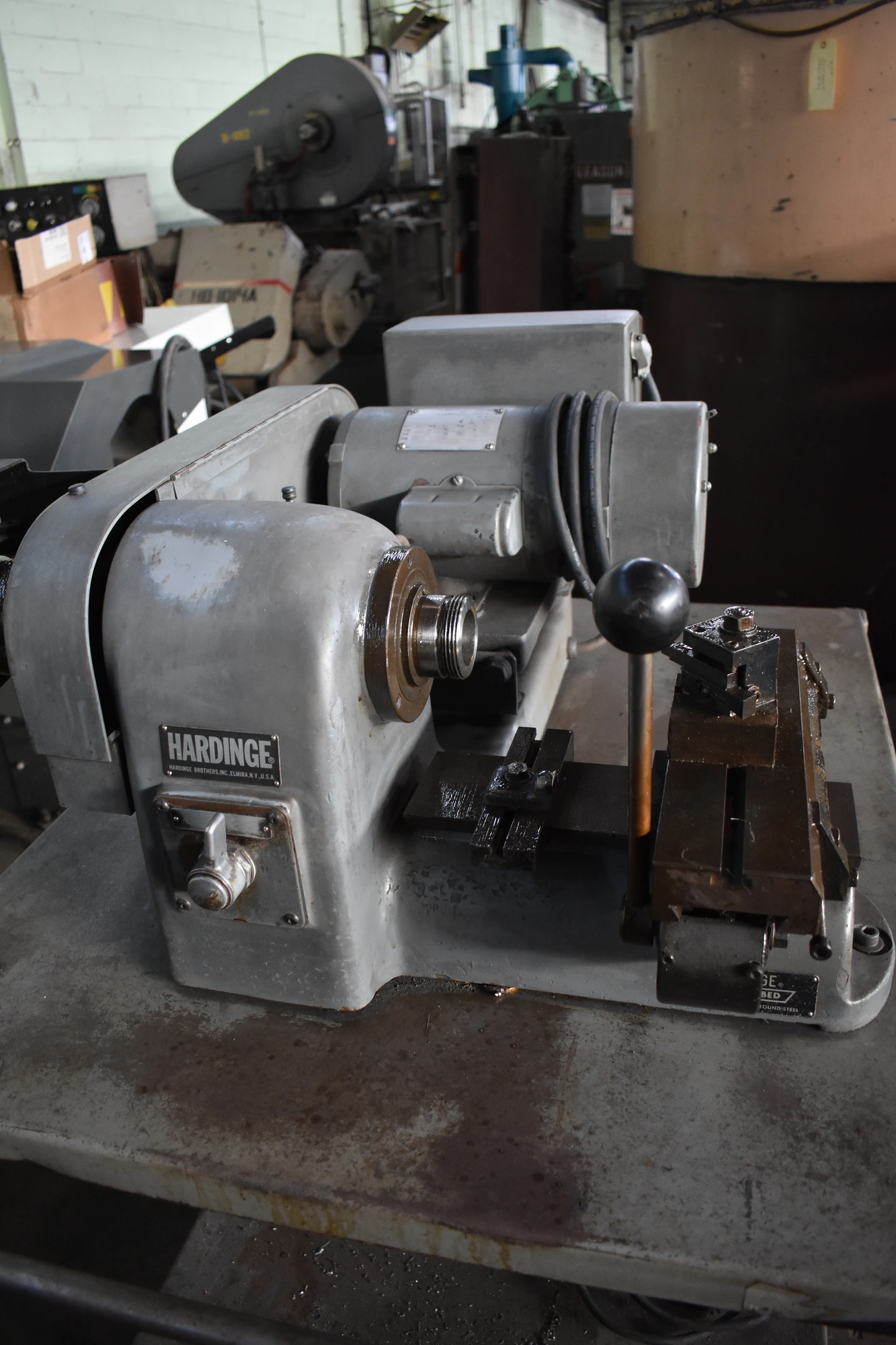

HSL-59 HARDINGE "SUPER-PRECISION" SPEED LATHE
Serial No HSL-5C-5632-T, Model HSL59, Series Super-Precision
| Swing | 9" | 228.6 mm |
| Centers | 10" | 254 mm |
| Power | 0.5 hp | 0.4 kW |
| RPM | 1,750 RPM | 1,750 RPM |
| Dimensions | 43 x 36 | 43 x 36 |
| Weight | 500 | 500 |
HSL-59 HARDINGE "SUPER-PRECISION" SPEED LATHE
Serial No HSL-5C-5632-T, Model HSL59, Series Super-Precision
EQUIPPED WITH:
Quick Collet Closer (Lever Type)
Manual Cross-Slide w/Toolpost & Tool Holder
Hardened And Ground Dovetail Bed
Quick Change Spindle Speed Lever
Brake Release For Free Spindle
Mounted On A Portable Cart
CATALOG SPECIFICATIONS:
Bar Capacity, Round 1.0625"
Collet Capacity (#5C Hardinge), Round 1.0625"
Collet Capacity (#5C Hardinge), Hexagon .875"
Collet Capacity (#5C Hardinge), Square .750"
Swing Over Bed Ways, Rated 9"
Distance Between Centers 10"
Length of Bed from Spindle Face 10"
(3) Spindle Speeds, Range 750 to 3000 RPM
Spindle Motor, Horsepower/RPM 1/2 HP/1750 RPM
Electrical System 220-440/3/60
Overall Dimensions, W x D 43" x 36"
Overall Height 50"
Weight, Approximately 500 LBS
F.O.B. OUR WAREHOUSE
