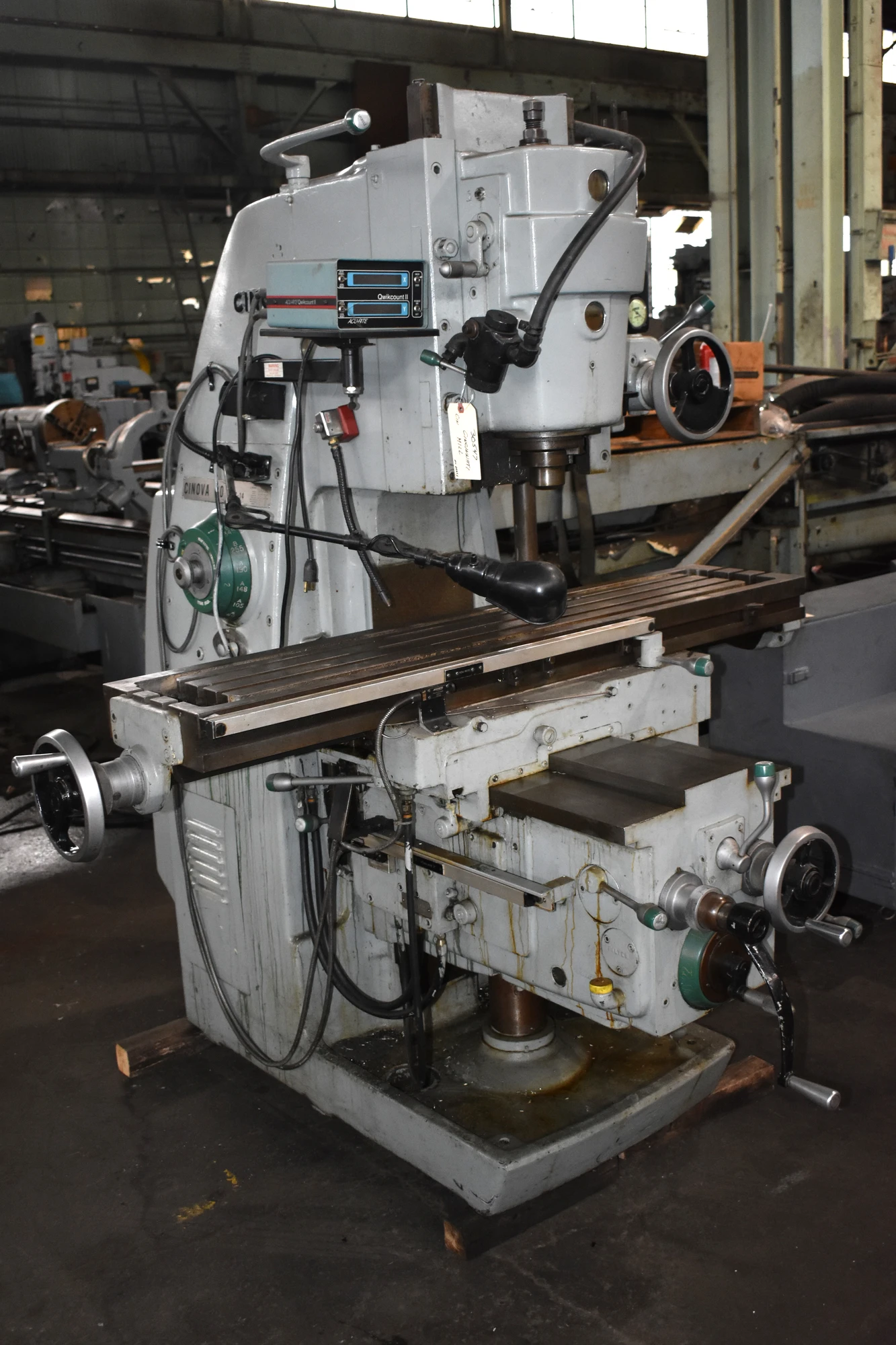

205-12 CINCINNATI-MILACRON "CINOVA 80" VERTICAL MILL
Serial No 10J2V5T-10, Model 205-12, Series Cinova 80, Ltr DH
| Table-W | 12" | 304.8 mm |
| Table-L | 56.5" | 1,435.1 mm |
| Travel-Long | 28" | 711.2 mm |
| Travel-Cross | 10" | 254 mm |
| Power | 5 hp | 3.7 kW |
| RPM | 2,000 RPM | 2,000 RPM |
| Taper | #50 NSTD | #50 NSTD |
| Dimensions | 8'1" x 7'4" x 7'2" | 8'1" x 7'4" x 7'2" |
| Weight | 5600 LBS | 5600 LBS |
205-12 CINCINNATI-MILACRON "CINOVA 80" VERTICAL MILL
Serial No 10J2V5T-10, Model 205-12, Series Cinova 80, Ltr DH
EQUIPPED WITH:
Acu-Rite Quikcount II 2-Axis Digital Readouts
Knee Motor
Power Down-Feed to Head
Vertical Turret Stops (4-Position)
Coolant System (Built-In)
CATALOG SPECIFICATIONS:
Table Dimensions, L x W 56.5" x 12"
Table Longitudinal Travel (X-Axis) 28"
Saddle Cross Travel (Y-Axis) 10"
Knee Vertical Travel (Z-Axis) 14"
Spindle-Head Vertical Travel (Z-Axis) 4"
Spindle-Nose to Table, Maximum 18"
Spindle-Nose, Diameter 5.06"
Spindle Taper #50 NSTD
(24) Spindle Speeds, Range 25 to 2000 RPM
(24) Longitudinal and Cross Feeds 1/4 to 30 IPM
(24) Vertical Head Feeds, Range 1/8 to 15 IPM
Power Rapid Traverse, Long & Cross 150 IPM
Power Rapid Traverse, Vertical 75 IPM
Spindle Motor, Horsepower/RPM 5 HP
Feed Motor, Horsepower 1.25 HP
Electrical System 220-440/3/60
Floor Space Required, W x D 8'1" x 7'4"
Overall Height 7'2"
Weight, Approximately 5600 LBS
F.O.B. OUR WAREHOUSE
