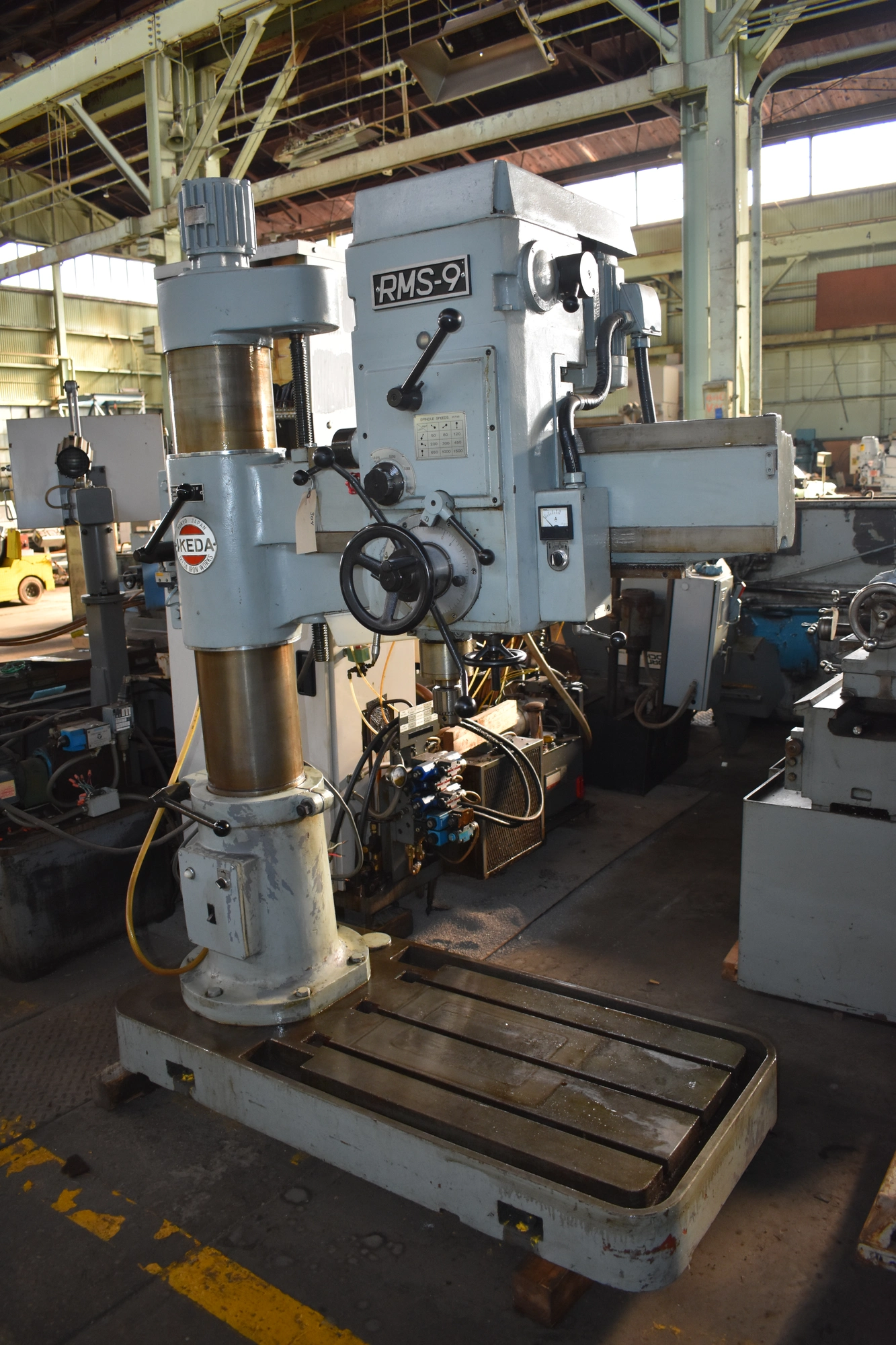

3'9" IKEDA RADIAL DRILL
Serial No 90025, Model RMS-9,
| Arm Length | 3' | 0.9 m |
| Column Dia. | 9" | 228.6 mm |
| Power | 3 hp | 2.2 kW |
| RPM | 1,500 RPM | 1,500 RPM |
| Dimensions | 61 x 28 | 61 x 28 |
| Weight | 3740 | 3740 |
3'9" IKEDA RADIAL DRILL
Serial No 90025, Model RMS-9,
EQUIPPED WITH:
Tapping Capabilities
Plain Type Base
Power Arm Elevation
Coolant System (Built-In Base)
CATALOG SPECIFICATIONS:
Arm Length 3'
Column Diameter 9"
Vertical Spindle Stroke 9"
Spindle-Nose to Base, Minimum 11.5"
Spindle-Nose to Base, Maximum 43"
Column-Face to Spindle, Minimum 11.75"
Column-Face to Spindle, Maximum 3'
Base Working Surface, W x L 23" x 37"
Base Height 6.25"
Spindle Quill Diameter 3.31"
Spindle Nose Diameter 2.25"
Spindle Taper #4 MT
(9) Spindle Speeds, Range 50 to 1500 RPM
(4) Spindle Feeds, Range .003 to .015 IPR
Motor, Horsepower 3 HP
Arm Elevating Motor 1 HP
Floor Space Required, L x W 61" x 28"
Weight, Approximately 3740 LBS
F.O.B. OUR WAREHOUSE
