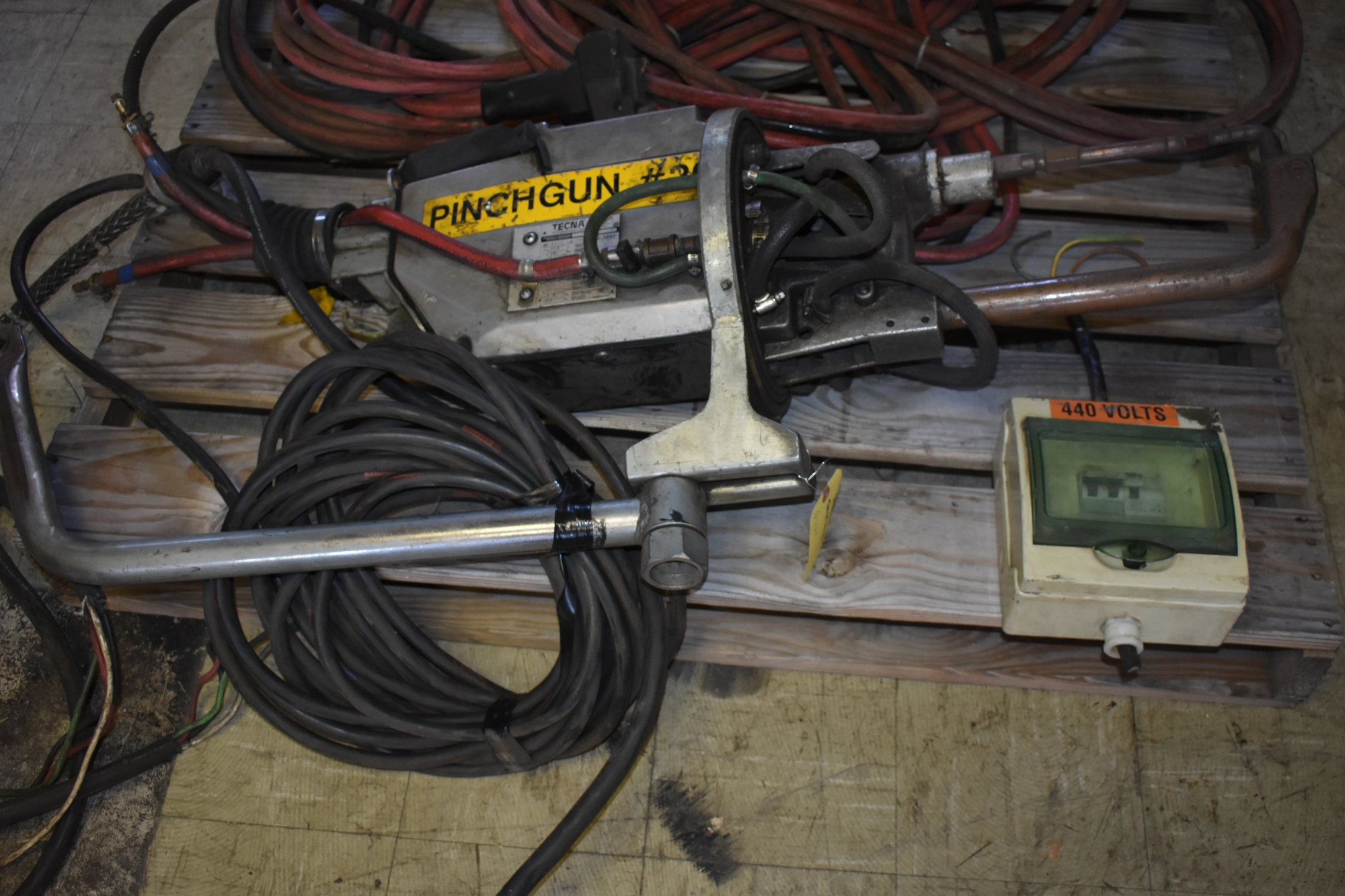

USED 2004 TECNA 3323

63/23 KVA TECNA AIR-OPERATED PORTABLE WELDING GUN

New 2004, Serial No 10219, Model 3323

63/23 KVA TECNA AIR-OPERATED PORTABLE WELDING GUN
New 2004, Serial No 10219, Model 3323

EQUIPPED WITH:
Medium Duty Design
Water Cooling

CATALOG SPECIFICATIONS:
Welding Power Maximum 63 KVA
Welding Power Nominal @ 50% Duty Cycle 23 KVA
Supply Voltage 440 VOLTS
Supply Frequency 60 HZ
Phase SINGLE
Seconday No Load Voltage 3.8 VOLTS
Maximum Short Circuit Current 21 KA
Maximum Force At 6 bar 300 dan
Water Cooling At 2.5 bar 8 l/min
Supply Pressure 6.5 bar
Weight Approximately 117 LBS 53 KG
F.O.B. OUR WAREHOUSE
