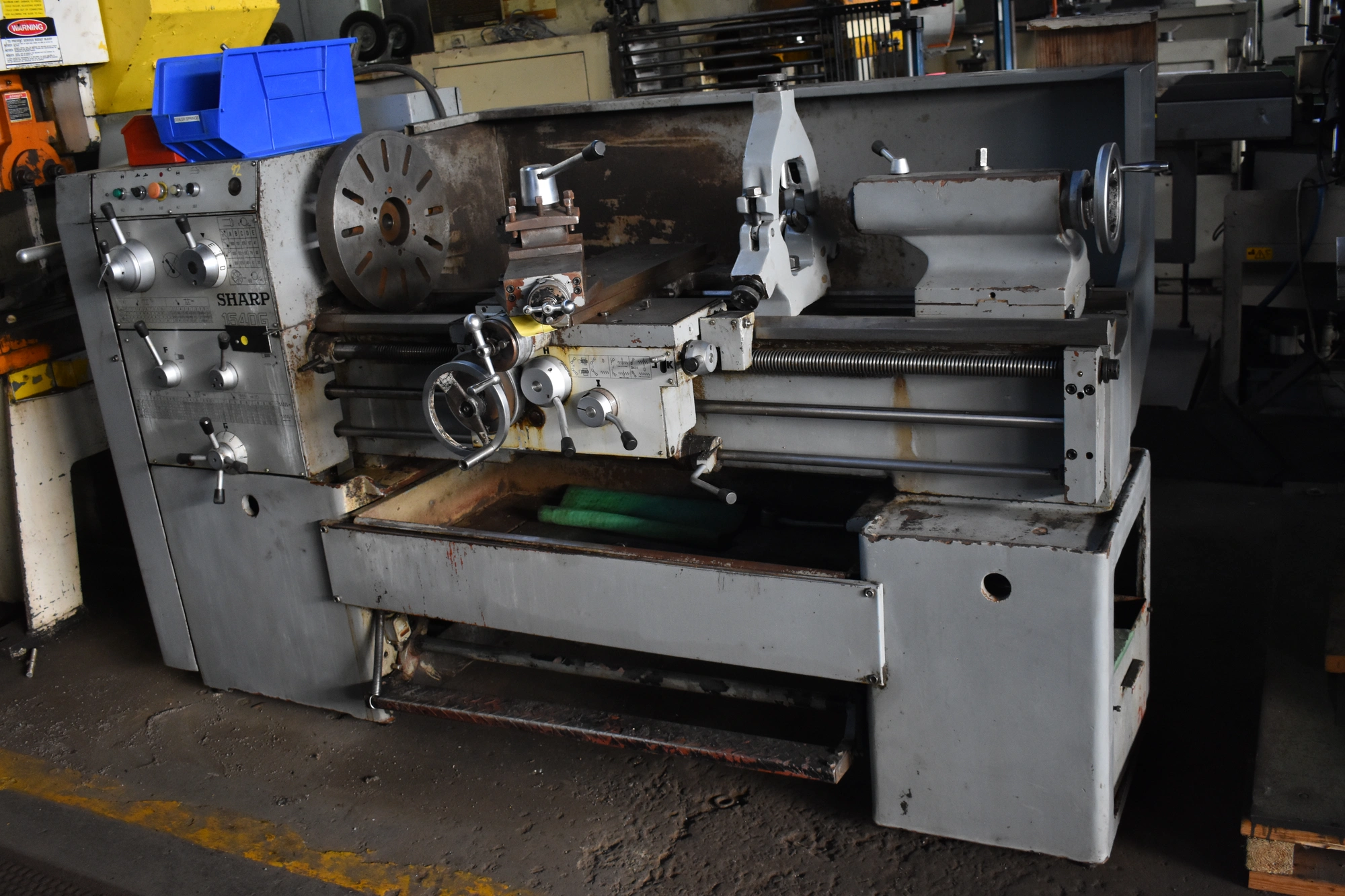

14.2/20" x 40" SHARP GEARED HEAD GAP-BED ENGINE LATHE
Serial No 91685, Model 1540G
| Swing | 20" | 508 mm |
| Centers | 40" | 1,016 mm |
| Spindle Bore | 1.5" | 38.1 mm |
| RPM | 1,800 RPM | 1,800 RPM |
| Swing Over Cross Slide | 8.25" | 209.55 mm |
| Dimensions | 86 x 29 x 47 | 86 x 29 x 47 |
| Weight | 2640 | 2640 |
14.2/20" x 40" SHARP GEARED HEAD GAP-BED ENGINE LATHE
Serial No 91685, Model 1540G
EQUIPPED WITH:
15" Face Plate
Steady Rest - Follow Rest
Inch/Metric Threading
D1-6 Camlock Spindle Nose
Collet Type Chuck Closer - Tool Post
CATALOG SPECIFICATIONS:
Spindle Hole Diameter 1.5"
Swing Over Bed 14.2"
Swing Over Cross Slide 8.25"
Swing In Gap 20"
Distance Between Centers 40"
(12) Spindle Speeds, Range 22 to 1800 RPM
(36) Longitudinal Carriage Feeds .002 to .032 IPR
(36) Cross Slide Cross Feeds .0007 to 0.047 IPR
(72) Thread Changes Inch 2 to 56 TPI
(18) Thread Changes Metric .5 to 9 MM
Tailstock Quill Travel 5.5"
Tailstock Quill Taper 3 MT
Overall Dimensions, L x W 86" x 29"
Overall Height 47"
Weight Approximately 2640 LBS
F.O.B. OUR WAREHOUSE
