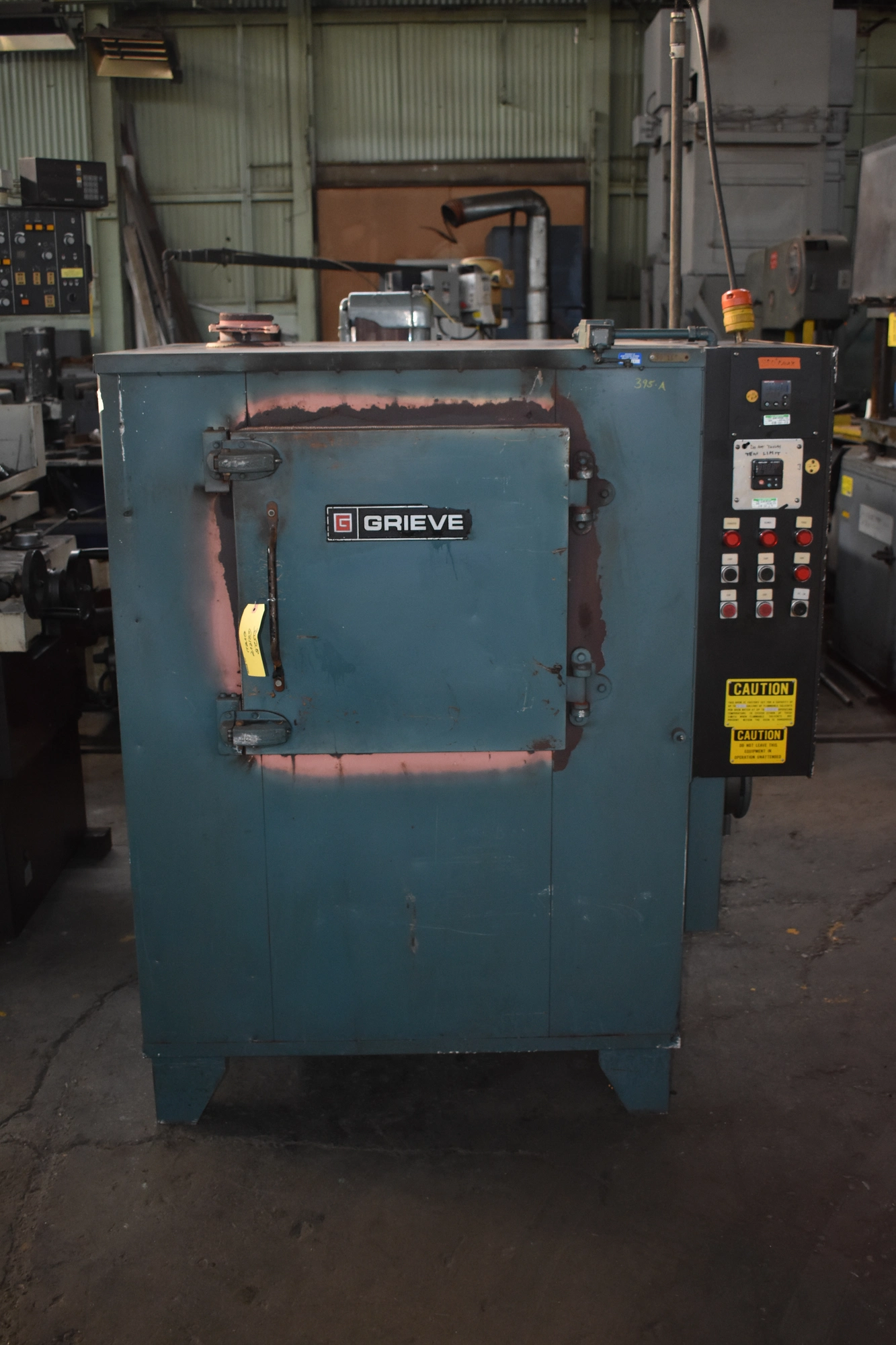

850-DEGREE GRIEVE HEAVY-DUTY ELECTRIC CABINET OVEN
Serial No 470076, Model HA-850, Job No 0387185
| Chamber-W | 20" | 508 mm |
| Chamber-L | 20" | 508 mm |
| Chamber-H | 20" | 508 mm |
| Max Temperature | 850°F | 454.4°C |
| Dimensions | 40 x 36 | 40 x 36 |
| Weight | 880 | 880 |
850-DEGREE GRIEVE HEAVY-DUTY ELECTRIC CABINET OVEN
Serial No 470076, Model HA-850, Job No 0387185
EQUIPPED WITH:
Grieve Temperature Controller
Horizontal Air Flow
Single Door
CATALOG SPECIFICATIONS:
Temperature Rating, Degrees Fahrenheit 850-DEGREES
Work Space Volume 4.6 CU FT
Heat Input Watt Rating 10 KW
Work Space Dimensions, Width 20"
Work Space Dimensions, Depth 20"
Work Space Dimensions, Height 20"
Electrical System 460/3/60
Overall Dimensions, W x D 40" x 36"
Overall Height 58"
Electrical System 460/3/60
Weight Approximately 880 LBS
F.O.B. OUR WAREHOUSE
