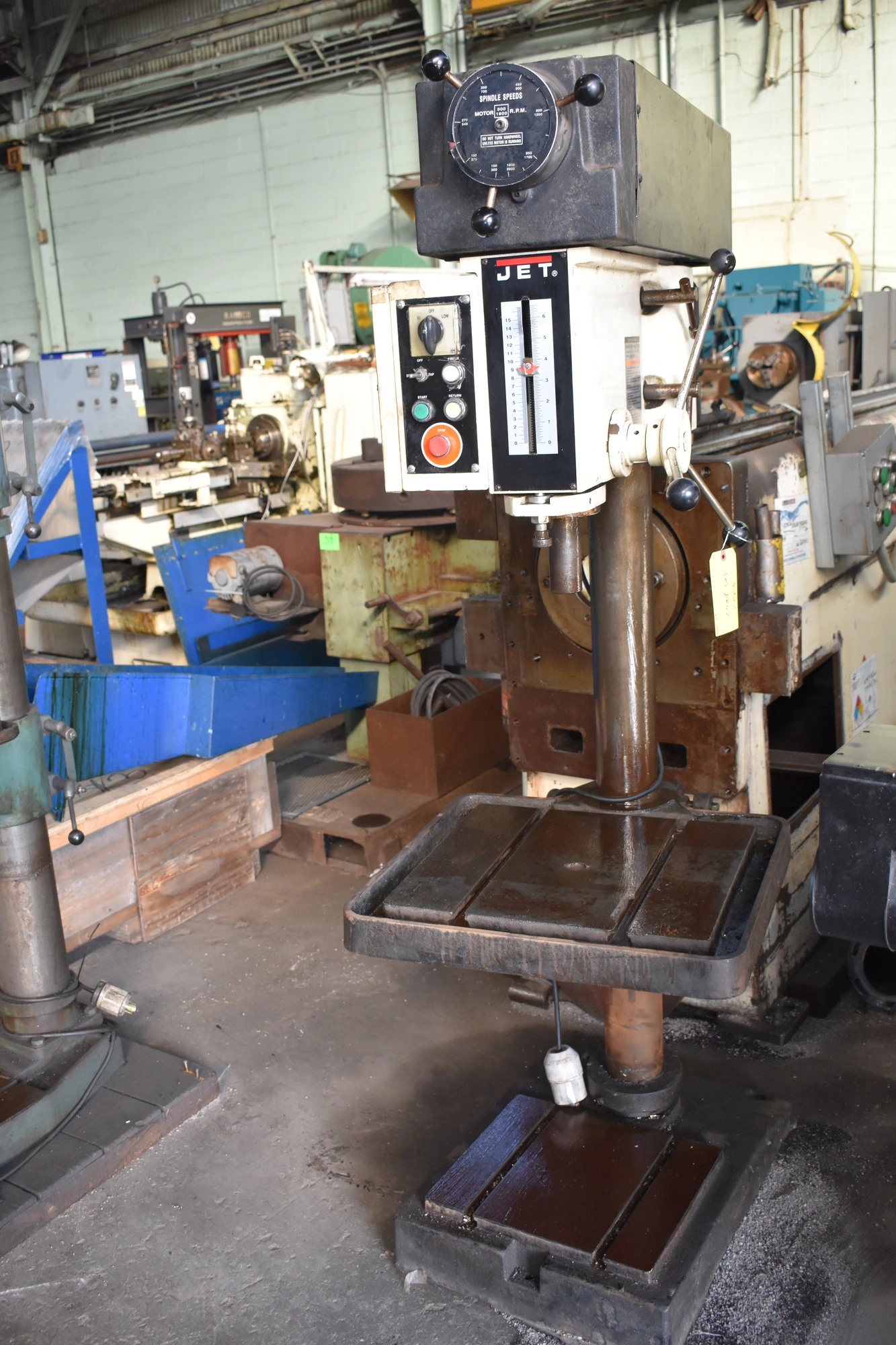

USED JET JDP-20VS-3

20" JET VARIABLE-SPEED FLOOR TYPE SINGLE-SPINDLE DRILL PRESS

Serial No 09021406, Model JDP-20VS-3,

Series "FLOOR-TYPE"

20" JET VARIABLE-SPEED FLOOR TYPE SINGLE-SPINDLE DRILL PRESS
Serial No 09021406, Model JDP-20VS-3,
Series "FLOOR-TYPE"

EQUIPPED WITH:
Variable Speed Head Design
Round-Column Design
Manual Down-Feed to Spindle
Manual Table Height Adjustment

CATALOG SPECIFICATIONS:
Swing Capacity, Maximum 20"
Spindle-Nose to Table, Maximum 30.14"
Spindle-Center to Column 10.44"
Spindle-Center to Base 44.5"
Swing to Center of Circle, Maximum 20"
Table Weight Capacity 154 LBS
Spindle Travel, Manual 6"
Table Travel 20"
Table Working Surface, W x L 18.75" x 22"
Base Working Surface, W x L 19" x 27"
Spindle Speeds Range, Variable 300 to 2000 RPM
Spindle Motor, Horsepower/RPM 2/1 HP
Electrical System 460/3/60
Overall Height 80
Weight, Approximately 780 LBS

NOTE: Replacement Price $5399.00
F.O.B. OUR WAREHOUSE
