24" ENCO GEARED-HEAD ROUND COLUMN SINGLE-SPINDLE DRILL PRESS
Serial No 4007, Model 127-3040,
| Swing | 24" | 609.6 mm |
| Capacity (Mild Steel) | 1.5" | 38.1 mm |
| Power | 2 hp | 1.5 kW |
| RPM | 950 RPM | 950 RPM |
| Dimensions | 82 x 19.5 x 16 | 82 x 19.5 x 16 |
| Weight | 810 | 810 |
24" ENCO GEARED-HEAD ROUND COLUMN SINGLE-SPINDLE DRILL PRESS
Serial No 4007, Model 127-3040,
EQUIPPED WITH:
Geared Head Design
Round-Column Design
Power Down-Feed to Spindle
Manual Table Elevation - Manual Head Height Adjustment
Two-Speed Motor
Foot Pedal For Tapping
CATALOG SPECIFICATIONS:
Drilling Capacity, Mild Steel 1.5"
Spindle-Nose to Table, Maximum 27.625"
Spindle-Center to Column 12"
Swing to Center of Circle, Maximum 24"
Table Working Surface, W x L 19.5" x 15.5"
Base Working Surface, W x D 16" x 16.5"
Column Diameter 5.5"
Quill Travel, Maximum 7"
Auto Feed 1.25"
Spindle Taper #3 MT
(8) Spindle Speeds, Range 80 to 950 RPM
Spindle Feeds .004 & .007 IPR
2-Speed Spindle Motor, Horsepower 2 HP
Electrical System 220/3/60
Overall Height 82"
Weight, Approximately 810 LBS
F.O.B. OUR WAREHOUSE

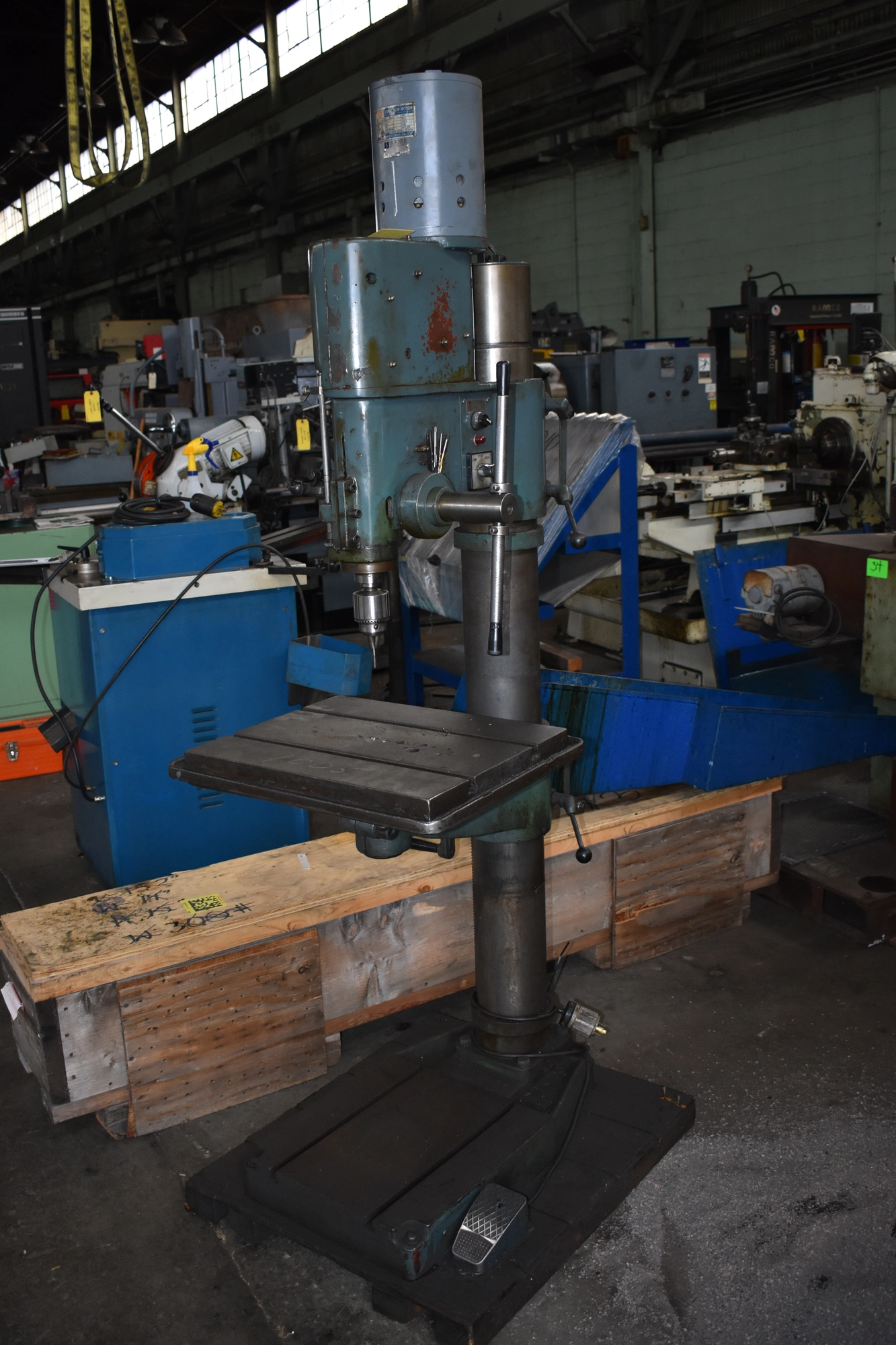

ENCO DRILL PRESS
MODEL# 127-3040
SERIAL# 4007
