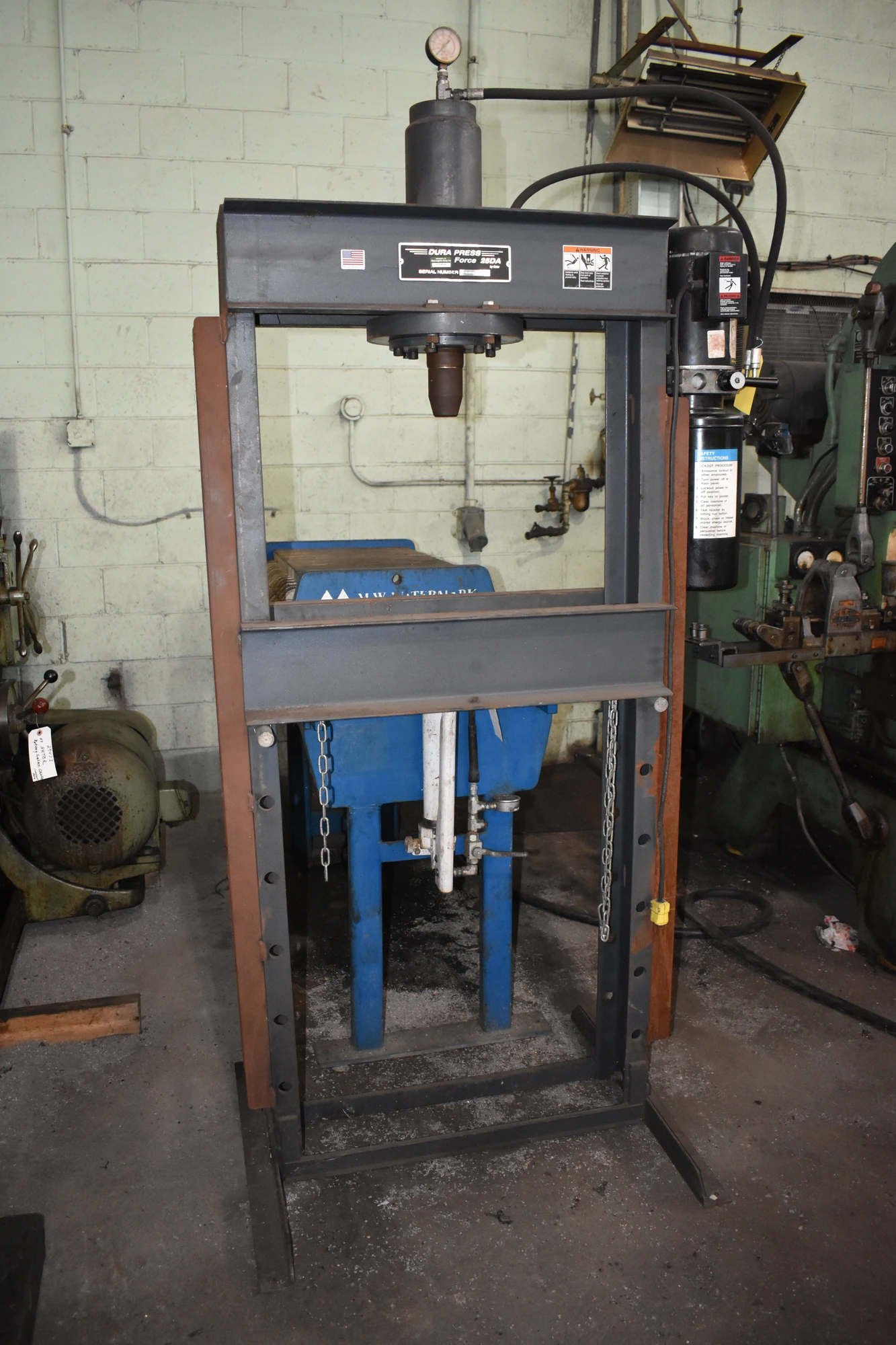

25 TON DAKE DURA-PRESS "H"-FRAME HYDRAULIC SHOP PRESS
Serial No 200597, Model 58, Series "HAND-OPERATED"
| Dimensions | 55 x 36 x 88 | 55 x 36 x 88 |
| Weight | 570 | 570 |
25 TON DAKE DURA-PRESS "H"-FRAME HYDRAULIC SHOP PRESS
Serial No 200597, Model 58, Series "HAND-OPERATED"
EQUIPPED WITH:
Single Phase Electrics
Pressure Gauge
Haldex Hydraulic Pump
Adjustable Bed
Lever Control Ram Advance
Double Acting Cylinder
CATALOG SPECIFICATIONS:
Tonnage Capacity 25 TON
Ram Travel 10"
Distance Ram to Table, Maximum 44"
Distance Ram to Table, Minimum 8"
Width Between Uprights 28"
Horizontal Workhead Travel 20.75"
Distance Between Channels 5"
Ram Pressing Speed 10 IPM
Ram Return Speed 19 IPM
Motor Horsepower 1 HP/3450
Electrica System 115-230/1/60
Base Dimensions, W x D 55" x 36"
Overall Height 88"
Weight, Approximately 570 LBS
NOTE: Replacement Price Is Approximately $8140.00.
F.O.B. OUR WAREHOUSE
