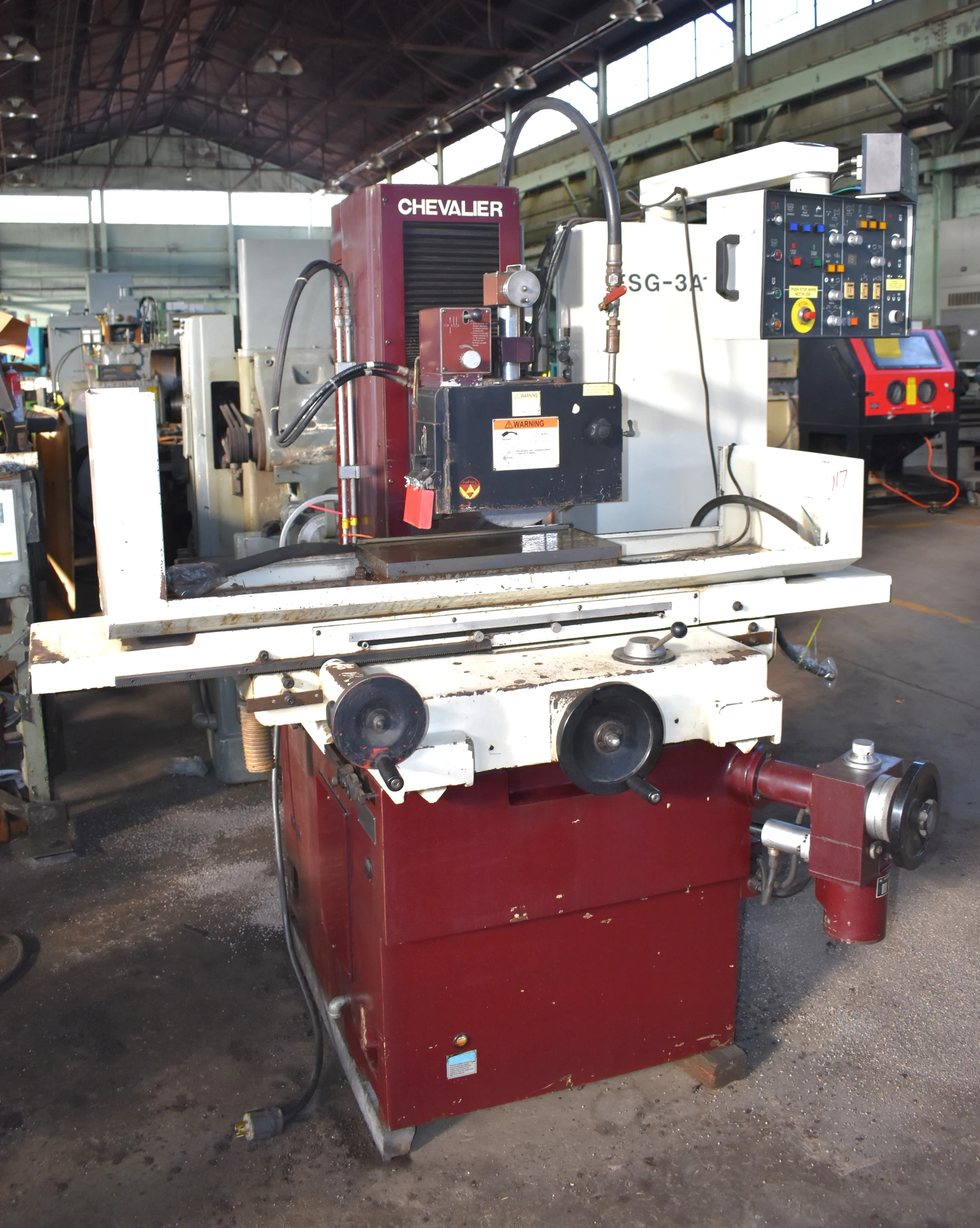

10" X 20" CHEVALIER 3-AXIS AUTOMATIC
HYDRAULIC HORIZONTAL-SPINDLE SURFACE GRINDER
Serial No N3937003, Model FSG-3A1020,
| Table-W | 10" | 254 mm |
| Table-L | 20" | 508 mm |
| Horz/Vert | Horz | Horz |
| Power | 2 hp | 1.5 kW |
| Grinding Wheel Width | 0.75" | 19.05 mm |
| Grinding Wheel Dia. | 8" | 203.2 mm |
| Dimensions | 98 x 55 | 98 x 55 |
| Weight | 3306 | 3306 |
10" X 20" CHEVALIER 3-AXIS AUTOMATIC
HYDRAULIC HORIZONTAL-SPINDLE SURFACE GRINDER
Serial No N3937003, Model FSG-3A1020,
EQUIPPED WITH:
Microprocessor Controller (3-Axis Fully Automatic)
Sony LG10 2-Axis Digital Readout
Overhead Parallel Grinding Wheel Dresser (Hydraulic)
10" x 20" Electro-Magnetic Chuck
Automatic Downfeed w/Micro Downfeed Device
Automatic Lube System
Coolant System w/Paper Separator
CATALOG SPECIFICATIONS:
Table Working Surface, W x L 10" x 20"
Grinding Width Capacity, Maximum 10"
Grinding Length Capacity, Maximum 20"
Height Spindle Centerline To Table, Maximum 18"
Grinding Wheel Diameter, Standard 8"
Grinding Wheel Width, Standard .75"
Grinding Wheel Hole Diameter 1.25"
Table Longitudinal Travel Hydraulic 22.875"
Table Longitudinal Travel Manual 24.375"
Table Cross Travel, Automatic 11.44"
Table Cross Travel, Manual 11.75"
Table Longitudinal Feeds, Range 16 to 82 FPM
Table Cross In-Feeds, Range .02 to 0.4 IPR
Spindle Vertical Feeds, Automatic .0001 to .002 IPR
Power Rapid Cross Traverse 38 IPM
Power Rapid Vertical Traverse 13 IPM
Grinding Wheel Spindle Motor 2 HP
Floor Space Required, L x D 98" x 55"
Overall Height 68"
Weight, Approximately 3306 LBS
F.O.B. OUR WAREHOUSE
