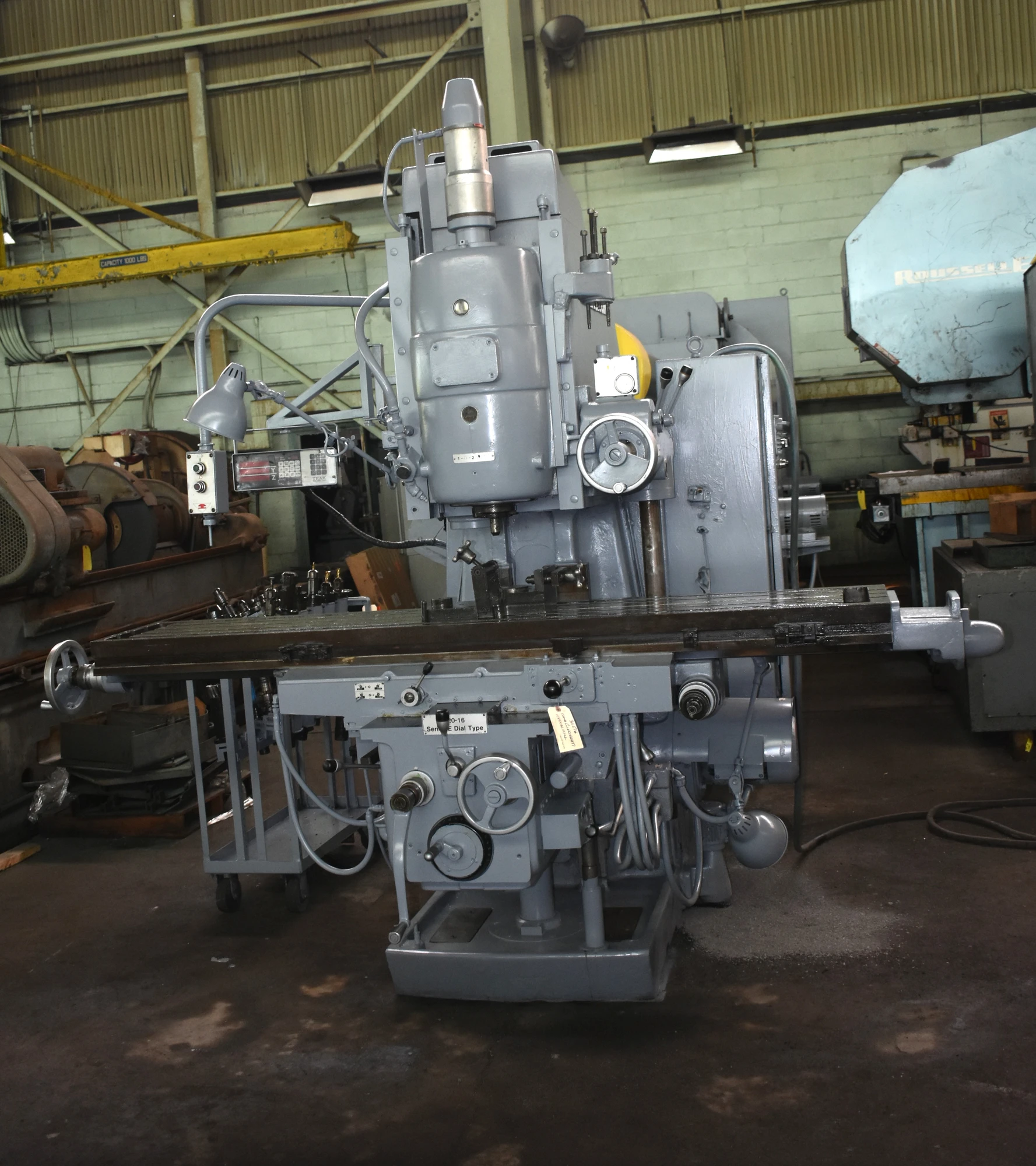

520-16 CINCINNATI-MILACRON "DIAL-TYPE" VERTICAL MILL
Serial No 11A45VLAKE-49, Model 520-16, Series E,
| Table-W | 16.25" | 412.75 mm |
| Table-L | 87.75" | 2,228.8 mm |
| Travel-Long | 50" | 1,270 mm |
| Travel-Cross | 16" | 406.4 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 1,600 RPM | 1,600 RPM |
| Taper | 50 NSTD | 50 NSTD |
| Dimensions | 16.25 x 87.75 | 16.25 x 87.75 |
| Weight | 12500 | 12500 |
520-16 CINCINNATI-MILACRON "DIAL-TYPE" VERTICAL MILL
Serial No 11A45VLAKE-49, Model 520-16, Series E,
EQUIPPED WITH:
Trak 2-Axis Digital Readouts
Power Draw Bar - Hard Ways
Power Down-Feed to Head - Turret Depth Stop
Automatic Backlash Eliminator
Coolant System (Built-In)
Rack Full Of Tooling
CATALOG SPECIFICATIONS:
Table Dimensions (Overall), W x L 16.25" x 87.75"
Table Working Surface, W x L 16.25" x 87.75"
Table Longitudinal Travel (X-Axis) 50"
Saddle Cross Travel (Y-Axis) 16"
Knee Vertical Travel (Z-Axis) 14"
Spindle-Head Vertical Travel (Z-Axis) 6"
Spindle-Nose to Table, Minimum 0"
Spindle-Nose to Table, Maximum 20"
Spindle-Center to Column 18"
Spindle Taper #50 NSTD
(24) Spindle Speeds, Range 16 to 1600 RPM
(32) Longitudinal and Cross Feeds 3/8 to 90 IPM
(32) Vertical Head Feeds, Range 3/16 to 45 IPM
(32) Vertical Knee Feeds, Range 3/16 to 45 IPM
Power Rapid Traverse, Long & Cross 150 IPM
Power Rapid Traverse, Vertical 75 IPM
Spindle Motor, Horsepower 20 HP
Feed Motor, Horsepower 5 HP
Weight, Approximately 12500 LBS
F.O.B. OUR WAREHOUSE
