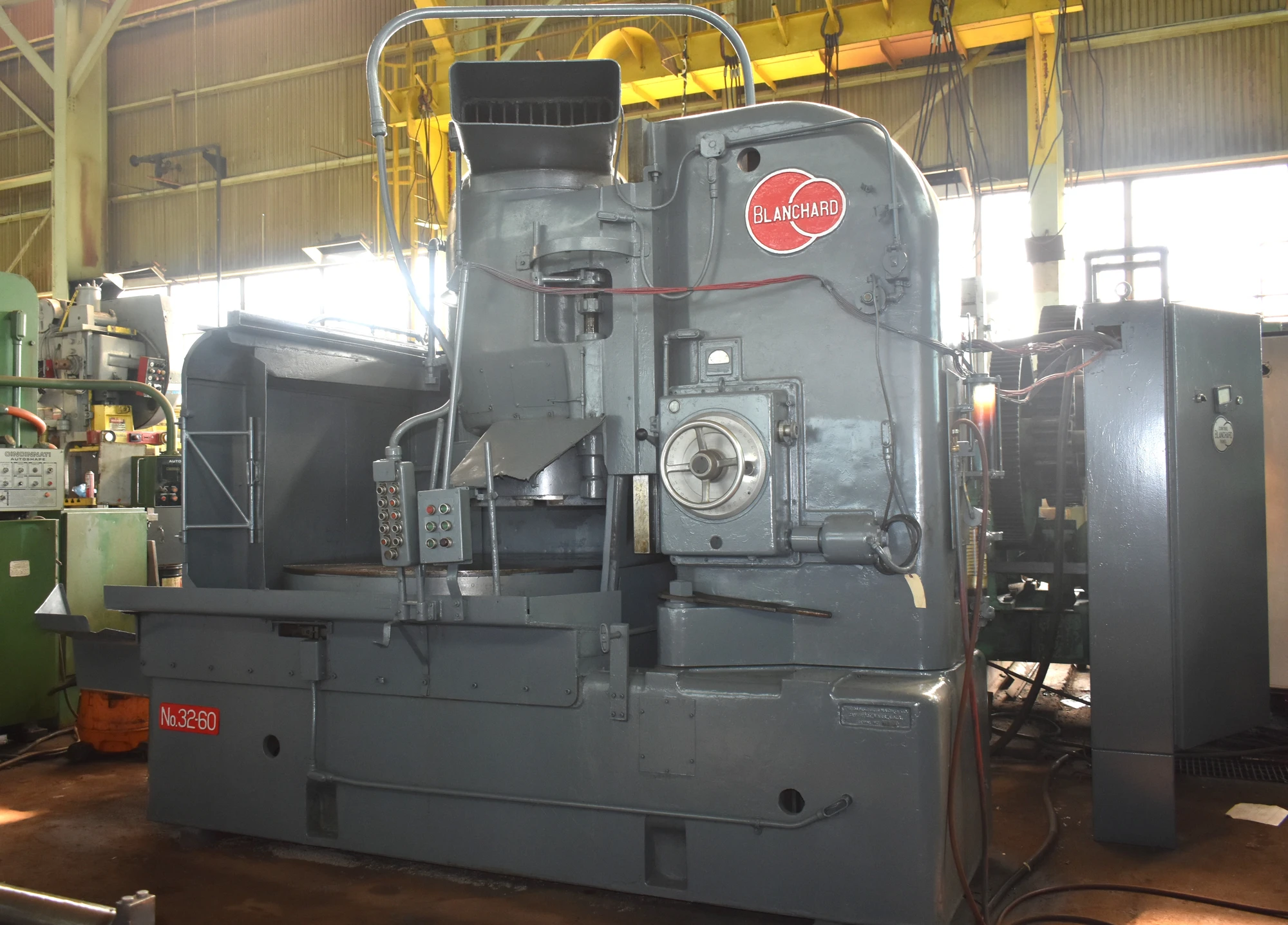

60" BLANCHARD VERTICAL-SPINDLE ROTARY SURFACE GRINDER
Serial No 10738, Model 32-60
| Chuck Size | 60" | 1,524 mm |
| Horz/Vert | Vert | Vert |
| Power | 100 hp | 74.6 kW |
| Under Wheel | 24" | 609.6 mm |
| Grinding Wheel Dia. | 32" | 812.8 mm |
| Dimensions | 12'4 x 7'1 x 10'9 | 12'4 x 7'1 x 10'9 |
| Weight | 34000 LBS | 34000 LBS |
60" BLANCHARD VERTICAL-SPINDLE ROTARY SURFACE GRINDER
Serial No 10738, Model 32-60
EQUIPPED WITH:
60" Diameter Magnetic Chuck w/Variable Neutrofier
32" Cortland Segmented Grinding Wheel w/(7) Segments
100 HP Spindle Motor - 24" Vertical Range
Power Rapid Raise & Lower To Wheelhead (Interlocked
With Feed) - Standard Dry Base Design
Trabon Lubrication System
CATALOG SPECIFICATIONS:
Magnetic Chuck, Diameter 60"
Magnetic Chuck Work Load Capacity 6000 LBS
Grinding Vertical Range, Maximum 24"
Grinding Wheel Speed 514 RPM
Chuck Speeds, Range 5.6 to 20.7 RPM
Power Down Feeds, Range .004 to .080 IPM
Down Feed Before Feed Trips, Max .198"
Spindle Motor, Horsepower 100 HP
Chuck Rotation Motor 5 HP
Electrical System 440/3/60
Overall Dimensions, L x W 12'4" x 7'1"
Overall Height 10'9"
Weight, Approximately 34000 LBS
F.O.B. OUR WAREHOUSE
