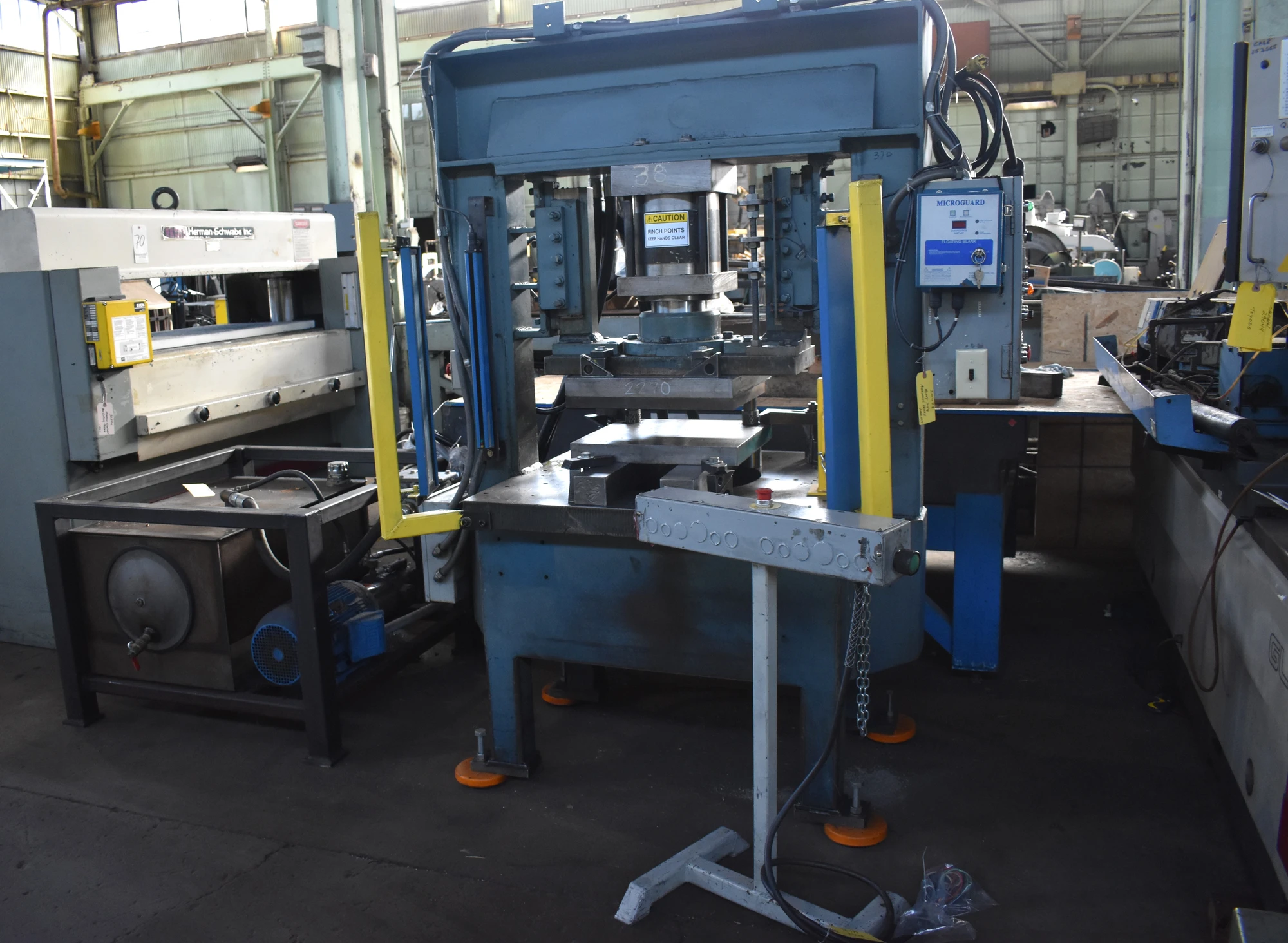

75 TON PARKER HEAVY-DUTY H-FRAME HYDRAULIC SHOP PRESS w/10 HP PARKER PUMP - VICKERS VALVES

75 TON PARKER HEAVY-DUTY H-FRAME HYDRAULIC SHOP PRESS

75 TON PARKER HEAVY-DUTY H-FRAME HYDRAULIC SHOP PRESS

EQUIPPED WITH:
10 HP Parker Denison #PUP233OR221 Hydraulic Pump & Tank
Vickers Valves
18" x 17" Removable Die Set

CATALOG SPECIFICATIONS:
Tonnage Capacity, Approximately 75 TON
Stroke Length, Approximately 8"
Height Ram To Table 12"
Bed Area, L-R x F-B 37" x 33"
Distance Between Housings 37"
Hydraulic Cylinder Diameter 6"
PSI Rating, Maximum 3000 PSI
Motor Horsepower 10 HP/1760 RPM
Overall Press Dimensions, W x D 70" x 48"
Overall Press Height 82"
Hydraulic Unit Dimensions, W x D 42" x 50"

NOTE: These Specifications Are As Taken From Previous Owners Records
And A Close Physical Inspection Of The Machine.
F.O.B. OUR WAREHOUSE
