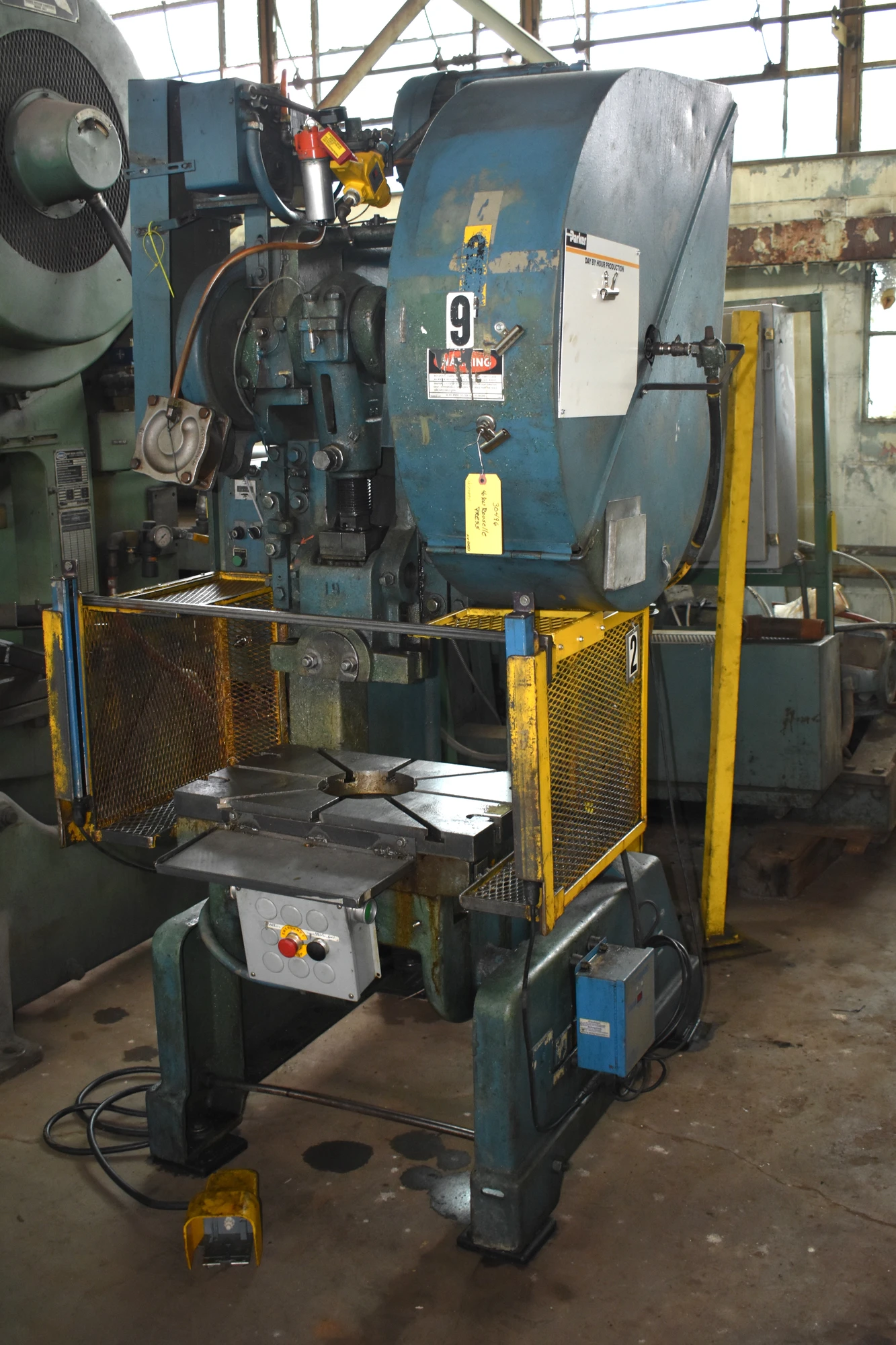

40 TON ROUSSELLE O.B.I. PRESS
Serial No. 23894, Model 4
| Tonnage | 40 T | 36.287 t |
| Stroke | 4" | 101.6 mm |
| Shut Height | 11" | 279.4 mm |
| Bed W | 26" | 660.4 mm |
| Bed L | 16" | 406.4 mm |
| SPM | 105 strokes/min. | 105 strokes/min. |
| Air Clutch (Yes/No) | Yes | Yes |
| Type (BG, Double Action, FW) | Flywheel | Flywheel |
| Dimensions | 56 x 48 | 56 x 48 |
| Weight | 4300 | 4300 |
40 TON ROUSSELLE O.B.I. PRESS
Serial No. 23894, Model 4
EQUIPPED WITH:
Air Clutch & Brake
Flywheel Type Design
One Shot Lubrication
26.5" x 16" x 2" T-Slotted Bolster Plate
CATALOG SPECIFICATIONS:
Tonnage Capacity 40 TON
Stroke Length 4"
Shut Height, (SDAU) 11"
Slide Adjustment 3.5"
Bed Area, L-R x F-B 26" x 16"
Bolster Area, L-R x F-B 26,5" x 16"
Opening in Bed, L-R x F-B 14" x 10"
Width of Opening in Back 16"
Throat Depth 9"
Distance from Bed to Floor 32"
Strokes per Minute 105 SPM
Motor Horsepower 3 HP
Overall Dimensions, W x L 56" x 48"
Weight, Approximately 4300 LBS
NOTE: Previous Owner Removed Feed Equipment & Light Curtains.
F.O.B. OUR WAREHOUSE
