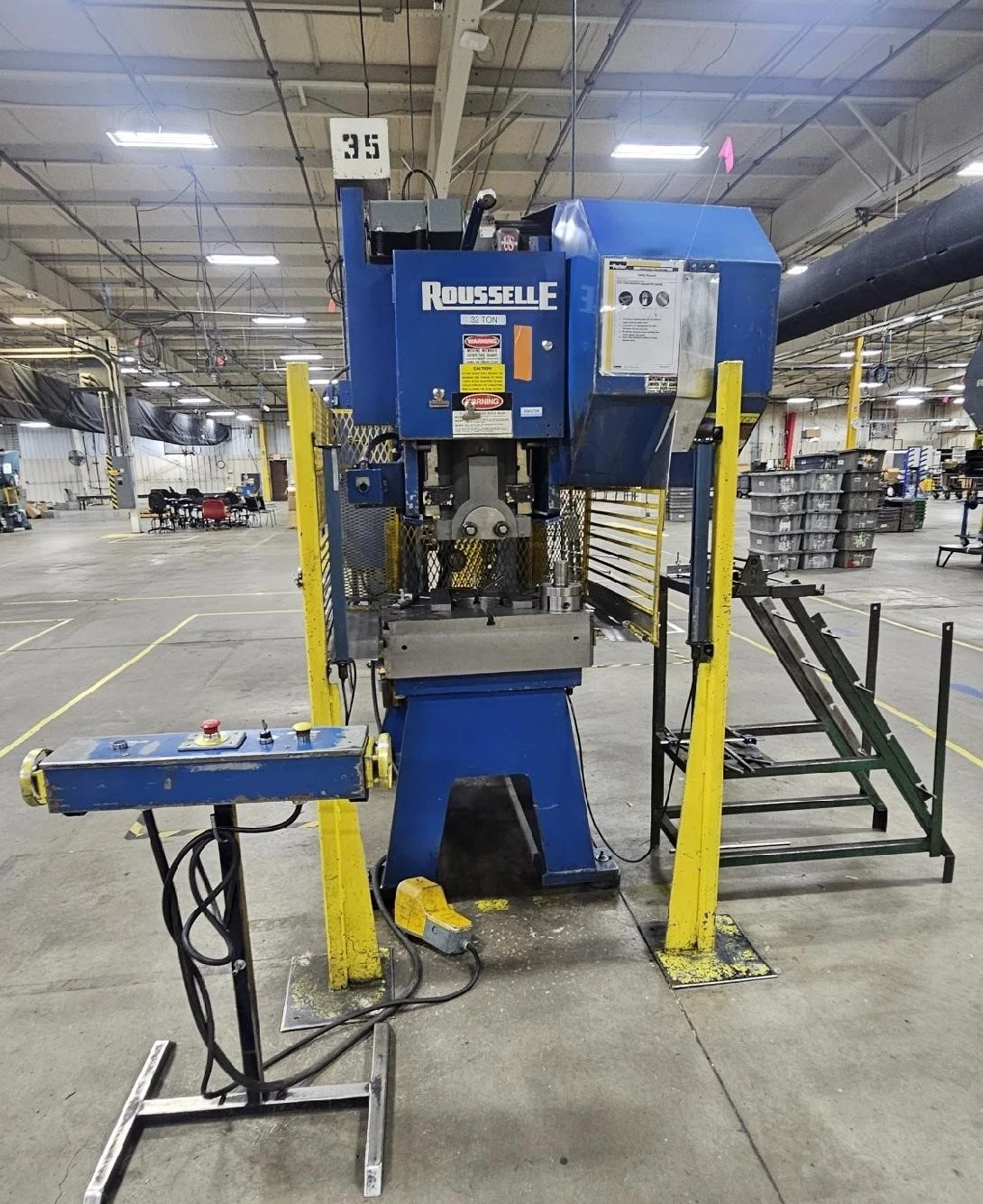

32 TON HEIM ROUSELLE OPEN BACK DEEP-THROAT GAP FRAME PRESS
Serial No P-33019, Model G1-32-4D.T.
| Tonnage | 32 T | 29.03 t |
| Stroke | 2" | 50.8 mm |
| Shut Height | 14.5" | 368.3 mm |
| Power | 3 hp | 2.2 kW |
| Bed W | 15" | 381 mm |
| Bed L | 24" | 609.6 mm |
| SPM | 140 strokes/min. | 140 strokes/min. |
| Air Clutch (Yes/No) | Yes | Yes |
| Dimensions | 97"x37"x49" | 97"x37"x49" |
32 TON HEIM ROUSELLE OPEN BACK DEEP-THROAT GAP FRAME PRESS
Serial No P-33019, Model G1-32-4D.T.
EQUIPPED WITH:
18" Stationary Fabricated Steel Deep-Throat Frame
MicroGuard Self Diagnostic Programmable Logic Controller (PLC)
Air Clutch & Brake
Air Counterbalance
Power Ram Adustment
Bijur Automatic Lubrication System
26" x 20" x 7" T-Slotted Bolster Plate
CATALOG SPECIFICATIONS:
Tonnage Capacity 32 TON
Stroke Length 2"
Shut Height, (SDAU) 14.5"
Slide Adjustment 2.5"
Slide Area, L-R x F-B 12" x 9"
Bed Area, L-R x F-B 24" x 15"
Opening In Bed, L-R x F-B 14" x 7"
Throat Depth 18"
Width Of Opening In Back 16"
Strokes Per Minute 140 SPM
Motor, Horsepower 3 HP
Electrical System 220-440/3/60
Floor Space At Base, L-R x F-B 37" x 49"
Overall Height 97"
NOTE: Previous Owner Removed Feed Equipment & Light Curtains.
F.O.B. OUR WAREHOUSE
