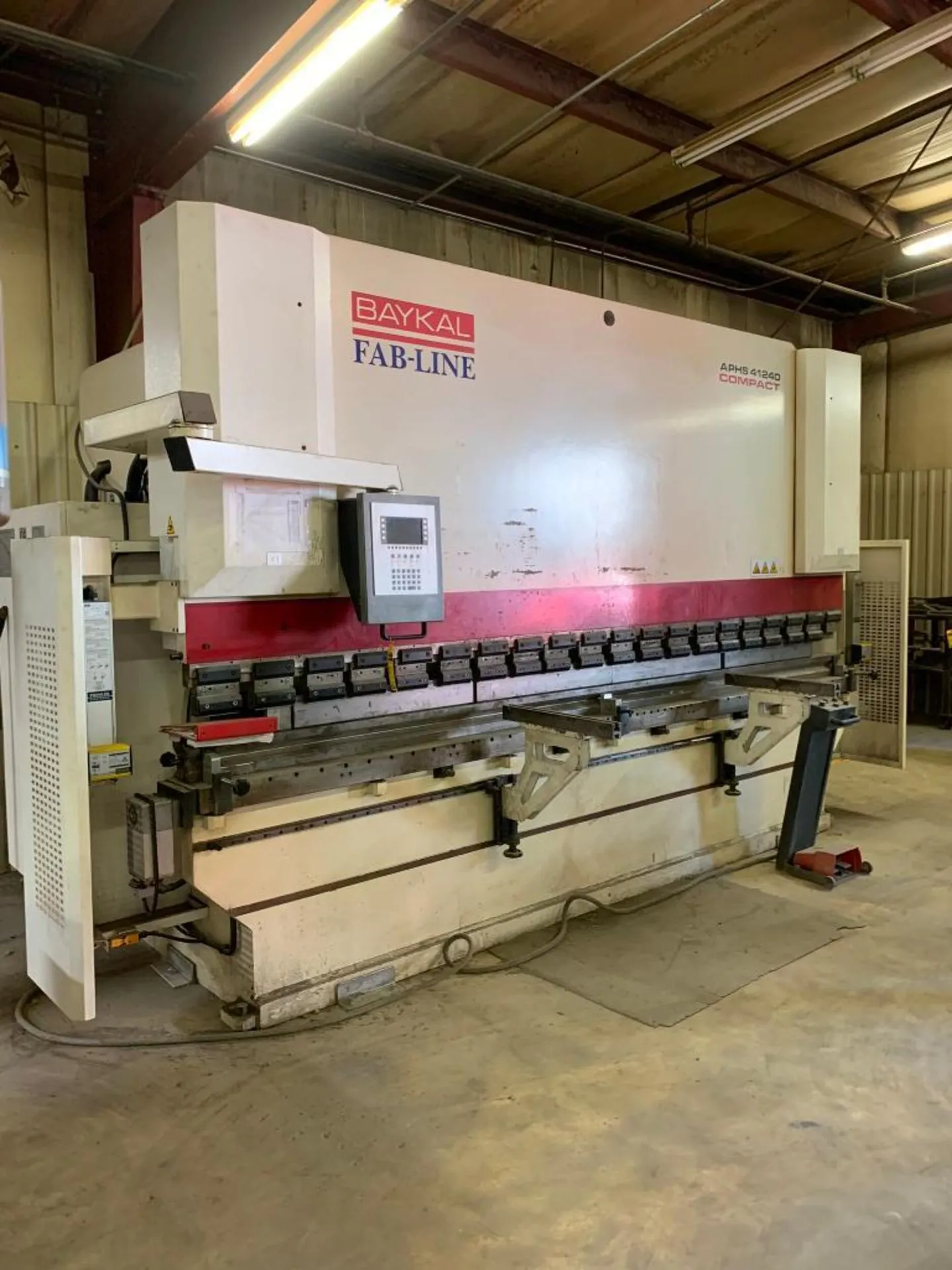

USED 2015 FAB-LINE BAYKAL APHS 41240

161" FAB-LINE/BAYKAL 240-TON CNC HYDRAULIC PRESS
BRAKE
New 2015, Serial No 22442, Model APHS41240

EQUIPPED WITH:
Pendant Mounted CNC Control
Dual Footswitch Operation Console w/Emergency Stop
2-Axis CNC Back Gauge (X,R)
Power Crowning
(2) Front Arm Supports
Euro-Style Top Clamp Tool Holders
Multi-Vee Die Block
NO PIT REQUIRED

CATALOG SPECIFICATIONS:
Tonnage Capacity, Rated 240 TONS 2400 kN
Overall Bending Length 161" 4100 MM
Distance Between Housings 139.7" 3550 MM
Stroke Length, Maximum 10.2" 260 MM
Daylight Open Height 20.86" 530 MM
Throat Depth 16.1" 410 MM
Ram Speed, Approach 5.9 IPS 150 MMPS
Ram Speed, Working 0.39 IPS 10 MMPS
Ram Speed, Return 3.94 IPS 100 MMPS
Top Tool Weight 330 LBS 150 KG
Bottom Tool Weight 440 LBS 200 KG
Motor Horsepower/KW Rating 29.5 HP 22 KW
Overall Dimensions, Length 205" 5200 MM
Overall Dimensions, Width 71" 1800 MM
Overall Height .......... 110" 2800 MM
Weight Approximately .......... 30800 LBS 1400 KGS
F.O.B. OUR WAREHOUSE
