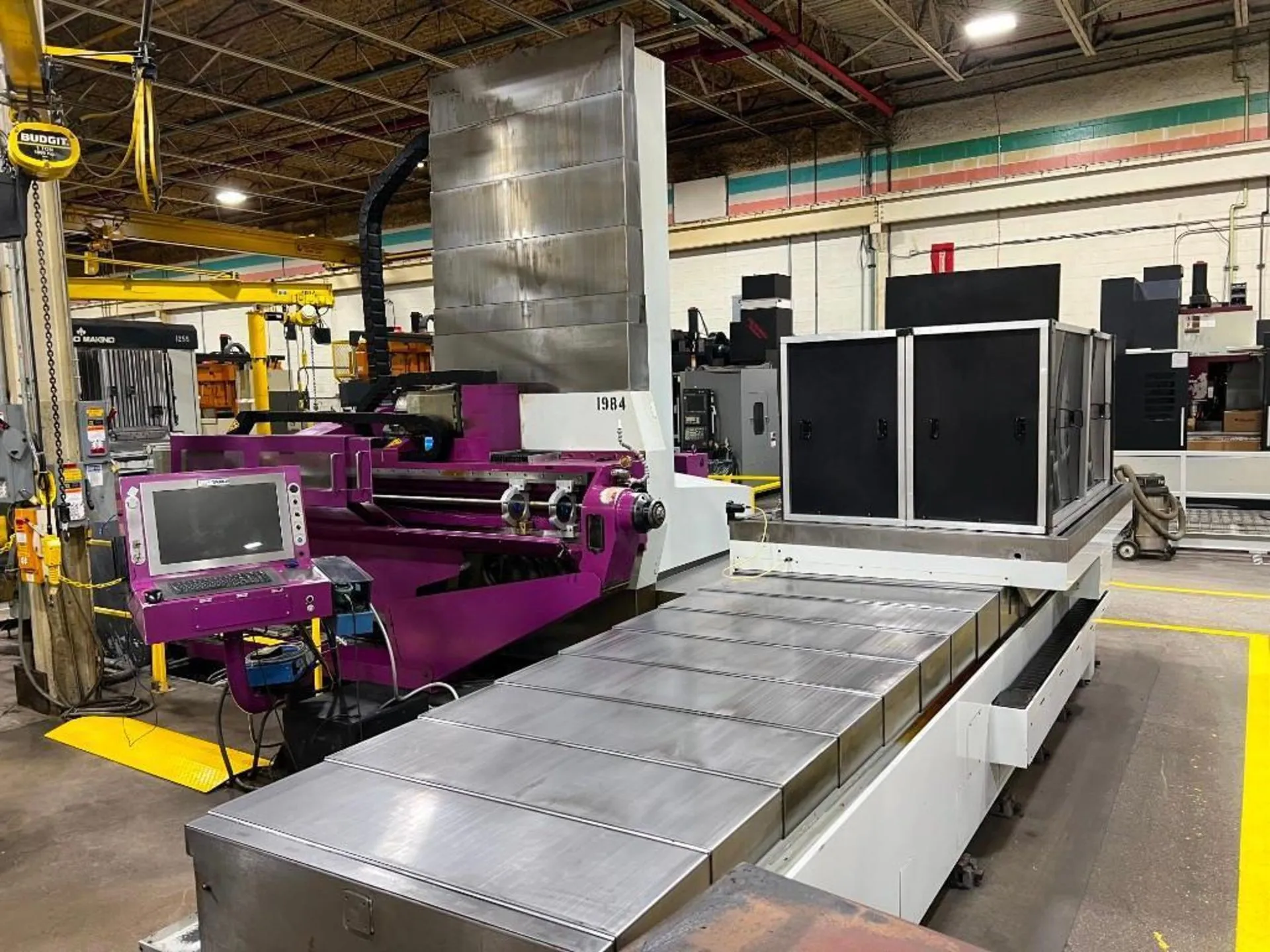

USED 2013 TARUS TPTCGD508SB

2" x 84" TARUS "TPTCGD508SB" 4-AXIS HEAVY-DUTY CNC GUN DRILL

Installed New 2013, Serial No TPTCGD2886080423, Model TPTCGD508SB

2" x 84" TARUS "TPTCGD508SB" 4-AXIS HEAVY-DUTY CNC GUN DRILL
Installed New 2013, Serial No TPTCGD2886080423, Model TPTCGD508SB

EQUIPPED WITH:
TPI-2000 PC Based CNC Control (Control S/N TPTCGDCNC2886423)
Auxiliary Spindle For Milling, Thread Milling, Tapping, Counter Boring
& Spot Facing
22.5" x 38" Tecnomagnete Electro-Magnetic Chuck w/Controls
Handheld Remote Pendant Controller
Telaflex Way Covers
Tarus High-Pressure Coolant System
Wardcraft Chip Conveyor (Model SHSBB1600-T3, S/N 46105-001)

CATALOG SPECIFICATIONS:
Gun Drilling Diameter, Maximum 2"
Drilling Diameter, Minimum 0.125"
BTA/STS Drillling Diameter, No Pilot 7.5"
BTS/STS Drilling Diameter, w/Pilot 2.22"
Table Dimensions, L x W 96" x 62"
Table Weight Capacity, Maximum 30000 LBS
Table Travel (X-Axis) 106"
Vertical Head Travel (Y-Axis) 60"
Column Travel In/Out (Z-Axis) 46"
Drill Stroke No Whip Guides, (W-Axis) 93"
Drill Stroke w/(3) Whip Guides (W-Axis) 81.4"
Main Spindle Speeds, Range 0 to 3394 RPM
Auxiliary Spindle Speeds, Range 0 to 3500 RPM
Auxiliary Spindle Taper CAT 50
Auxiliary Spindle Stroke (In/Out) 10"
Main Spindle Horsepower 29.5 HP (22KW)
Auxiliary Spindle Horsepower 29.5 HP (22KW)

NOTE: The Primary Function Of The Tarus Gundrill Is To Drill Holes In Steel
Molds. These Hole Types Can Vary From Coolant Line, Flow Lines, Eye-Bolt
Holes And Clearance Holes. Tarus Gundrills Can Use Both Standard
Gundrills And Single Tube Tooling (BTA/STS Drills). Drilling Up To 2"
Diameter With Gundrills And 1.5" With Single Tube Tooling. This Machine
Is Also Equipped With An Auxiliary Spindle With It's Own Spindle Motor
And A Cat 50 Taper. This Spindle Is Used For General Milling, Tapping,
Spot Facing, Counter Boring, Thread Milling And Conventional Drilling.

NOTE: Foundation Drawings & Machine Layout Available At Request.
F.O.B. OUR WAREHOUSE
