USED ADDISON MCKEE FM-150RF
Overview
Description

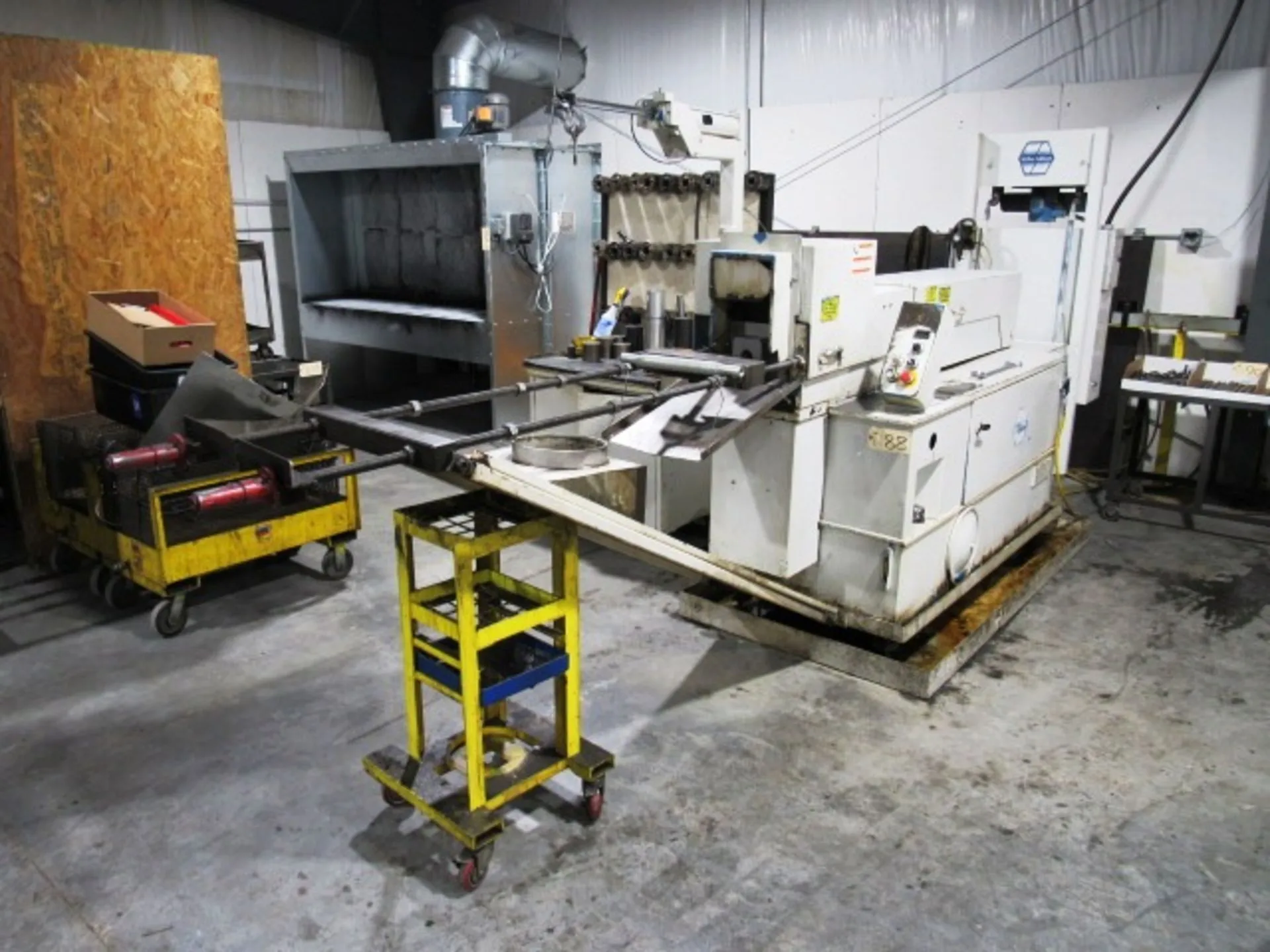

6" ADDISON MCKEE "FORMASTER" HYDRAULIC TUBE END FORMER
Serial No J016109, Model FM-150RF, Series Formaster
Specifications
| Max Diameter | 6" | 152.4 mm |
|---|---|---|
| Dimensions | 76x36x54 | 76x36x54 |
6" ADDISON MCKEE "FORMASTER" HYDRAULIC TUBE END FORMER
Serial No J016109, Model FM-150RF, Series Formaster
EQUIPPED WITH:
6' Feed System
Pneumatic Tool Lift Device
Fan Powered Hydraulic Oil Cooler
Automatic Lubrication System
Rexroth Servo Valves
Cabinet w/Nice Selection Of Tooling
CATALOG SPECIFICATIONS:
Tube Diameter, Maximum 6" 150 MM
Ram Stroke 12"
Operating Pressure 1500 PSI
Hydraulic Unit Horsepower 15 HP
Hydraulic Reservoir Capacity 100 GALLONS
Floor Space Required, L x W 76" x 36"
Overall Height 54"
NOTE: This Machine Is Capable Of Various Forming Processes Such As Expanding,
Reducing, Beading, Flaring, And Flanging. Replacement Price Is Over $81,000.00.
F.O.B. OUR WAREHOUSE
