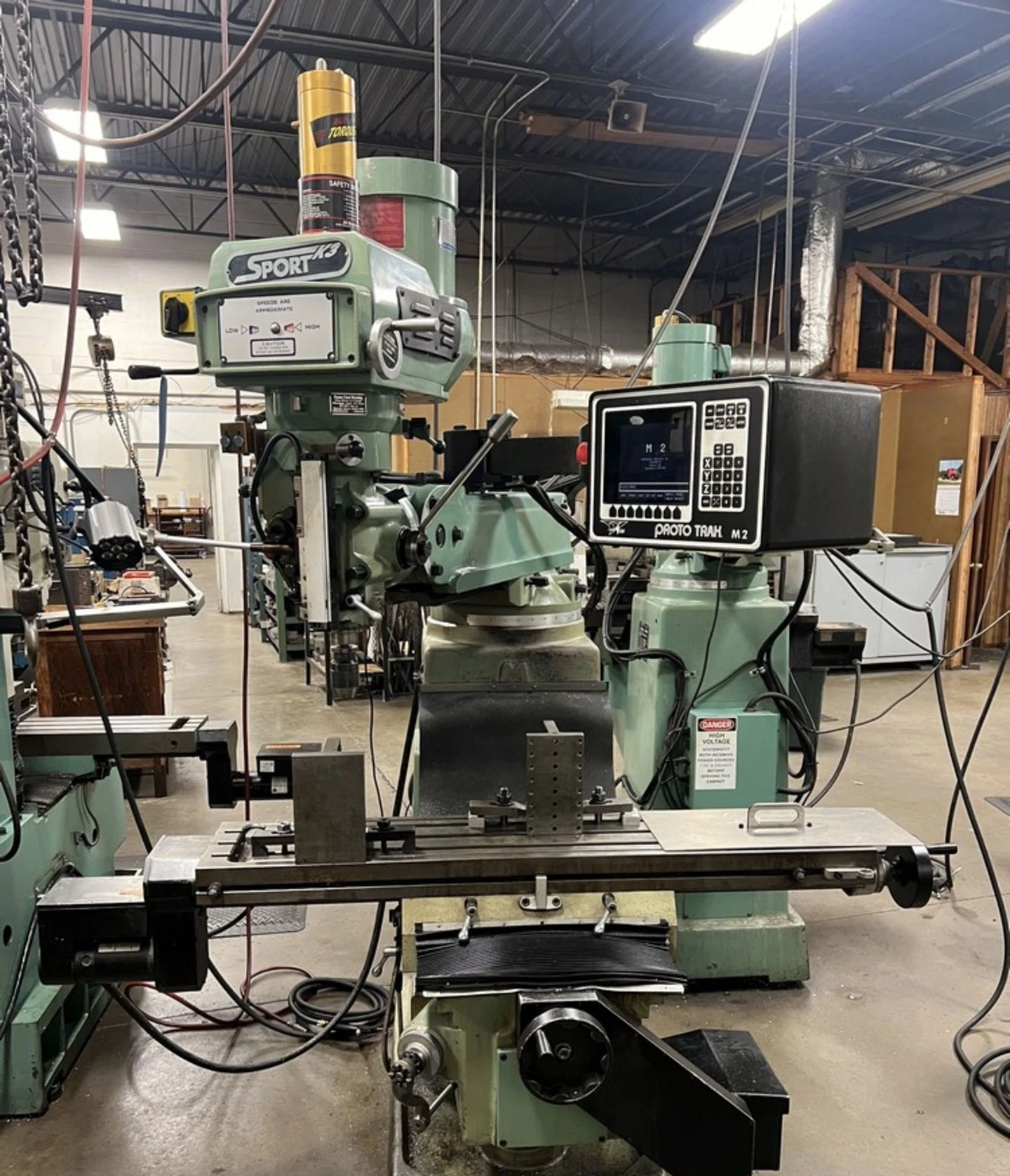

USED 2012 SWI SOUTHWESTERN INDUSTRIES SPORT K3
Overview
Description
3 HP SWI (SOUTHWESTERN INDUSTRIES) "SPORT K3"
CNC VERTICAL MILL W/PROTOTRAK M2
Updated 2012, Serial No 00-0758, Model Sport K3
Specifications
| X | 31" | 787.4 mm |
|---|---|---|
| Y | 17" | 431.8 mm |
| Z | 25" | 635 mm |
| Power | 3 hp | 2.2 kW |
| RPM | 4,200 RPM | 4,200 RPM |
| Taper | R8 | R8 |
| Table-W | 10" | 254 mm |
| Table-L | 50" | 1,270 mm |
| Weight | 2800 | 2800 |
3 HP SWI (SOUTHWESTERN INDUSTRIES) "SPORT K3"
CNC VERTICAL MILL W/PROTOTRAK M2
Updated 2012, Serial No 00-0758, Model Sport K3
EQUIPPED WITH:
ProtoTrak M2 CNC Control (Updated 2012)
3 HP Variable Speed Head
Torque-Rite Power Draw Bar
Hardened And Ground Ways
Auto Lube System
CATALOG SPECIFICATIONS:
Table Dimensions (Overall), W x L 10" x 50"
Table Working Surface, W x L 10" x 50"
Table Weight Capacity, Maximum 1320 LBS
Table Longitudinal Travel (X-Axis) 31"
Saddle Cross Travel (Y-Axis) 17"
Vertical Travel (Z-Axis) 25"
Quill Vertical Travel 5"
Spindle To Column 17.3"
Spindle to Table, Range 0 to 25"
Drilling Capacity, Mild Steel 1-1/4"
Tapping Capacity, Mild Steel 1-1/4"
Milling Capacity 3 INCH3/MIN
Boring Capacity, Mild Steel 4-3/4"
Head Swivel, Range +/- 90-DEGREES
Spindle Taper R8
Spindle Speeds, Range 70 to 4200 RPM
Spindle Feeds, Range .002 to .006 IPR
Spindle Motor, Horsepower Rating 3 HP
Weight Approximately 2800 LBS
NOTE: Tooling On Table Is Not Included With This Machine.
F.O.B. OUR WAREHOUSE
