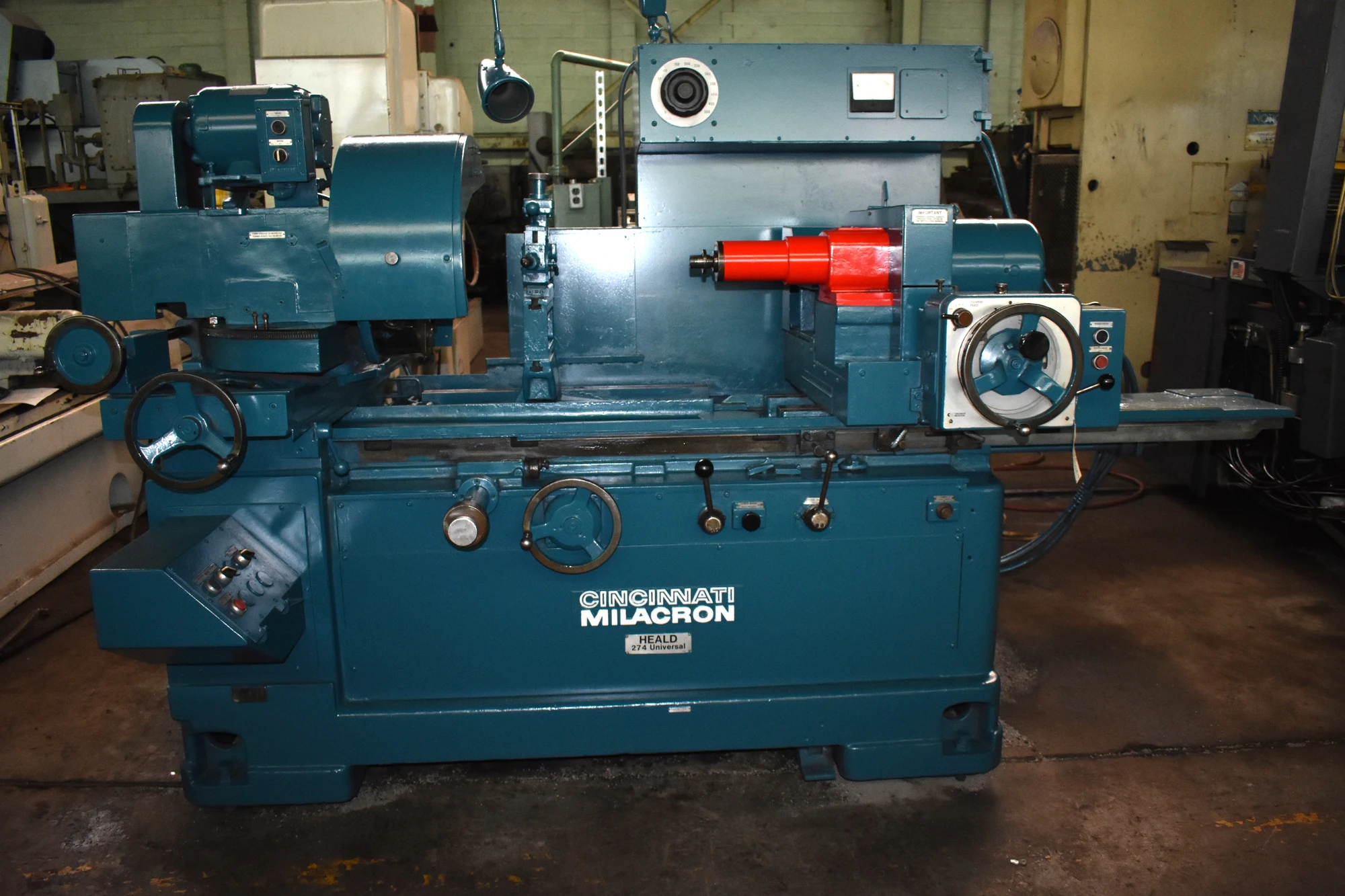

#274 CINCINNATI-MILACRON/HEALD "UNIVERSAL" INTERNAL GRINDER
Serial No 47195, Model 274, Series "UNIVERSAL"
| Swing | 30" | 762 mm |
| Max Grinding Bore | 21.75" | 552.45 mm |
| Travel-Long | 30.25" | 768.35 mm |
| Workhead Swivel | 90 | 90 |
| Workhead Speed | 40 RPM | 40 RPM |
| Dresser | Yes | Yes |
| Dimensions | 123 x 101 | 123 x 101 |
| Weight | 8850 | 8850 |
#274 CINCINNATI-MILACRON/HEALD "UNIVERSAL" INTERNAL GRINDER
Serial No 47195, Model 274, Series "UNIVERSAL"
EQUIPPED WITH:
Long Base
Heald "Red-Head" Grinding Spindle
Wheel Dresser
18" 4-Jaw Chuck w/Jaws
CATALOG SPECIFICATIONS:
Swing Over Table, Maximum 30"
Swing Over Workhead Slide-Head, 90-Degree 20"
Bore Diameter Ground, Maximum 21.75"
Bore Length Ground, Maximum 14"
Table Longitudinal Travel 30.25"
Workhead Cross-Slide Travel, Front 6"
Workhead Cross-Slide Travel, Rear 15"
Grinding Angle, Maximum Included 9-DEGREES
Workhead Swivel Angle, Maximum 90-DEGREES
Workhead Spindle Speeds, Range 40 TO 350 RPM
Grinding Table Speeds, Infinite 0 TO 15 FPM
Center Of Chuck Spindle From Floor 48"
Workhead Spindle Flange, Diameter 9.625"
Power Rapid Table Traverse 35 FPM
Floor Space, L x W 123" x 101"
Weight, Approximately 8850 LBS
NOTE: This Machine Is A Long-Base Internal Grinder With Wide Angular
Capacity, Broad Application Versatility, Speed, Ease Of Operation
And Efficiency.
F.O.B. OUR WAREHOUSE
