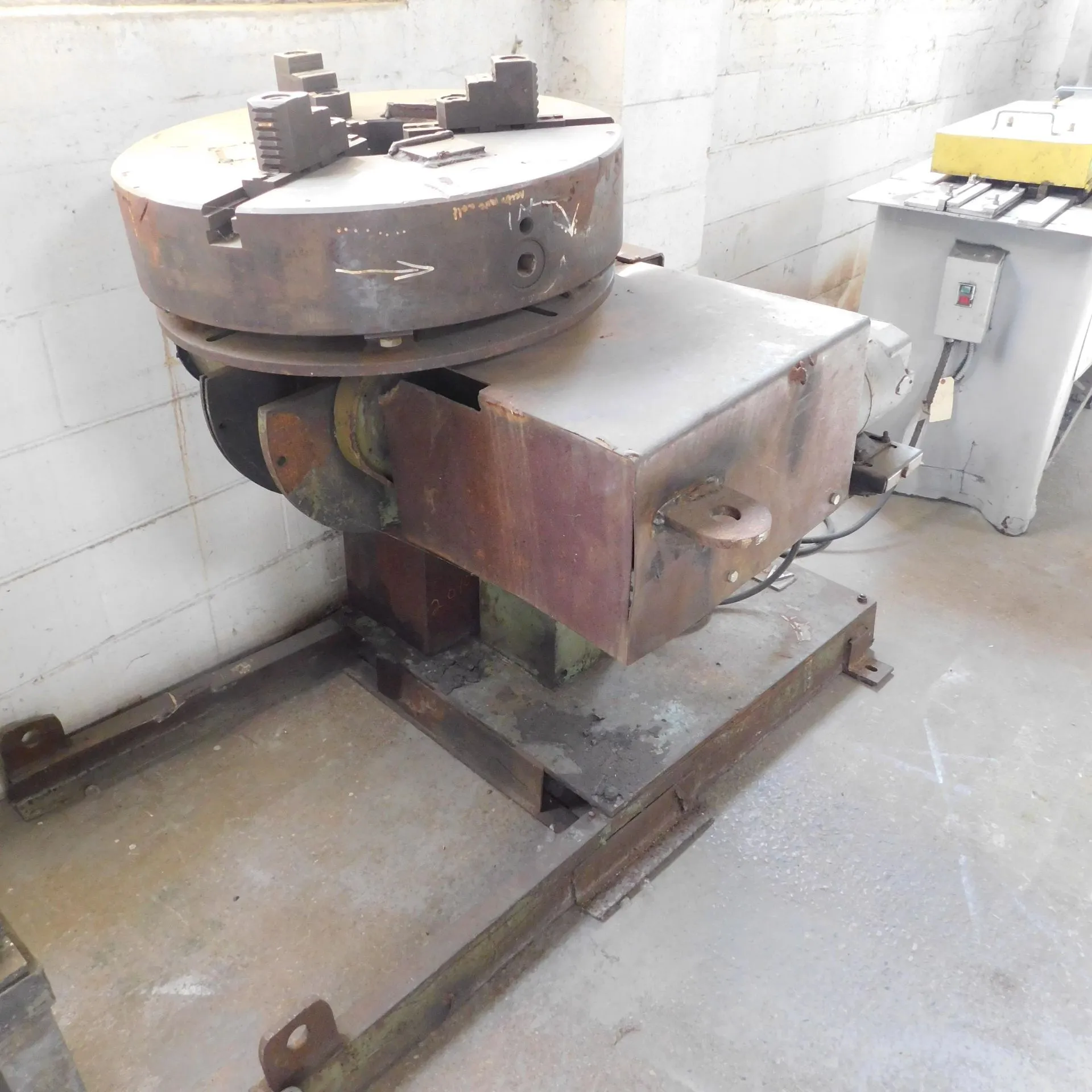

USED ARONSON D5

1000 LB ARONSON WELDING POSITIONER
Model D5

EQUIPPED WITH:
360-Degree Power Rotation
135-Degree Manual Tilt
24" T-Slotted Rotary Table
24" 3-Jaw Chuck w/Jaws
Manual Adjustable Table Elevation

CATALOGUE SPECIFICATIONS:
Table Diameter 24"
Table Weight at 4" Eccentricity 1000 LBS
Table Weight at 6" Eccentricity 825 LBS
Table Weight at 12" Eccentricity 545 LBS
Table Weight at 18" Eccentricity 400 LBS
Table Weight at 24" Eccentricity 320 LBS
Table Weight at 30" Eccentricity 260 LBS
Table Weight at 36" Eccentricity 200 LBS
Table Height, Minimum 18"
Table Height, Maximum 32"
Table Rotation, Degrees 360-DEGREES
Table Tilt, Degrees 135-DEGREES
Rotation Torque, Inch Pounds 4000 LBS
F.O.B. OUR WAREHOUSE
