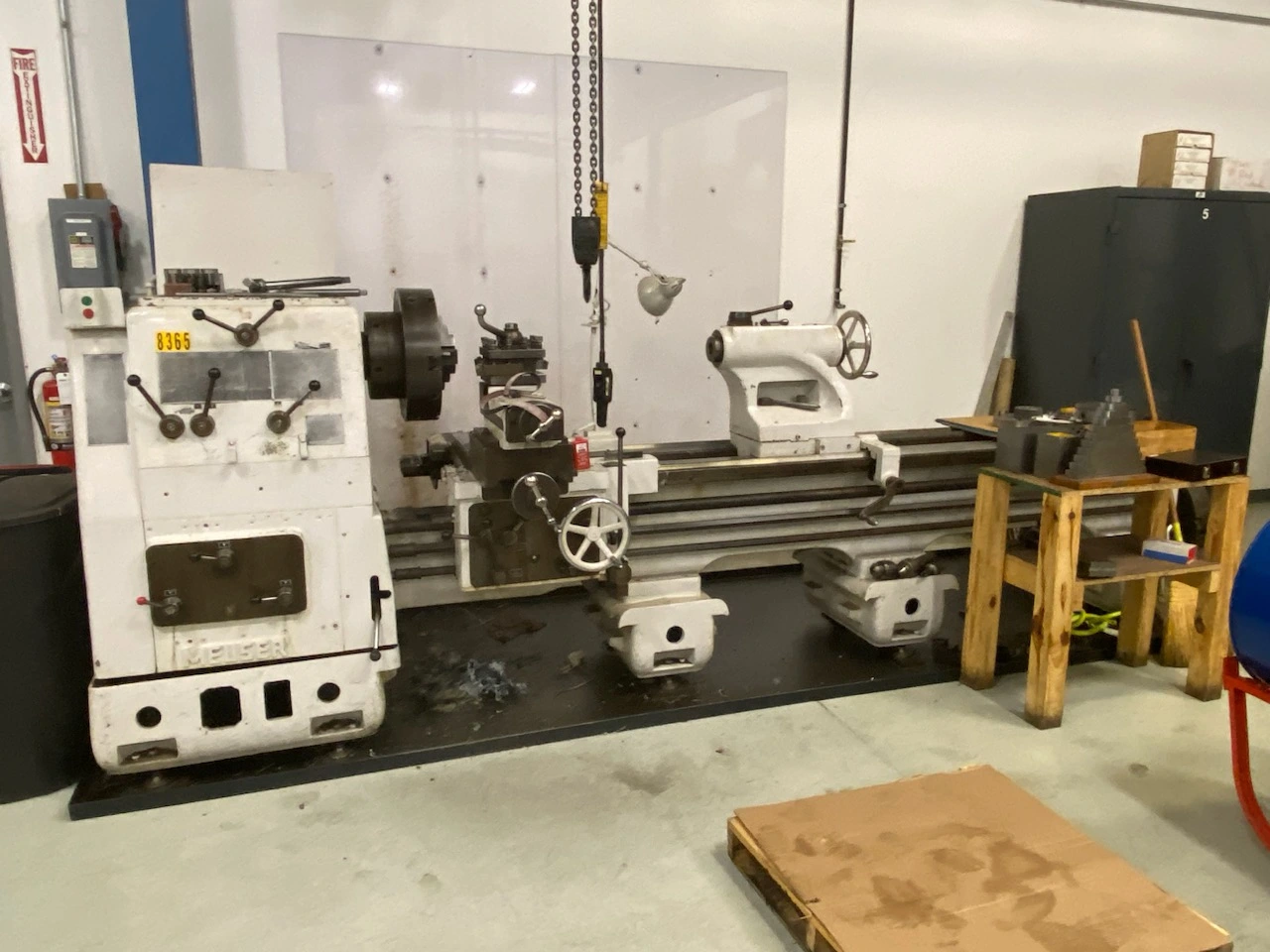

32"/45" x 100" MEUSER GAP-TYPE LATHE w/TAPER ATTACHMENT
Serial No M4L-38365, Type L
| Swing | 32" | 812.8 mm |
| Centers | 100" | 2,540 mm |
| Spindle Bore | 3" | 76.2 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 900 RPM | 900 RPM |
| Swing Over Cross Slide | 23.75" | 603.25 mm |
| Weight | 12700 | 12700 |
32"/45" x 100" MEUSER GAP-TYPE LATHE w/TAPER ATTACHMENT
Serial No M4L-38365, Type L
EQUIPPED WITH:
Taper Attachment
Threading (Inch-Metric Full-Length Lead Screw)
18" 3-Jaw Chuck w/Jaws - 4-Way Tool Post
Hardened & Ground Bed Ways
Power Rapid Traverse (Inoperable)
Centers - Small Amount Of Tooling
CATALOG SPECIFICATIONS:
Hole Thru Spindle 3"
Swing Over Bed Ways, Rated 32"
Swing thru Gap 45"
Swing Over Cross-Slide 23.75"
Center Distance, Maximum 100"
Gap Length 16"
Gap Length, Front of Faceplate 11"
Cross-Slide Cross-Feed Travel 18.5"
Top-Slide Cross-Feed Travel 8"
Tailstock, Quill Diameter 5"
Tailstock, Spindle Travel 9.5"
Tailstock, Spindle Taper #6 MT
(12) Spindle Speeds, Range 10 to 900 RPM
(88) Carriage Longitudinal Feeds .00138 to .31496 IPR
(88) Cross-Slide Cross Feeds .00035 to .07874 IPR
(86) Thread Changes, Range 1/2 to 152 TPI
(60) Metric Thread Changes, Range .50 to 76 MM
(82) Diametral Pitch Changes, Range 1 to 176 DP
(35) Module Threads, Range .25 to 21
Motor Horsepower 20 HP
Electrical System 220-440/3/60
Weight, Approximately 12700 LBS
F.O.B. OUR WAREHOUSE
