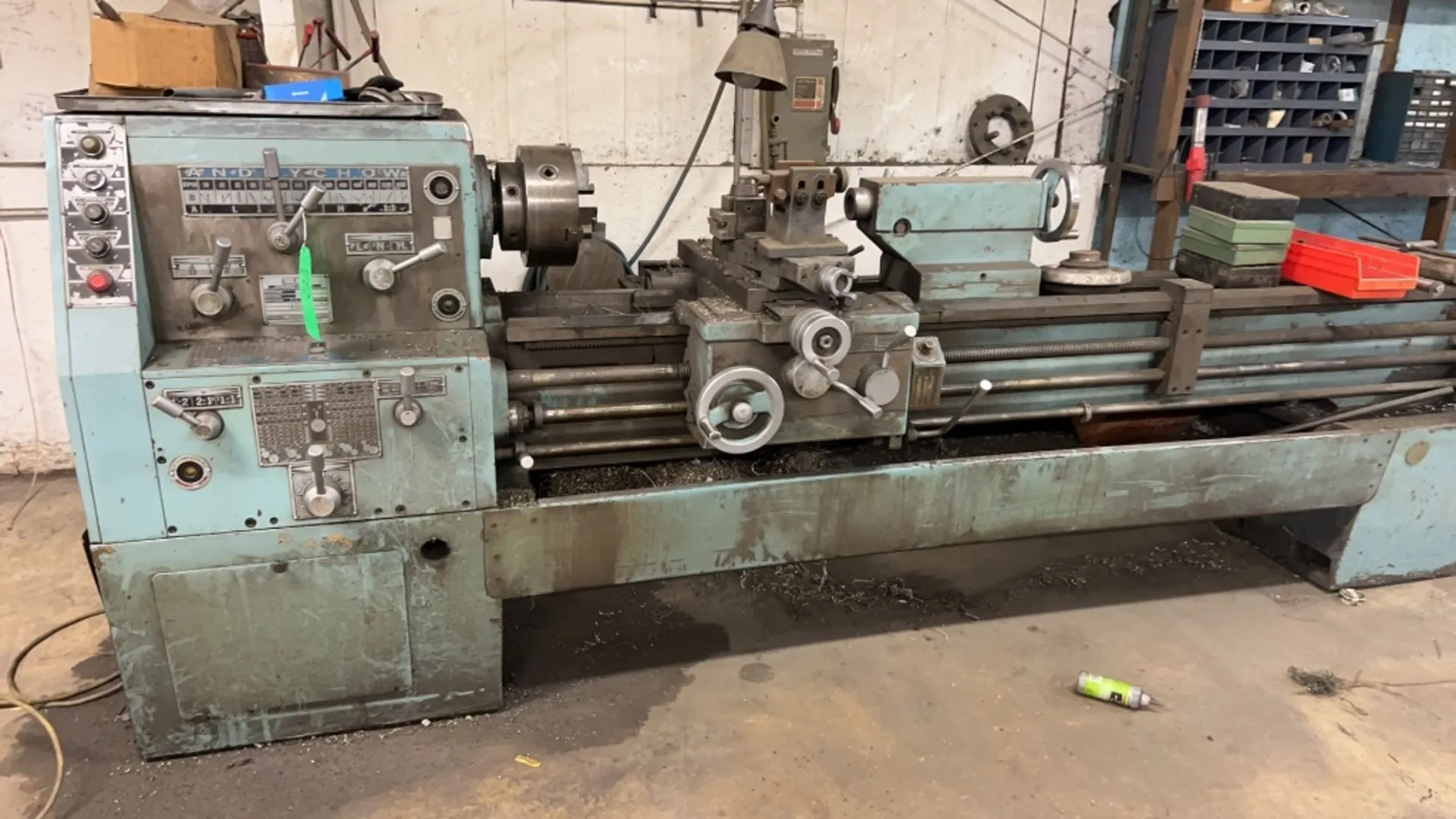

17/25" x 80" TOOLMEX/POLAMCO GEARED-HEAD
GAP-TYPE ENGINE LATHE w/TAPER ATTACHMENT
Serial No 5519, Model TUG-40, Series ANDRYCHOW
| Swing | 17.75" | 450.85 mm |
| Centers | 80" | 2,032 mm |
| Spindle Bore | 2.06" | 52.324 mm |
| Power | 7.5 hp | 5.6 kW |
| RPM | 1,600 RPM | 1,600 RPM |
| Swing Over Cross Slide | 10" | 254 mm |
| Dimensions | 144 x 41 | 144 x 41 |
| Weight | 6000 | 6000 |
17/25" x 80" TOOLMEX/POLAMCO GEARED-HEAD
GAP-TYPE ENGINE LATHE w/TAPER ATTACHMENT
Serial No 5519, Model TUG-40, Series ANDRYCHOW
EQUIPPED WITH:
Taper Attachment
Removeable Gap-Type Bed
Camlock D1-6 Spindle Nose
10" 3-Jaw Chuck w/Jaws
Tool Post - Hardened & Ground Bed Ways
Inch-Metric Threading
CATALOG SPECIFICATIONS:
Hole Thru Spindle 2.06"
Swing Over Bed Ways, Rated 17"
Swing Over Bed Ways, Actual 17.75"
Swing thru Gap 25.75"
Swing Over Carriage 10"
Distance Between Centers 80"
Carriage Cross Slide Travel 10.5"
Carriage Top Slide Travel 5"
Tailstock, Quill Diameter 3"
Tailstock, Quill Travel 7"
Tailstock, Spindle Taper #5 MT
(14) Spindle Speeds, Range 18 to 1600 RPM
(42) Carriage Longitudinal Feeds .0017 to .126 IPR
(42) Cross-Slide Cross Feeds .0008 to .063 IPR
(42) Inch Thread Changes, Range .75 to 56 TPI
(34) Metric Leads, Range .5 to 28 MM
(12) Module Threads, Range .5 to 3.5 M.P.
(21) D.P. Threads 8 to 56 DP
Main Drive Motor, Horsepower 7.5 HP
Overall Dimensions, L x W 144" x 41"
Overall Height 49"
Weight Approximately 6000 LBS
F.O.B. OUR WAREHOUSE
