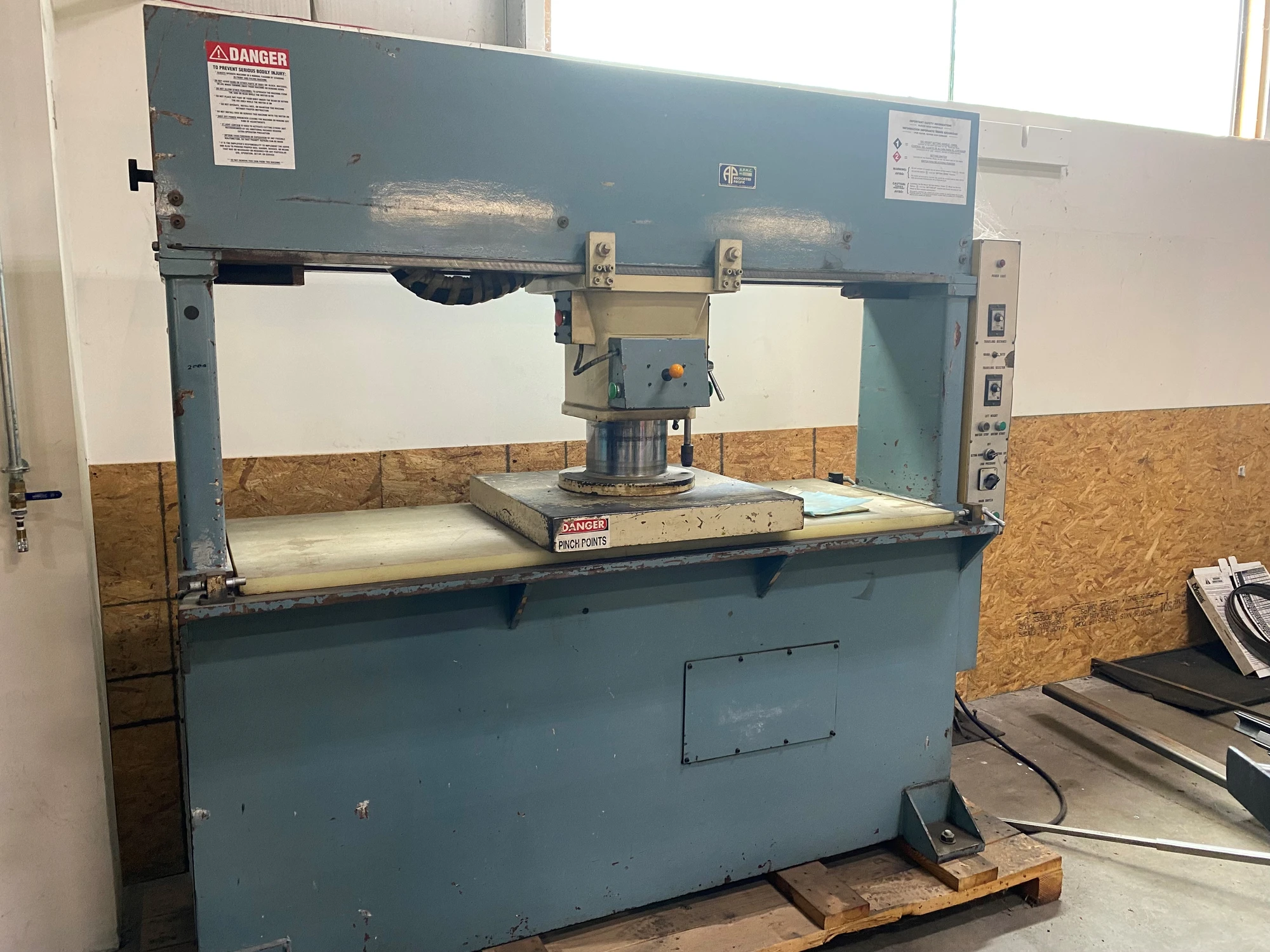

25 TON ASSOCIATED PACIFIC TRAVELING-HEAD
HYDRAULIC DIE-CUTTING/CLICKER PRESS
Serial No 02119, Model No THNC-2570
| Tonnage | 25 T | 22.68 t |
| Stroke | 5.11" | 129.79 mm |
| Dimensions | 87 x 70 x 80 | 87 x 70 x 80 |
| Weight | 4650 | 4650 |
25 TON ASSOCIATED PACIFIC TRAVELING-HEAD
HYDRAULIC DIE-CUTTING/CLICKER PRESS
Serial No 02119, Model No THNC-2570
EQUIPPED WITH:
Manual/Automatic Operation
Control Joystick
Vari-Speed Operation
CATALOG SPECIFICATIONS:
Cutting Pressure, Maximum .......... 25 TON
Cutting Head Size, L x W .......... 25.5" x 25.5"
Cutting Working Surface, L x W .......... 68.8" x 25.5"
Cutting Stroke, Maximum .......... 5.11"
Daylight, Maximum .......... 6.1"
Daylight, Minimum .......... .984"
Downstroke Speed .......... 3.94 IPS
Upstroke Speed .......... 5.5 IPS
Traverse Speed .......... 27.5 IPS
Motor Horsepower .......... 3 HP
Overall Dimensions, L x W .......... 87" x 70"
Overall Height .......... 80"
Weight Approximately .......... 4650 LBS
F.O.B. OUR WAREHOUSE
