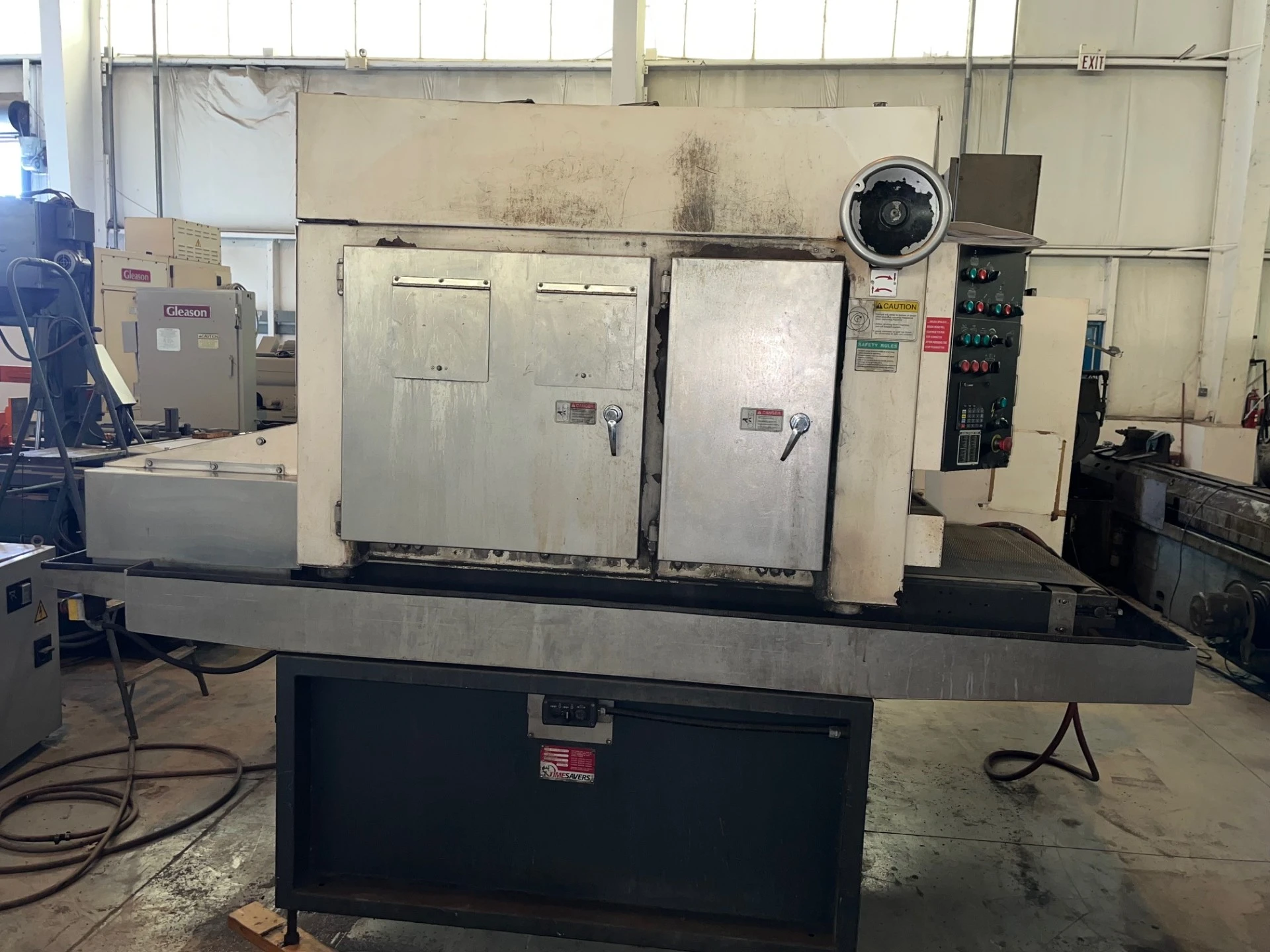

USED 2013 TIMESAVERS LYNX 37-MWT-DBB-60

37" TIMESAVERS "LYNX 37MWT-DBB-60" THREE-HEAD WET-DRY
ABRASIVE BELT FLAT PART DEBURRING/FINISHING SANDER
New 2013, Serial No 32403, Model 37MWT-DBB-60,
Mfgr No 131878MD, Series "Lynx"

EQUIPPED WITH:
Drum Head Followed By (2) Brush Heads Configuration
(2) 6" Diameter Adjustable Brush Heads
(1) 6" Diameter Adjustable Contact Drum Head
Digital Thickness Readout - 23" Infeed Loading Area
Double Infeed & Outfeed Holddown Rolls
Through Beam Abrasive Belt Tracking - Motorized Lift
Built-In Air Knife Part Dryer - Infeed Stop Bar
Quick Release Outboard Support
Hour Meter - (2) Main Load Meters
Automatic Lube System
PFA Timesavers Coolant/Filtration System (S/N SN32403)
Stainless Steel Construction (Where Needed)

CATALOG SPECIFICATIONS:
Abrasive Belt Width, Maximum 37"
Abrasive Belt Length 60"
Part Width, Maximum 36"
Part Thickness, Minimum 0"
Part Thickness, Maximum 8"
Part Length, Minimum 8"
Pass Height , Constant 38"
Drum Head Speed 2900 SFPM
Brush Heads Speed 4000 SFPM
Conveyor Belt In-Feeds, Range 15 to 45 FPM
Drum Motor, Horsepower 20 HP
Brush Motors, Horsepower 15 HP EACH
Electrical System 230-460/3/60
Weight Approximately 7800 LBS
F.O.B. OUR WAREHOUSE
