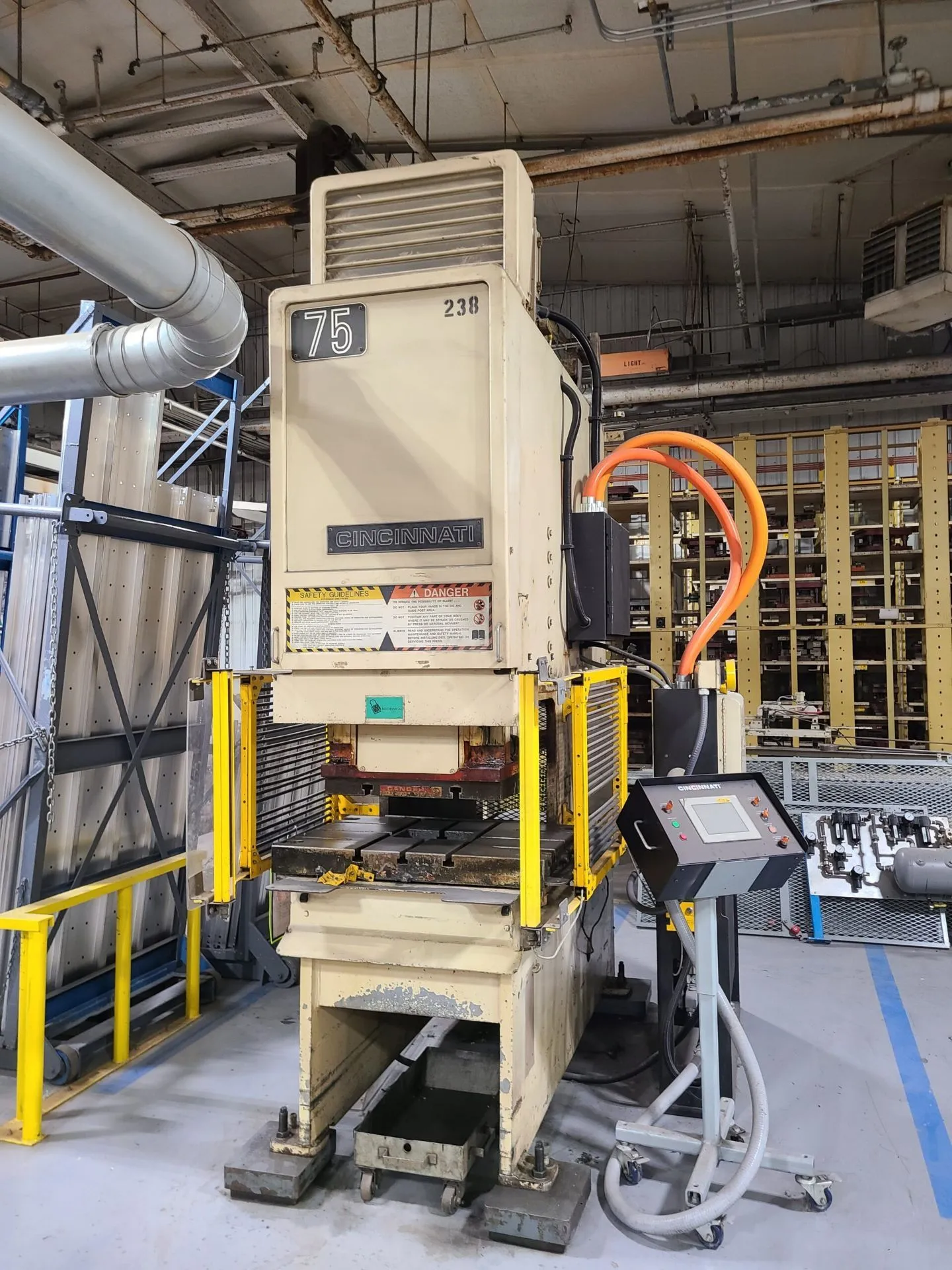

USED 2021 CINCINNATI INC 75 OBS

75 TON CINCINNATI-INC CNC OPEN-BACK GAP-FRAME HYDRAULIC PRESS

Updated 2021, Serial No 43017, Model 75 OBS,

75 TON CINCINNATI-INC CNC OPEN-BACK GAP-FRAME HYDRAULIC PRESS
Updated 2021, Serial No 43017, Model 75 OBS,

EQUIPPED WITH:
Cincinnati-Inc Touch-Screen Control w/Stand & Casters (Updated 2021)
2.5" Thick T-Slotted Slide Bolster
3.5" Thick T-Slotted Bed Bolster
Slide Mounted Knockout

CATALOG SPECIFICATIONS:
Tonnage Capacity, Low Speed 75 TON
Tonnage Capacity, Medium Speed 42 TON
Stroke Length, Adjustable to 8"
Gap Length 14"
Open Height, Maximum 18.5"
Closed Height, Minimum 10.5"
Slide Bolster Area, L-R x F-B 24" x 18"
Bed Bolster Area, L-R x F-B 36" x 24"
Distance Between Housings 25"
Slide Speed, Pressing (High) 600 IPM
Slide Speed, Pressing (Medium) 175 IPM
Slide Speed, Pressing (Low) 60 IPM
Slide Speed, Return (High) 700 IPM
Slide Speed, Return (Low) 450 IPM
Hydraulic Motor, Horsepower 20 HP
Weight, Approximately 17500 LBS

NOTE: This Machine Was Updated By Cincinnati-Inc With A Brand New
Touch-Screen Controller w/Stand And Casters In 2021.
F.O.B. OUR WAREHOUSE
