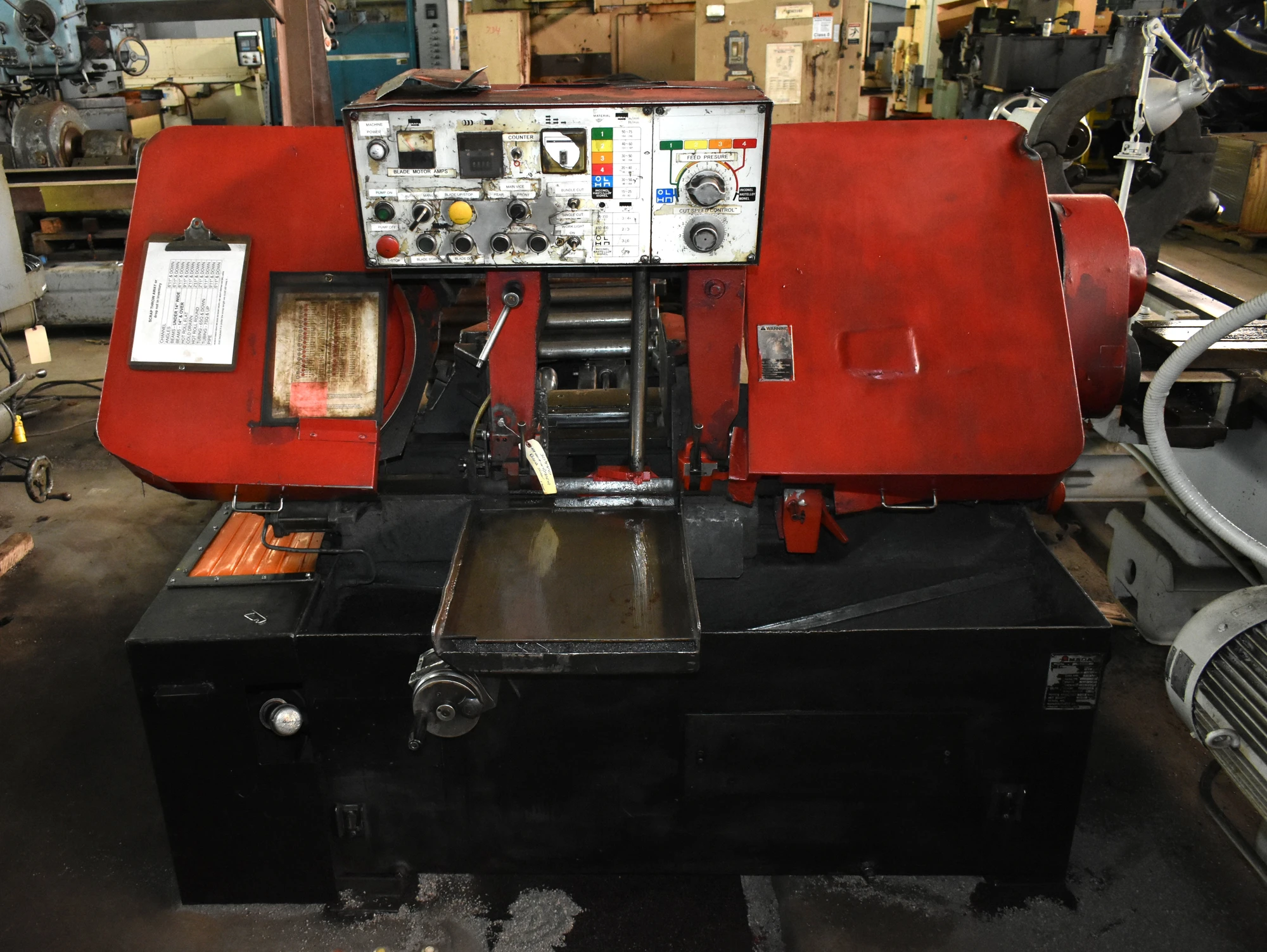

16" x 16" AMADA AUTOMATIC HORIZONTAL BAND SAW
New 1997, Serial No 45650046, Model HA-400W
| Rect-Cap (H) | 16" | 406.4 mm |
| Rect-Cap (W) | 16" | 406.4 mm |
| Rounds-Cap | 16" | 406.4 mm |
| Square-Cap | 16" | 406.4 mm |
| Power | 7.5 hp | 5.6 kW |
| Type (Auto, Manual, Semi) | 'Auto' | 'Auto' |
| Blade Width | 1.5" | 38.1 mm |
| Blade Thickness | 0.05" | 1.27 mm |
| Blade Length | 180" | 4,572 mm |
| Weight | 4400 | 4400 |
16" x 16" AMADA AUTOMATIC HORIZONTAL BAND SAW
New 1997, Serial No 45650046, Model HA-400W
EQUIPPED WITH:
Hydraulic-Driven Stock-Feed Table ((9) Times Feed)
Hydraulic Band Saw Up-Feed and Down-Feed
CATALOG SPECIFICATIONS:
Round Stock Capacity, Maximum 16"
Square Stock Capacity, Maximum 16" x 16"
Rectangular Stock Capacity, Maximum 16" x 16"
Work Load Capacity 5511 LBS
Band Length 180" (15')
Band Width 1.5"
Band Thickness .050"
Band Speeds, Variable 50 to 295 FPM
Table Height 27.6"
Motor, Horsepower 7.5 HP
Hydraulic Motor, Horsepower 2 HP
Weight, Approximately 4400 LBS
F.O.B. OUR WAREHOUSE
