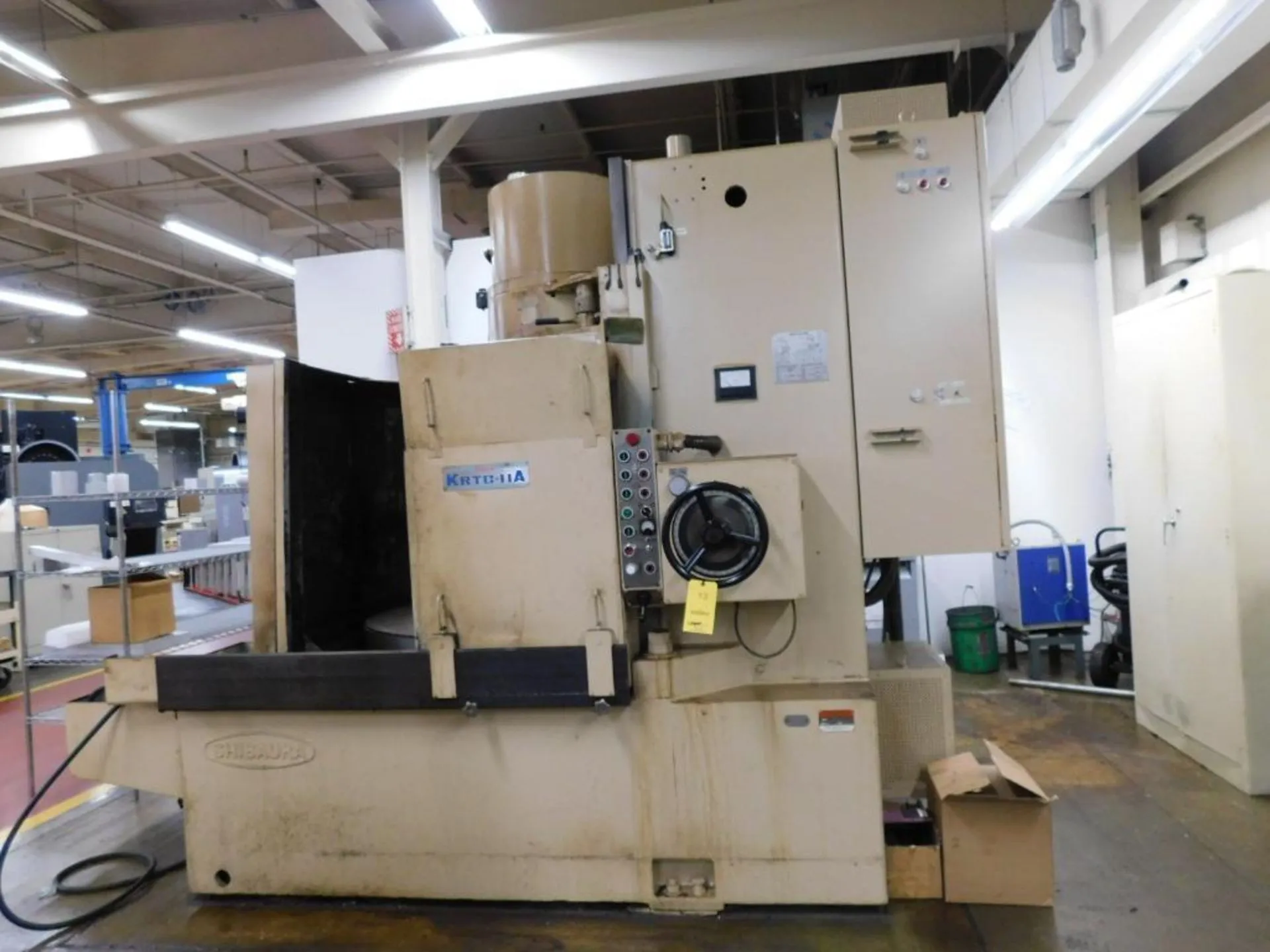

42.5/45" TOSHIBA/SHIBAURA VERTICAL-SPINDLE
ROTARY SURFACE GRINDER
New 1982, Serial No 652029, Model KRTC-11A
| Chuck Size | 42.5" | 1,079.5 mm |
| Horz/Vert | Vert | Vert |
| Power | 50 hp | 37.3 kW |
| Swing | 45" | 1,143 mm |
| Under Wheel | 23.6" | 599.44 mm |
| Grinding Wheel Dia. | 22" | 558.8 mm |
| Dimensions | 65 x 125 | 65 x 125 |
| Weight | 15000 | 15000 |
42.5/45" TOSHIBA/SHIBAURA VERTICAL-SPINDLE
ROTARY SURFACE GRINDER
New 1982, Serial No 652029, Model KRTC-11A
EQUIPPED WITH:
Vertical-Spindle Machine Design
42.5" Diameter Magnetic Chuck w/Neutrofier
22" Segmented Grinding Wheel
Ammeter For Wheel Motor
Automatic Lube System
Coolant System w/Seperator
CATALOG SPECIFICATIONS:
Magnetic Chuck, Diameter 42.5"
Swing Between Coolant-Guards 45"
Work Height Under Wheel, Maximum 23.6"
Grinding Wheel Diameter, Maximum 22"
Wheel Head Feed Variable, Range .004 TO .12 IPM
Table Speeds Variable, Range 6 TO 22 RPM
Spindle Motor, Horsepower 50 HP
Table Rotation Motor, Horsepower 3/1.5 HP
Table Feed Motor, Horsepower 1 HP
Floor Space Required, L x W 65" x 125"
Overall Height 97"
Weight, Approximately 15000 LBS
F.O.B. OUR WAREHOUSE
